Dual-Band Wi‑Fi 6 Speeds
Harnessing 2×2 MU‑MIMO, it provides 574 Mbps on 2.4 GHz and 1,201 Mbps on 5 GHz for a total of 1.775 Gbps. -
Ultra-Durable & Weatherproof
Designed for the outdoors with IP68, complete sealing, flame-retardant housing, lightning and wind resistance, and operational range from –30 °C to +65 °C. -
Dual Gigabit Connectivity
Dual 10/100/1000 Mbps Ethernet ports (one supports PoE+, the other for LAN or pass-through) plus support for PoE-in and DC power backup. -
Scalable Mesh & Intelligent Roaming
Reyee Mesh technology enables cable-free expansion; smart AI roaming with 802.11k/v for seamless client handoff. -
Extended Coverage with Built-In Antennas
Features four omni-directional antennas offering coverage up to 100 m on 2.4 GHz and 300 m on 5 GHz. -
Supports High-Density Use
Capable of serving up to 512 concurrent clients, with 100 devices recommended for optimal performance.

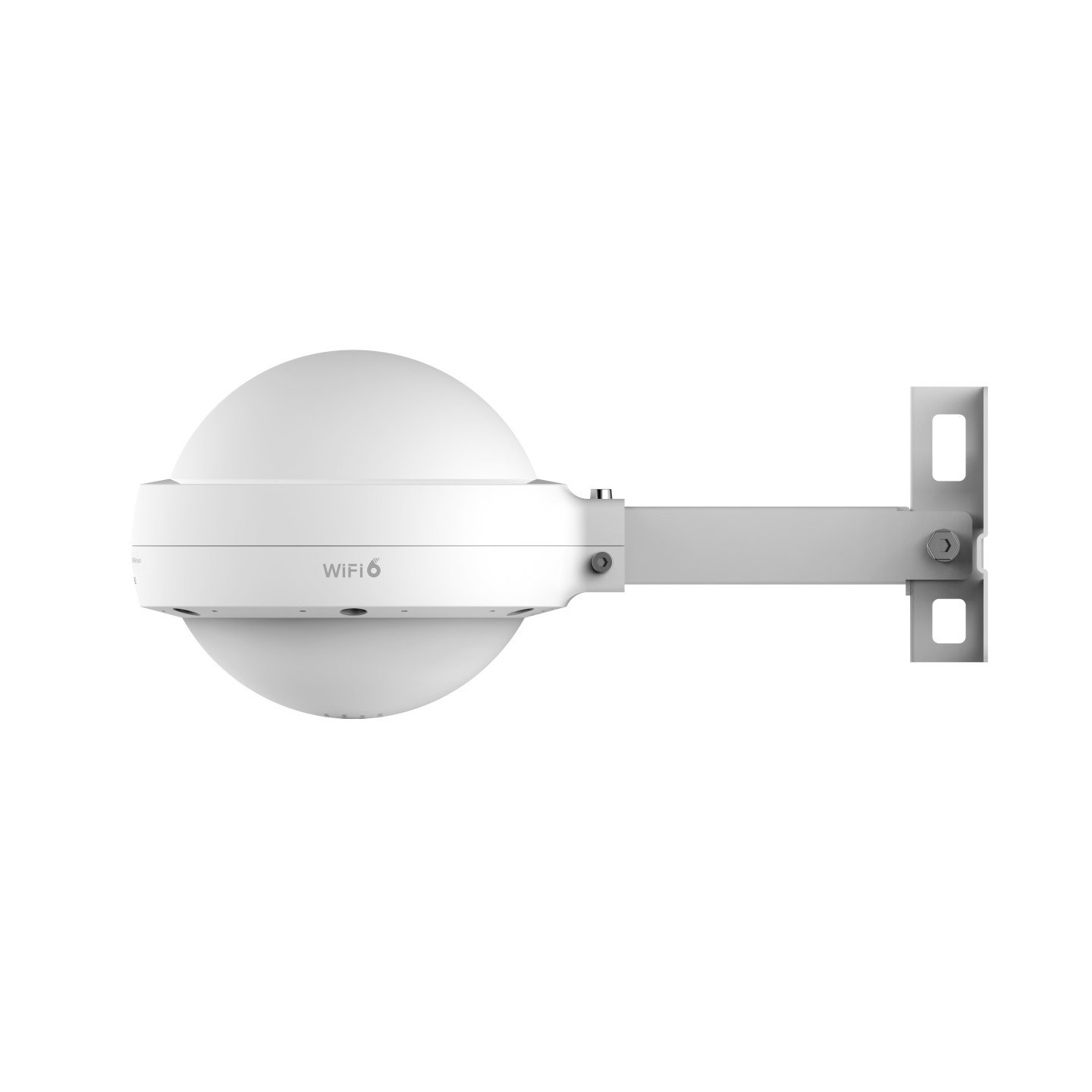

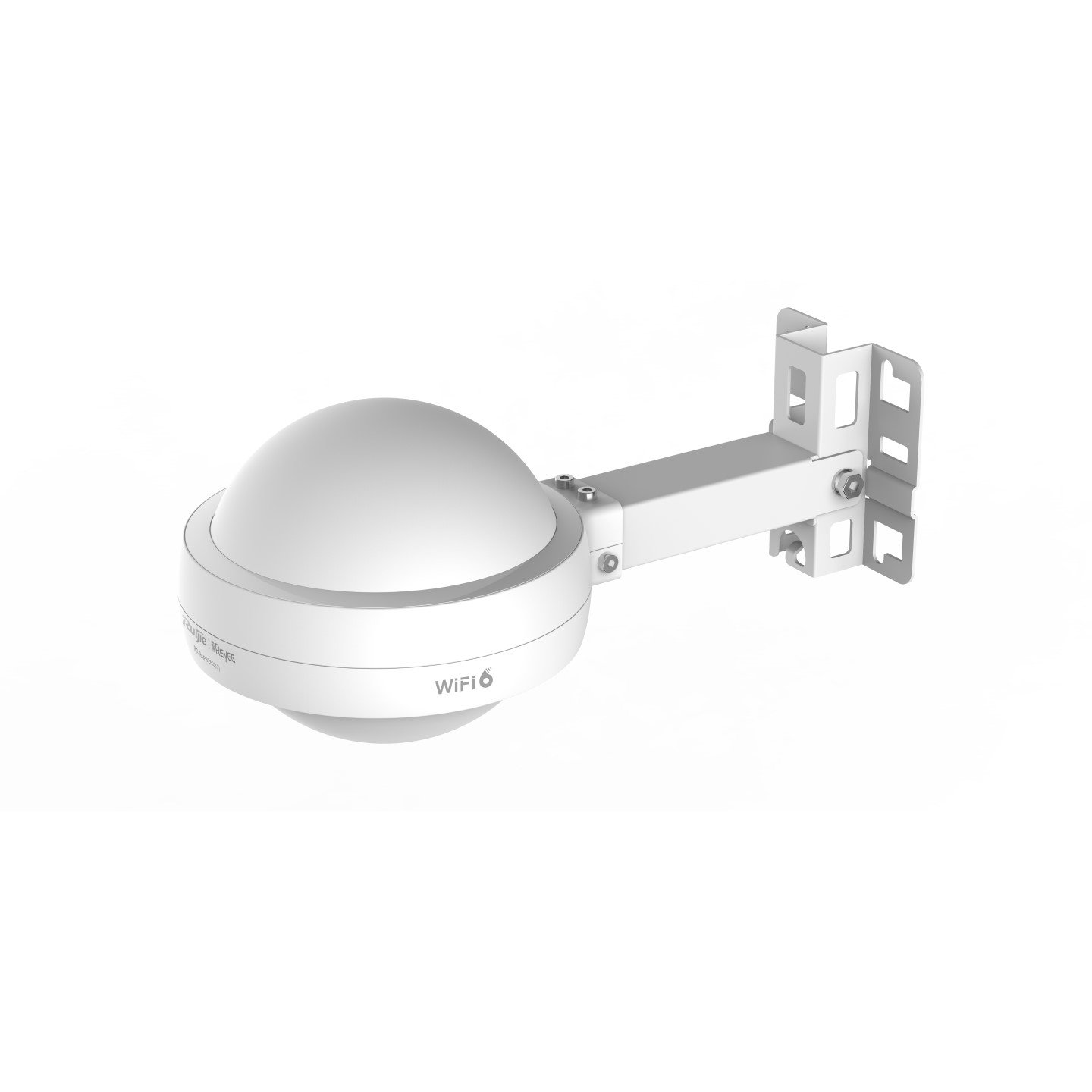

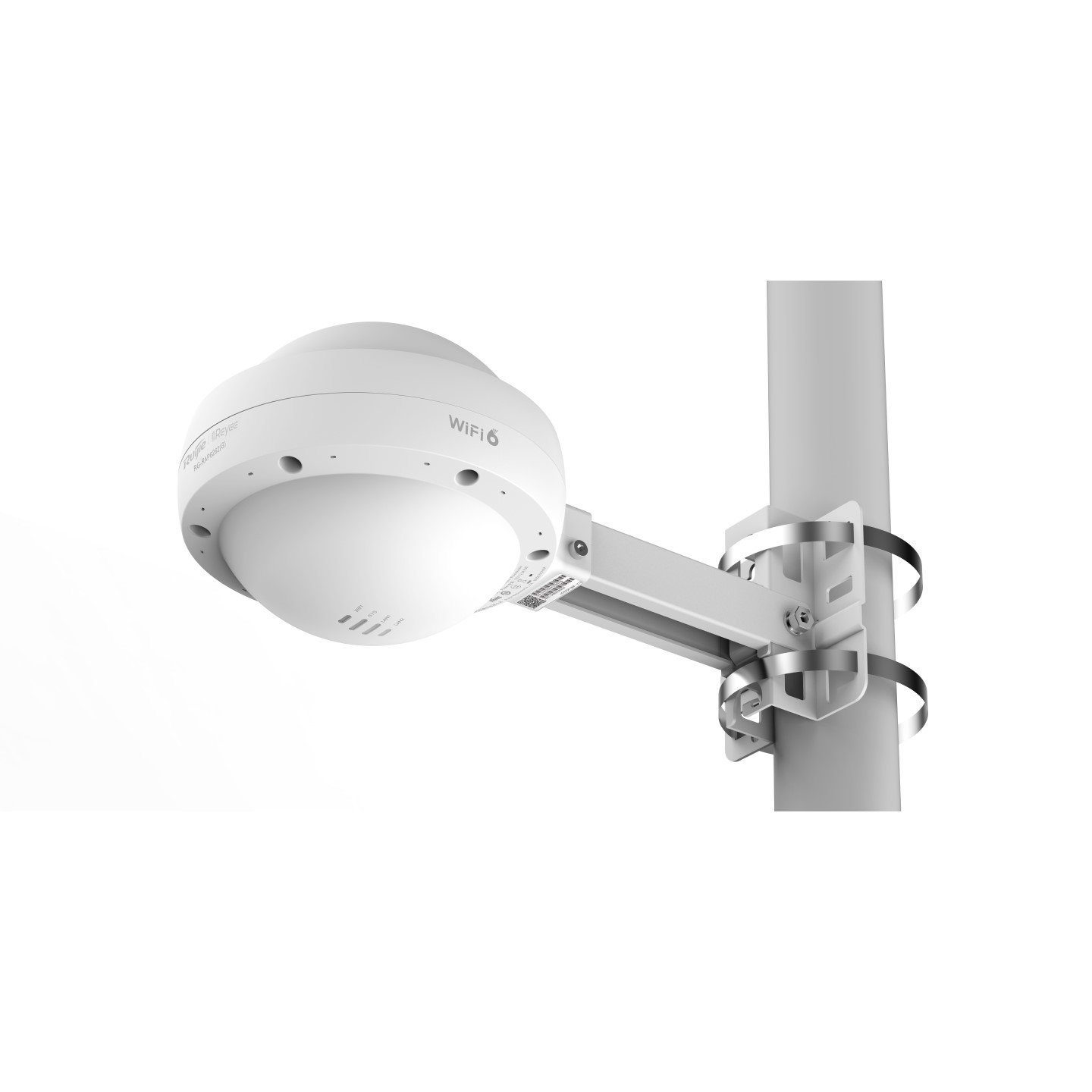

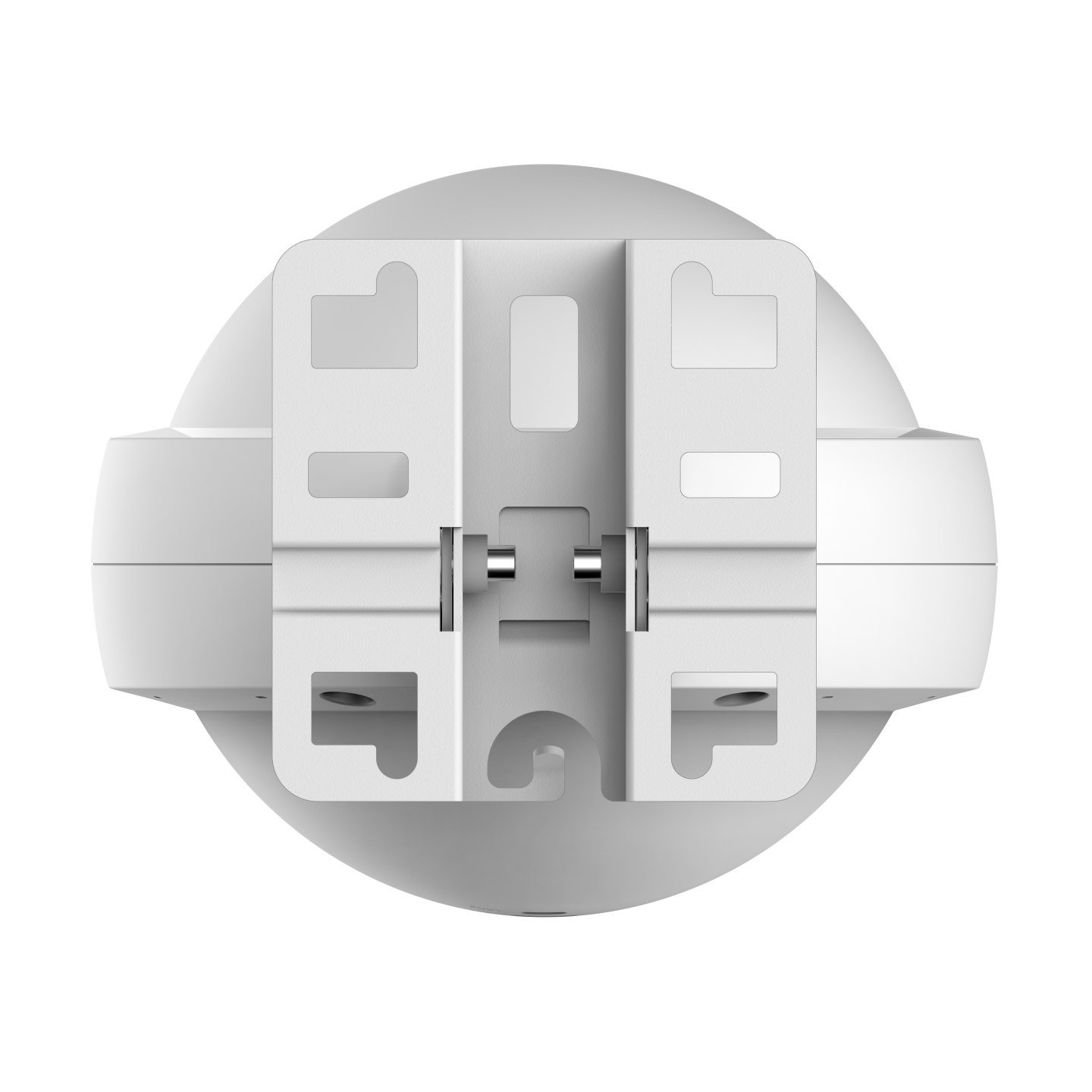

RG‑RAP6262(G) Outdoor AX1800 Wi‑Fi 6 Omni‑AP – IP68, Dual GbE, Mesh
AX1800 outdoor access point delivering up to 1.775 Gbps dual-band speed (574 Mbps @2.4 GHz + 1,201 Mbps @5 GHz). Built to IP68 standards with lightning protection, dual GbE ports, Smart Mesh, AI roaming, and cloud management—supports up to 512 clients.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | RG‑RAP6262(G) |
| Wi‑Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6) |
| MIMO Streams | 2×2 MU‑MIMO per band |
| Max Throughput | 574 Mbps (2.4 GHz) + 1,201 Mbps (5 GHz) = 1.775 Gbps |
| Antenna Gain | 3 dBi (2.4 GHz), 4–5 dBi (5 GHz) |
| Ethernet Ports | 2× Gigabit RJ45 (1× PoE‑in, 1× LAN/PoE‑out) |
| Power & Consumption | IEEE 802.3at PoE+ and 12 V DC; ≤ 18 W |
| Coverage Range | up to 100 m (2.4 GHz), 300 m (5 GHz) |
| Client Capacity | 512 max, ~100 recommended |
| Protection Rating | IP68, flame-retardant, 4 kV surge & wind resistant |
| Operating Temp | −30 °C to +65 °C; humidity 0–100% non-condensing |
| Dimensions / Weight | 200 × 220 × 166 mm; ~1.2 kg (sans bracket) |
| Certifications | CE, RoHS; MTBF >250,000 h |
