RG‑RAP6260(G) Outdoor Wi‑Fi 6 AX1800 AP – IP68, PoE + SFP, Mesh

High-performance outdoor AX1800 AP delivering up to 1.775 Gbps wireless speed (574 Mbps @2.4 GHz + 1,201 Mbps @5 GHz). It features IP68 enclosure, 802.3at PoE input, SFP fiber support, Reyee Mesh, MU-MIMO, and IEEE 802.11k/v roaming—ideal for outdoor expansions.

Add to quote

  • Fast Dual-Band AX Connection
    Supports Wi‑Fi 6 dual-stream MIMO which delivers strong uplink/downlink speeds: 574 Mbps on 2.4 GHz and 1,201 Mbps on 5 GHz for a combined total of 1.775 Gbps.

  • Built to Withstand Any Weather
    Housed in a robust IP68-rated case, it also includes 6 kV surge and high ESD protection to survive extreme conditions from –40 °C to +65 °C.

  • Flexible Uplink Options
    Features one 10/100/1000 Mbps RJ45 PoE-in port (802.3at) plus a 100/1000 Mbps SFP slot for fiber—it powers via Ethernet, so no external supply is needed.

  • Scalable Mesh & Seamless Roaming
    Reyee Mesh networking simplifies deployment with minimal wiring. Support for 802.11k/v enables layer-3 roaming, keeping sessions live across multiple APs.

  • Wide Coverage with Built-in Antennas
    Equipped with omnidirectional internal antennas—4 dBi at 2.4 GHz and 6 dBi at 5 GHz—designed to blanket outdoor spaces efficiently.

  • Supports Hundreds of Users
    Handles up to 512 concurrent connections, with about 100 devices recommended for peak performance in outdoor venues.

Categories: , Brand:

Technical Specifications

Feature Specification
Model RG‑RAP6260(G)
Wi‑Fi Standard IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6)
Spatial Streams 2×2 MU-MIMO @2.4 & 5 GHz
Max Throughput 574 Mbps @2.4 GHz; 1,201 Mbps @5 GHz; 1.775 Gbps total
Antenna Gain 4 dBi (2.4 GHz), 6 dBi (5 GHz)
Ethernet & Fiber Uplink 1×10/100/1000 Mbps PoE-in; 1×100/1000 Mbps SFP
PoE Standard IEEE 802.3at PoE (≤17 W)
Client Capacity Supports up to 512 clients; ≈100 recommended
Protection Rating IP68; –40 °C to +65 °C
Surge & ESD Protection 6 kV surge; high ESD tolerance

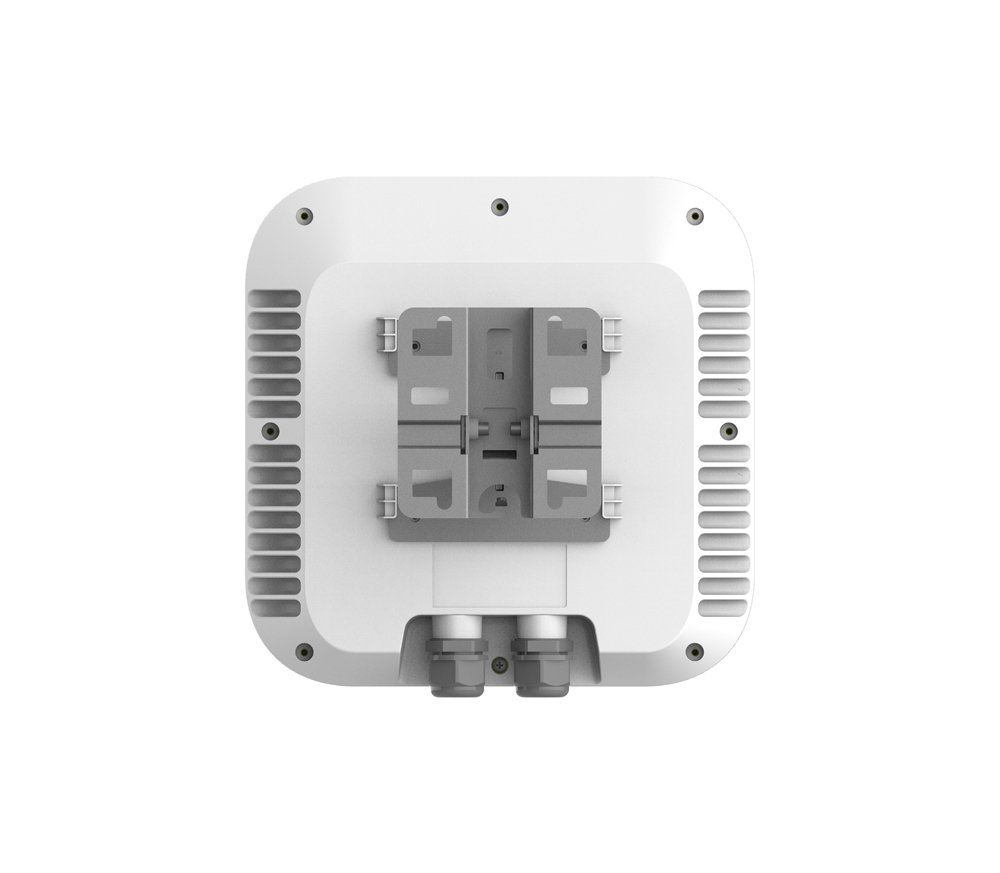

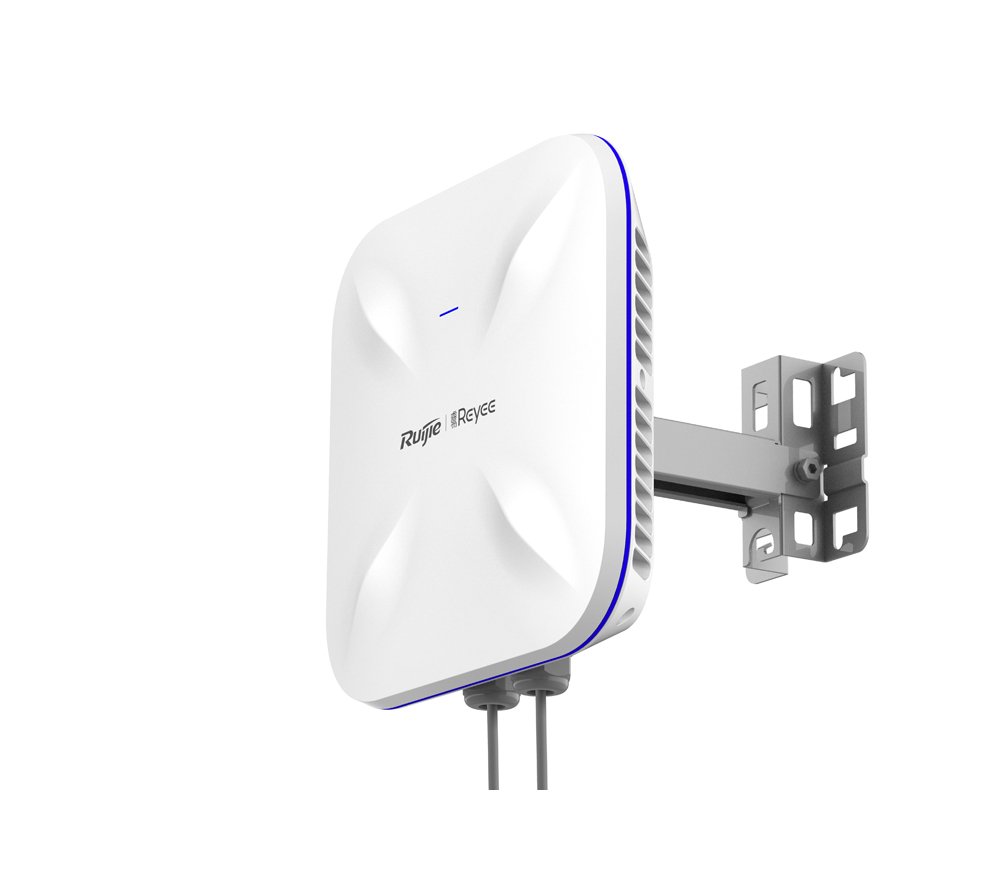

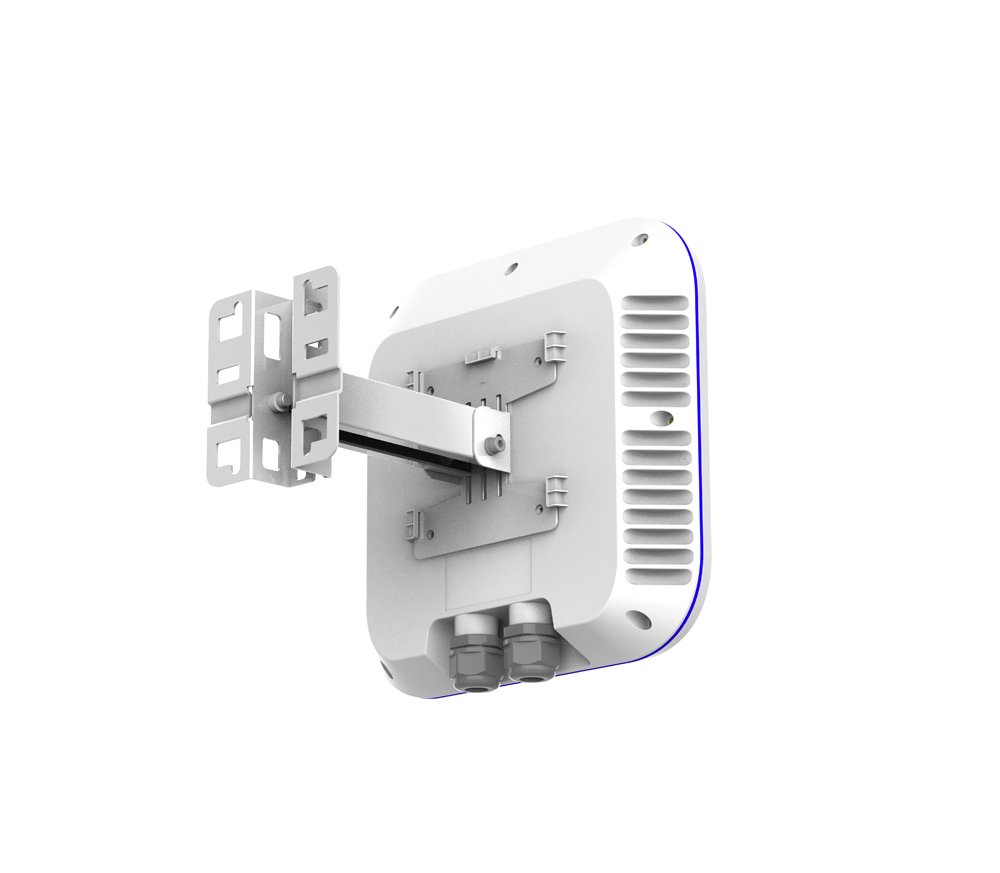

Mounting Wall or pole mount; “UFO” style design
Dimensions & Weight 298 × 298 × 65 mm; ~1.35 kg (without mount)
Certifications CE, RoHS; MTBF >400,000 h
