Dual-Band AX3000 Speeds
Delivers 573 Mbps on 2.4 GHz and 2401 Mbps on 5 GHz using 2×2 MIMO, and up to 2974 Mbps combined throughput. -
IP65 Weatherproof Design
Built to withstand rain, dust, and temperature extremes from –30 °C to +65 °C, with 4 kV lightning and 15 kV ESD protection—ideal for outdoor deployment. -
Flexible Power & Networking
One Gigabit port with 802.3af/at PoE+ or 24 V passive PE power, plus can be pole or wall-mounted to fit diverse installation scenarios. -
Smart Mesh & AI Roaming
Supports Reyee Mesh networking, AI-based roaming, and standards-based handovers (802.11k/v/r) for seamless coverage across APs. -
High Device Capacity
Handles up to 512 simultaneous clients (110 recommended for optimal performance), making it ideal for commercial deployments.

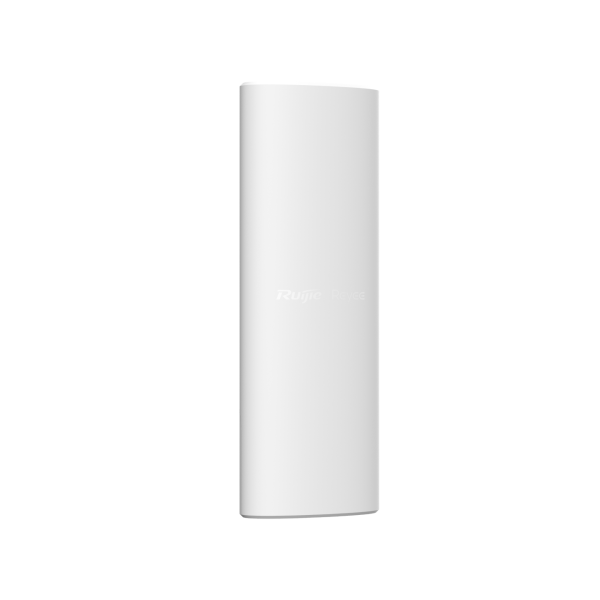

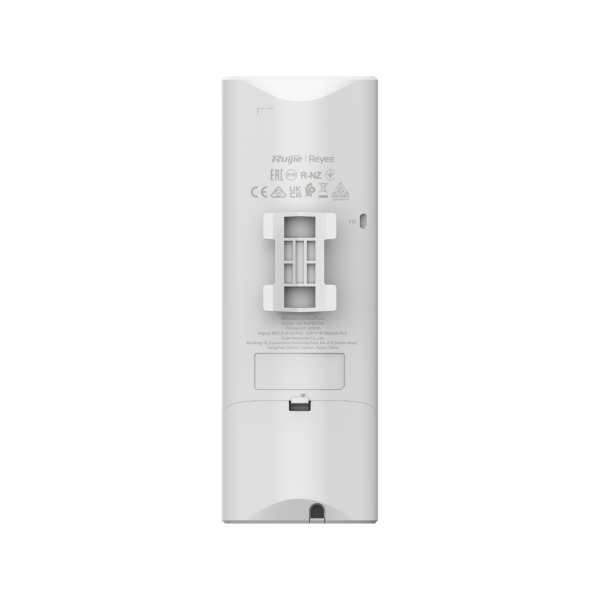

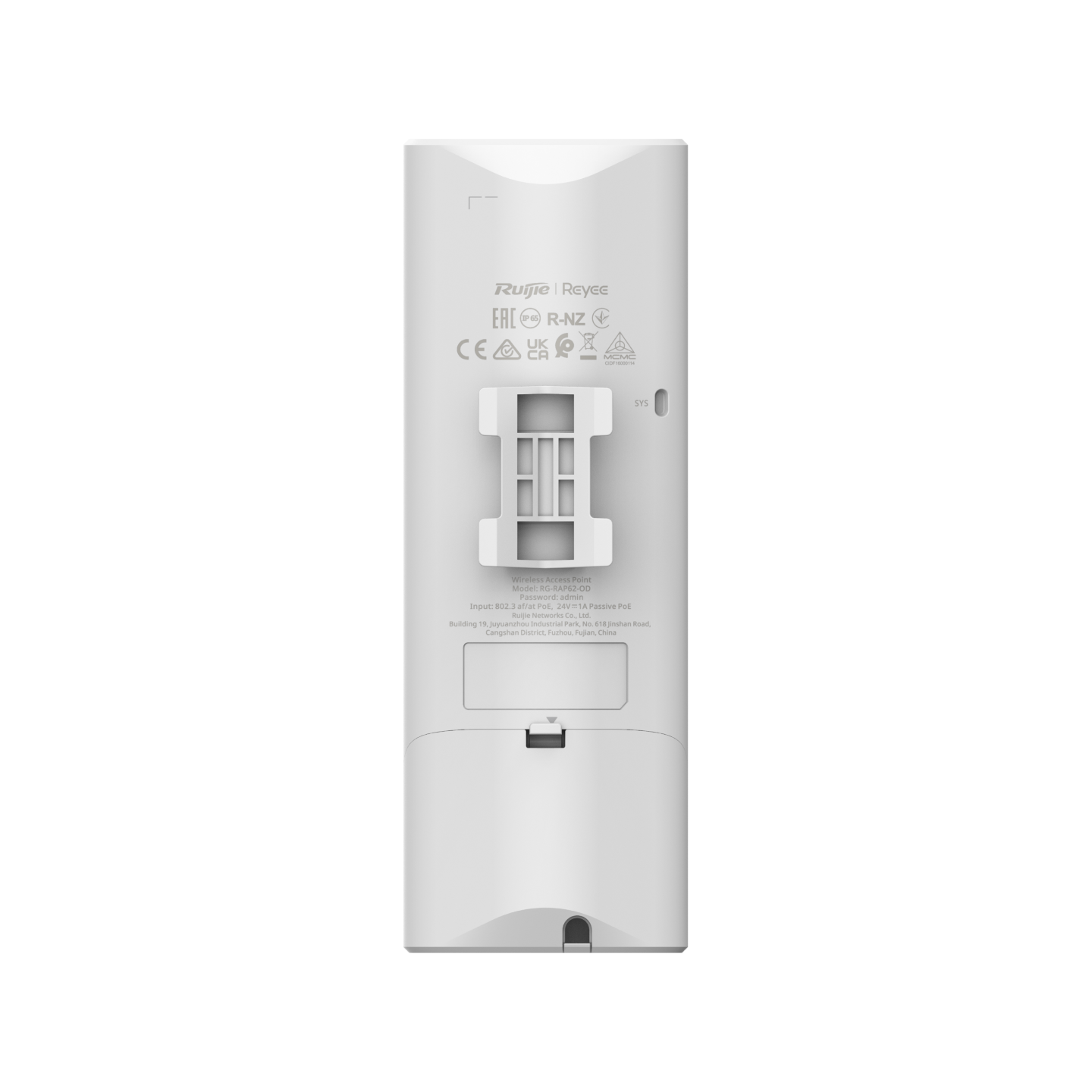

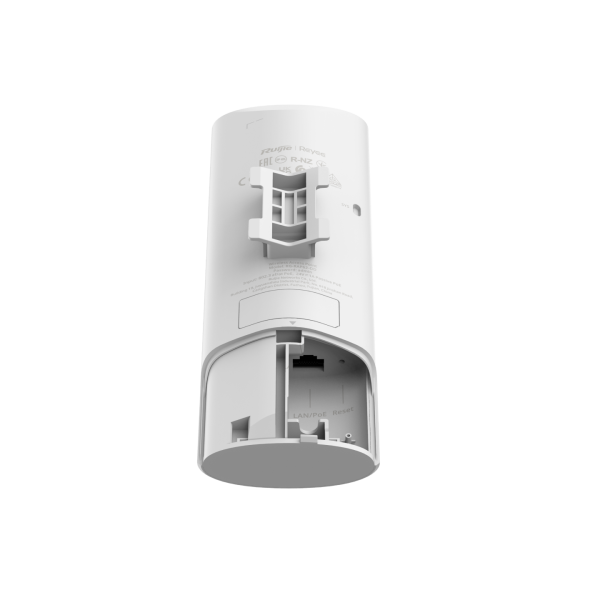

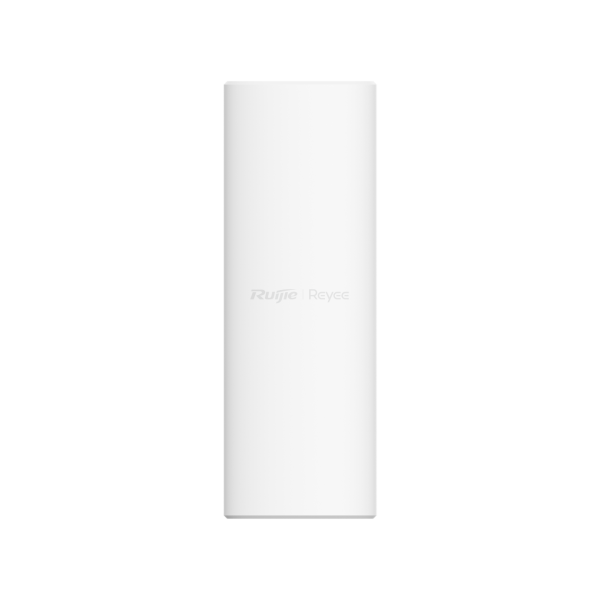

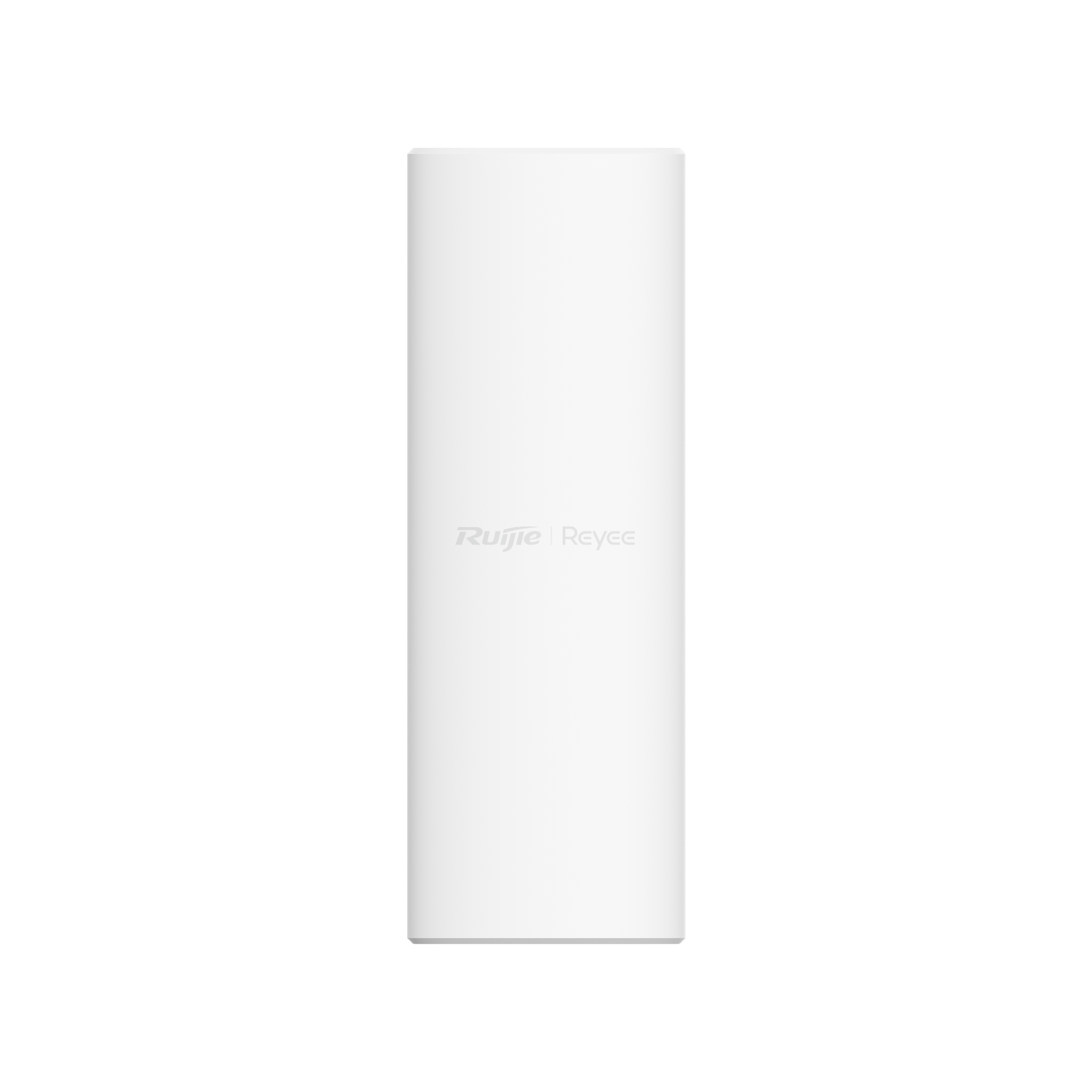

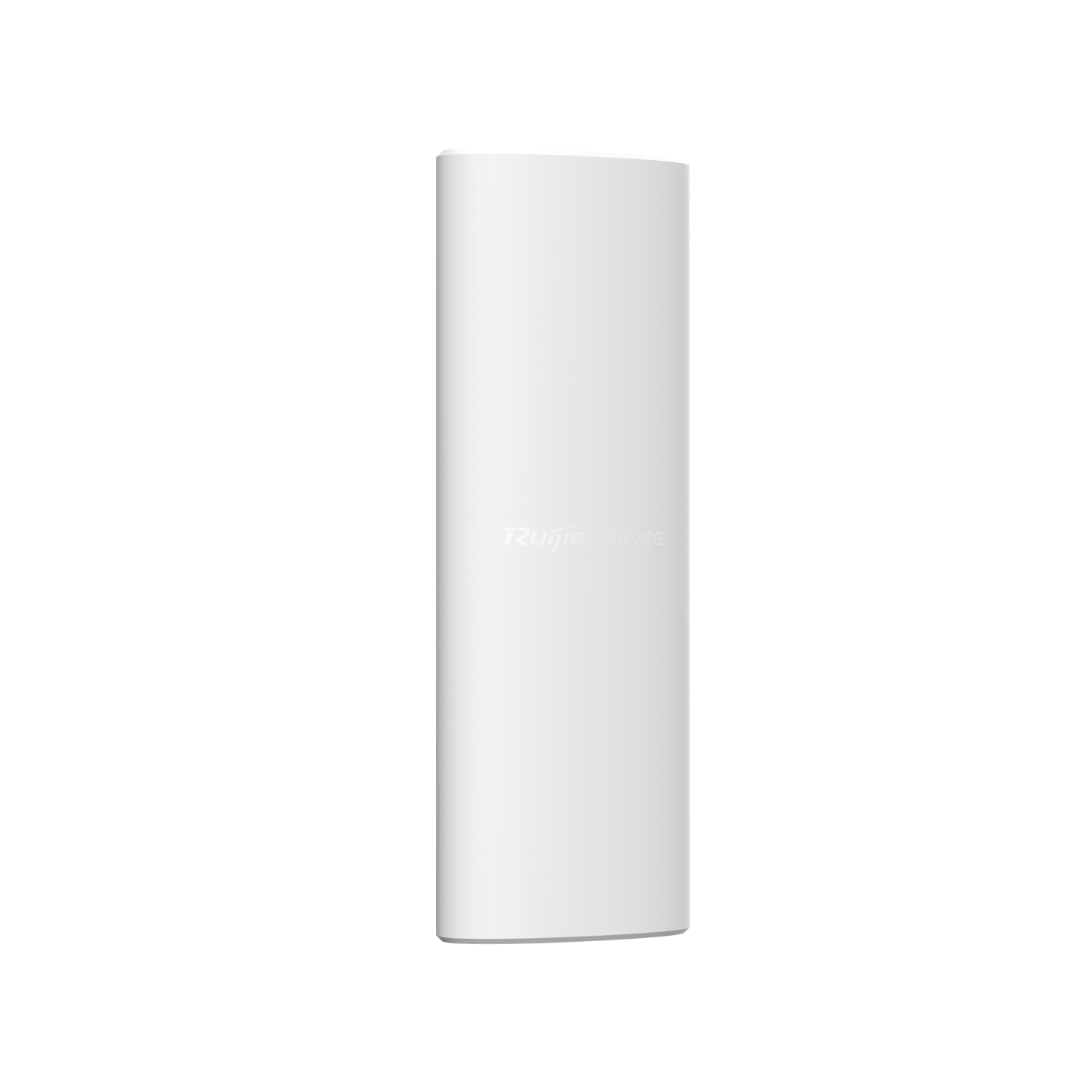

RG‑RAP62‑OD Outdoor/Indoor AX3000 Wi‑Fi 6 AP – 2.974 Gbps & IP65
AX3000 Wi‑Fi 6 access point with dual-band speeds up to 2.974 Gbps, built-in omnidirectional antennas (4 dBi @2.4 GHz, 6.5 dBi @5 GHz), 1×GbE PoE+ port (supports passive PoE), IP65 durability, AI roaming, and Reyee Mesh—perfect for extending coverage outdoors. Supports up to 512 clients.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | RG‑RAP62‑OD |
| Wi‑Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6) |
| Spatial Streams | 2×2 MIMO (both bands) |
| Max Throughput | 573 Mbps @2.4 GHz; 2401 Mbps @5 GHz; combined ~2974 Mbps |
| Antenna Gain | 2.4 GHz: 4 dBi; 5 GHz: 6.5 dBi (omni) |
| Ethernet Port | 1× GigE with 802.3af/at PoE+ support + 24 V passive PoE |
| Client Capacity | Up to 512 clients (optimally ~110) |
| Weatherproof Rating | IP65; –30 °C to +65 °C |
| Surge Protection | 4 kV lightning; 15 kV ESD |
| Mounting Options | Wall or pole mount (40–70 mm diameter) |
| Power Consumption | <16 W via PoE+ |
| Dimensions | 200 × 70 × 35 mm; ≤0.4 kg |
| Certifications | CE, RoHS, FCC, ISED; MTBF >400,000 h |
