RG‑RAP2260H Wi‑Fi 6 AX6000 Ceiling AP – 5.95 Gbps, Dual 2.5 GbE PoE++

Ultra-high performance ceiling AP offering up to 5.95 Gbps combined wireless speed, dual 2.5 GbE ports (one PoE++), supports 512 clients, Reyee Mesh, intelligent roaming, captive portal, and cloud/web/SNMP management—perfect for high-density indoor spaces.

Add to quote

  • Blazing Wi‑Fi 6 AX6000 Performance
    With 4×4 MU‑MIMO radios on both bands, this AP achieves up to 1148 Mbps (2.4 GHz) and 4804 Mbps (5 GHz), totaling roughly 5.95 Gbps. Ideal for bandwidth-intensive environments.

  • Dual Multi-Gigabit Uplinks
    Includes two 2.5 GbE RJ45 ports (one supports PoE++), future-proofing wired backhaul and power delivery.

  • High-Density & Seamless Connectivity
    Supports up to 512 clients, self-organizing Reyee Mesh, and intelligent roaming (802.11k/v/r/SON) for consistent, scalable coverage.

  • Guest Access & Security
    Offers standalone captive portal authentication, WPA3/WPA2 encryption, VLAN tagging, and robust client isolation—ideal for mixed-use environments.

  • Centralized Cloud & Local Management
    Zero-touch setup via cloud portal. Manage via Ruijie Cloud, Web UI, mobile app, or SNMP to streamline network operations.

  • Sleek & Practical Design
    Fanless, ceiling-mount form factor (~230×230×49.5 mm; ~1.8 kg), with 3 dBi (2.4 GHz) and 4 dBi (5 GHz) internal antennas.

Categories: , Brand:

Technical Specifications

Feature Specification
Model RG‑RAP2260H
Wi‑Fi Standard 802.11a/b/g/n/ac/ax (Wi‑Fi 6)
Radios & MIMO 4×4 MU‑MIMO at 2.4 GHz & 5 GHz
Max Wireless Rate 2.4 GHz: 1148 Mbps; 5 GHz: 4804 Mbps; total ~5950 Mbps

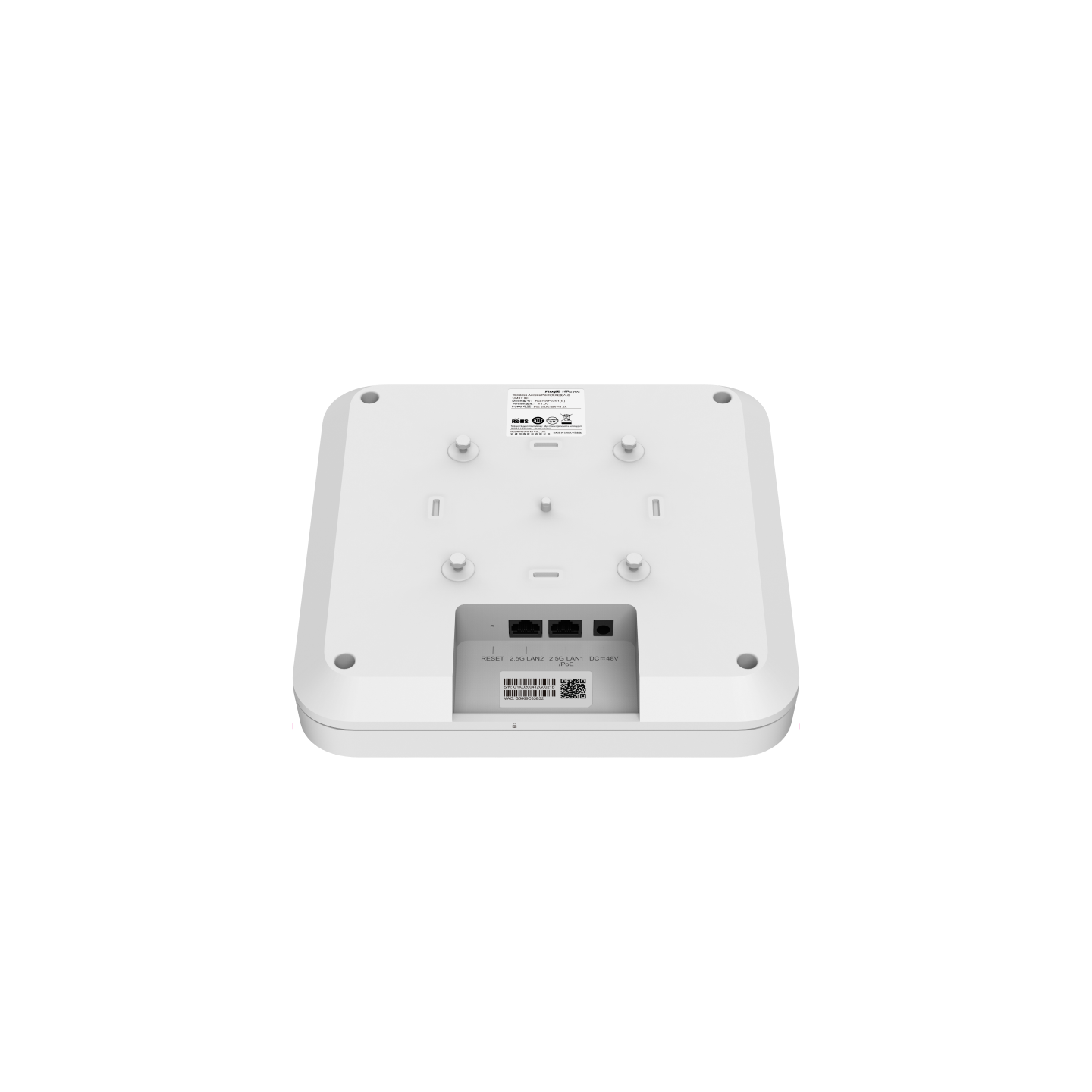

Ethernet Ports 2×2.5 GbE RJ45 (1× PoE++), plus reset/DC port
Clients Max 512 (recommended ~130)
SSID Support Up to 8 SSIDs
Capture Radius ~40 m (2.4 GHz); ~70 m (5 GHz)
Antenna Gain 3 dBi (2.4 GHz); 4 dBi (5 GHz)
Transmit Power ≤35 dBm (2.4 GHz); ≤36 dBm (5 GHz)
Security & Management WPA3/WPA2, captive portal, VLANs, cloud/web/UI, SNMP, mesh, roaming
Dimensions 230×230×49.5 mm; weight ~1.8 kg
Power Type IEEE 802.3bt PoE++
Operating Conditions 0–40 °C, typical indoor relative humidity
Warranty 3 years standard
