Ultra-Fast AX3200 Wireless
Dual-band 4×4 MU‑MIMO offers up to 800 Mbps on 2.4 GHz and 2400 Mbps on 5 GHz, totaling around 3202 Mbps per AP—eliminating bottlenecks in busy networks. -
Multi-Gigabit Wired Uplink
Equipped with a 2.5 GbE PoE+ uplink and an additional Gigabit LAN port, giving you flexible deployment and high-capacity backhaul. -
Smart Mesh & Roaming
Reyee Mesh with Self-Organizing Network (SON) enables effortless expansion, while 802.11k/v/r roaming ensures smooth handoffs. -
Supports 500+ Clients
Designed for high-density environments, supporting connections from over 500 users with superior performance. -
Seamless Setup & Management
Zero-touch provision via Ruijie Cloud App (3-minute setup), with ongoing control via cloud, Web UI, or SNMP.
Access Points, Networking

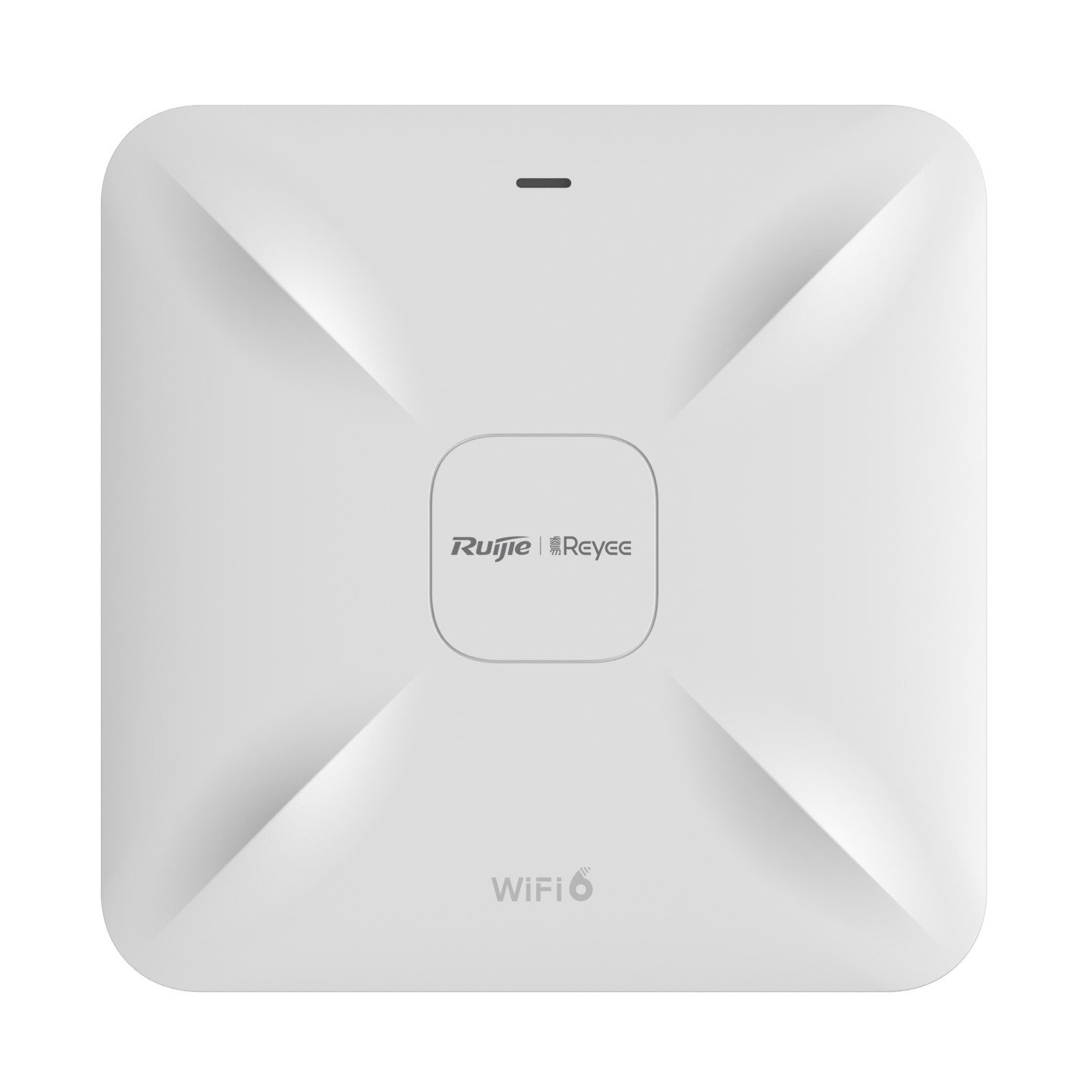

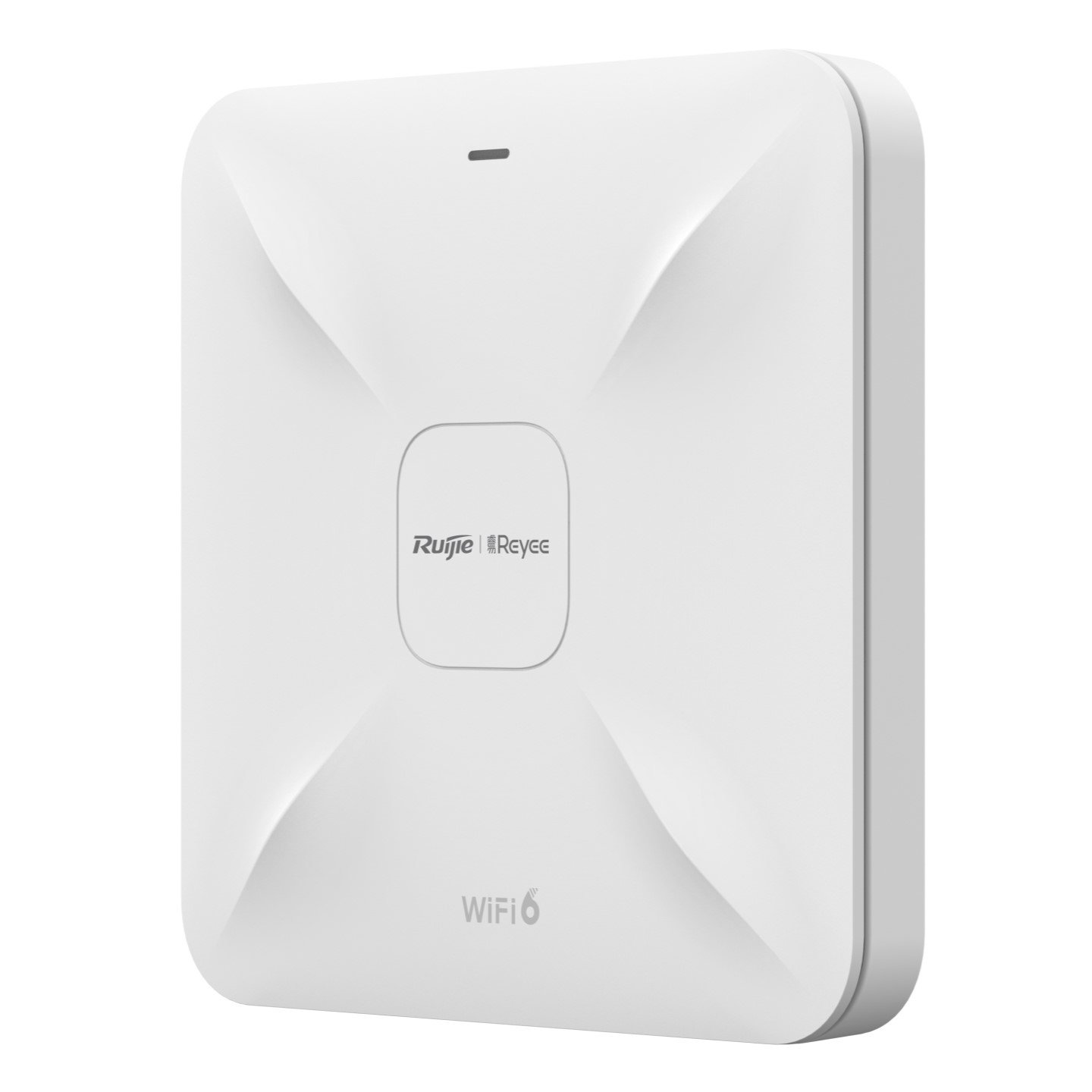

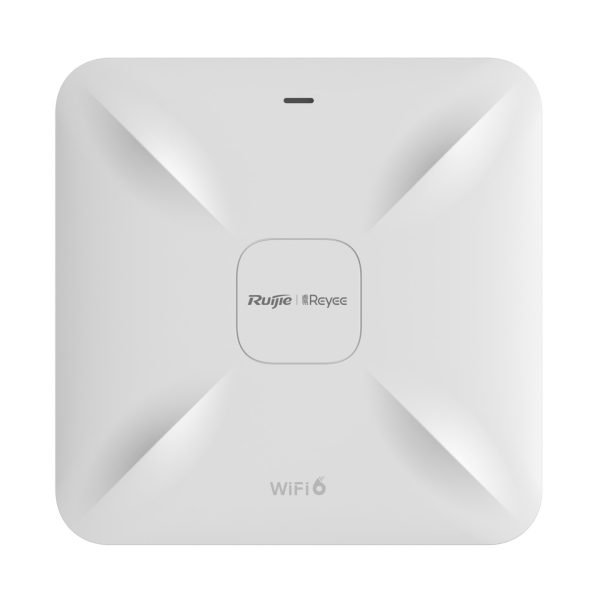

RG‑RAP2260E Wi‑Fi 6 Ceiling AP – AX3200, 2.5 GbE PoE, Mesh Ready
High-performance ceiling Wi‑Fi 6 AP delivering up to 3.2 Gbps wireless throughput, dual 4×4 MU‑MIMO radios, 2.5 GbE PoE uplink + Gigabit LAN port, support for 500+ clients, intelligent mesh networking, and easy deployment via Ruijie Cloud or local Web UI.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | RG‑RAP2260E |
| Wi‑Fi Standard | IEEE 802.11ax (Wi‑Fi 6), backward compatible |
| Radio/MIMO | Dual-stream 4×4 MU‑MIMO per band |
| Max Throughput | ~3202 Mbps total (800 Mbps @2.4 GHz + 2400 Mbps @5 GHz) |

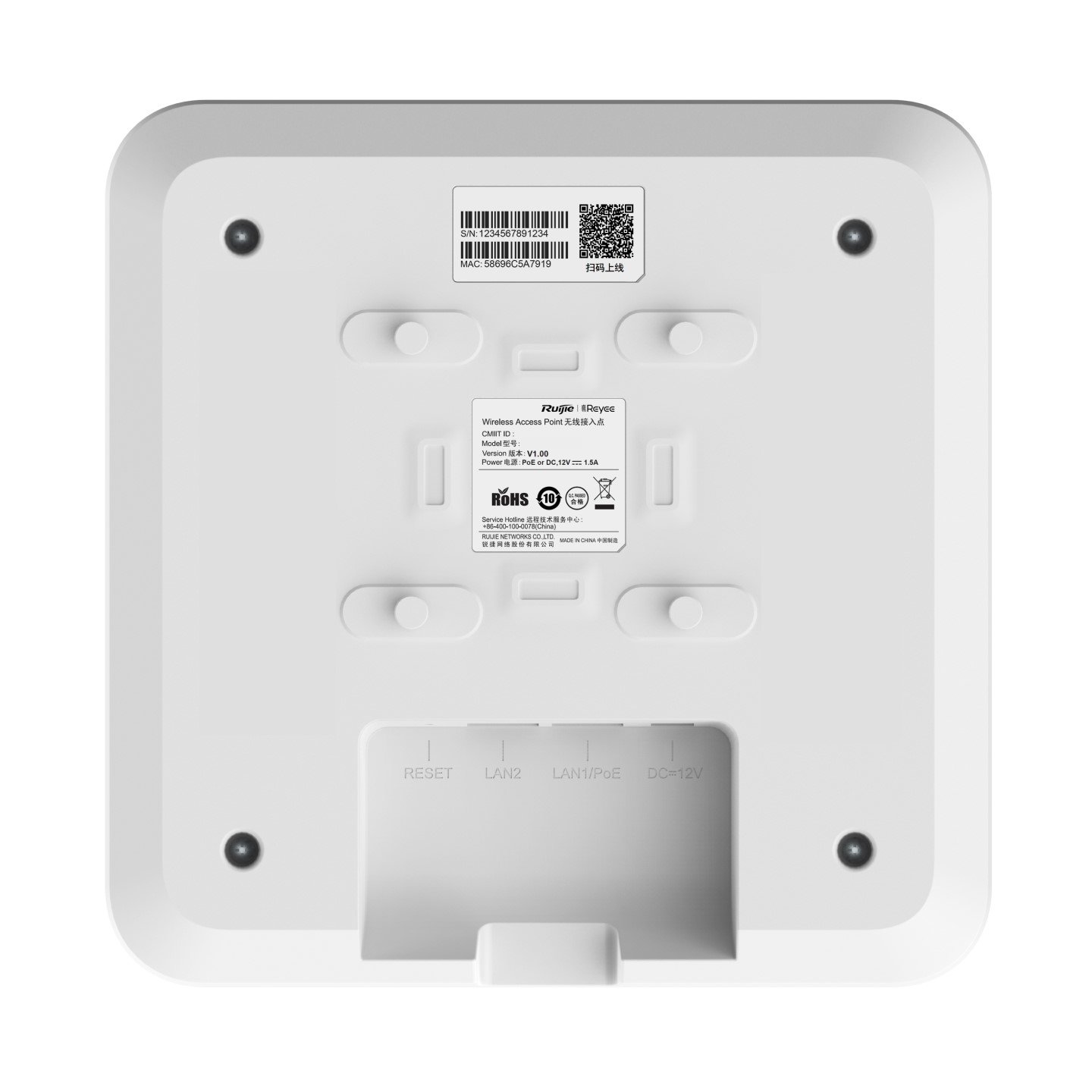

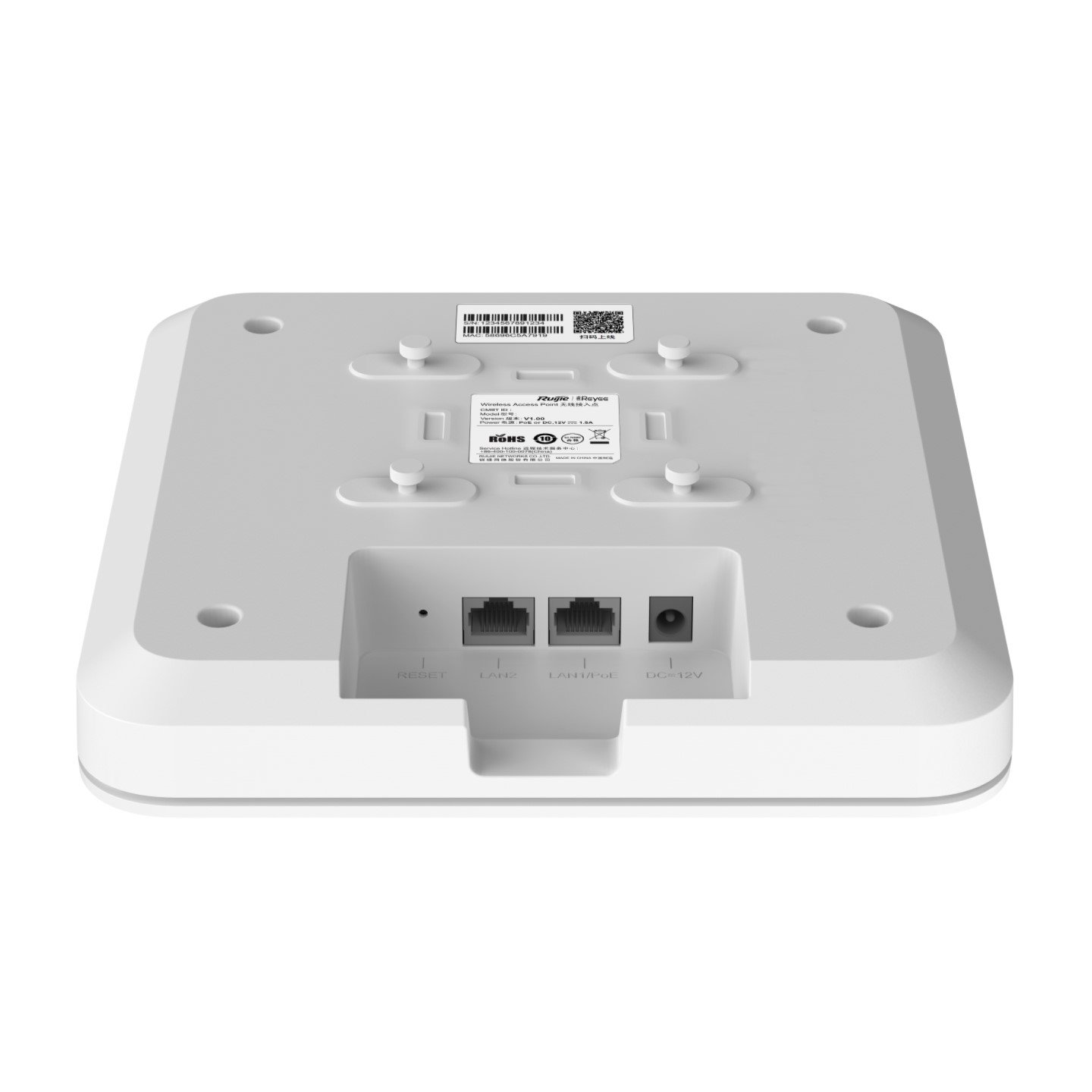

| Ethernet Ports | 1× Gigabit/2.5 GbE PoE+, 1× Gigabit LAN |
| Client Support | 500+ concurrent users |
| Mesh & Roaming | Reyee Mesh, SON, 802.11k/v/r |
| Power Consumption | <25.4 W via PoE+ or optional DC adapter |
| Dimensions / Weight | 220×220×35 mm; ≤ 1.05 kg (excl mount) |
| Operating Environment | 0–40 °C; humidity 5–95 % RH |
| Certifications & Standards | CE, RoHS; supports OFDMA, 1024-QAM |
| Management Features | Ruijie Cloud, Web UI, SNMP v1/2c |
