RG‑RAP2200E AC1300 Ceiling Wi‑Fi 5 AP – 1.267 Gbps, Dual GigE PoE+, Cloud-Managed

Ceiling-mounted Wi‑Fi 5 AP offering up to 1.267 Gbps throughput (400 Mbps @2.4 GHz + 867 Mbps @5 GHz), MU‑MIMO Wave 2 technology, dual Gigabit ports (one PoE+), Layer 3 roaming support, self-organizing mesh, and 3-minute cloud setup—ideal for commercial indoor environments.

Add to quote

  • Dual-Band AC1300 Performance
    Supports 802.11ac Wave 2 with 2×2 MU‑MIMO, reaching up to 1.267 Gbps total throughput for robust multi-user handling.

  • Advanced MU‑MIMO & OFDMA
    Enhances efficiency using Wave 2 MU‑MIMO and OFDMA optimization, ensuring smooth connections under load.

  • Seamless Layer 3 Roaming
    Enables smooth handoffs across subnets, ideal for sprawling networks in campuses and hotels.

  • Effortless Cloud Setup
    Features one-click Wi‑Fi Intelligent Optimization and SON for auto-provisioning via Ruijie Cloud—setup completes in about 3 minutes.

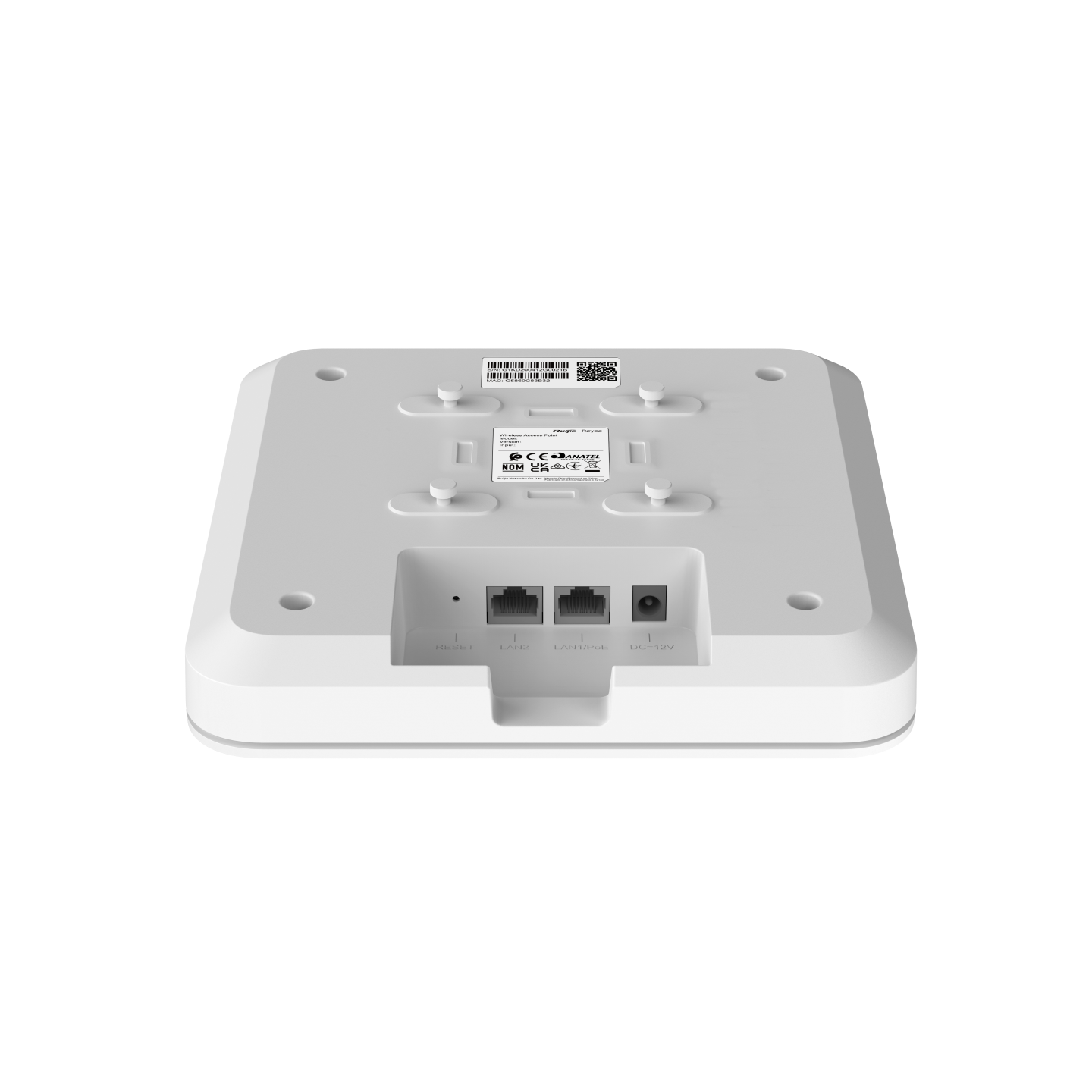

  • Flexible Dual RJ45 Ports
    Two Gigabit Ethernet ports included (one PoE+ input, one LAN pass-through) for flexible cabling and device connections.

  • Optimized for Medium-Sized Venues
    Supports approximately 110 clients (recommended 48), making it suitable for classrooms, meeting rooms, and hospitality settings.

  • Compact & Durable Design
    Sleek ceiling form factor (194 × 194 × 35 mm, ~0.45 kg) with simple ceiling or pole mount, blending aesthetics with functionality.

Categories: , Brand:

Technical Specifications

Feature Specification
Model RG‑RAP2200E
Wi‑Fi Standard IEEE 802.11a/b/g/n/ac Wave 2
MIMO Streams 2×2 on 2.4 GHz + 2×2 on 5 GHz
Max Throughput 400 Mbps @2.4 GHz; 867 Mbps @5 GHz; total ~1.267 Gbps
Ethernet Ports 2×10/100/1000 Mbps (1× PoE+)
PoE Support IEEE 802.3af/at, ≤12.95 W power draw
Client Capacity Up to 110 devices (48 recommended)
Roaming & Mesh Layer 3 Roaming, MU‑MIMO, Reyee Mesh / SON
Dimensions 194 × 194 × 35 mm; ~0.45 kg
Operating Temp & Humidity 0–40 °C; 5–95 % RH (non-condensing)
Certifications & Warranty CE, RoHS; 3-year warranty; MTBF >250,000 hrs
