AX3000 Dual‑Band Wireless
Dual‑radio setup with 2×2 MU‑MIMO delivering up to 574 Mbps on 2.4 GHz and 2,402 Mbps on 5 GHz, summing to ~2,976 Mbps—ideal for high‑throughput needs. -
Smart AI Roaming & Mesh
Equipped with smart AI roaming and support for 802.11k/v handoffs, along with Reyee Mesh and SON technology to ensure seamless coverage. -
Wall‑Plate with Multiple Ports

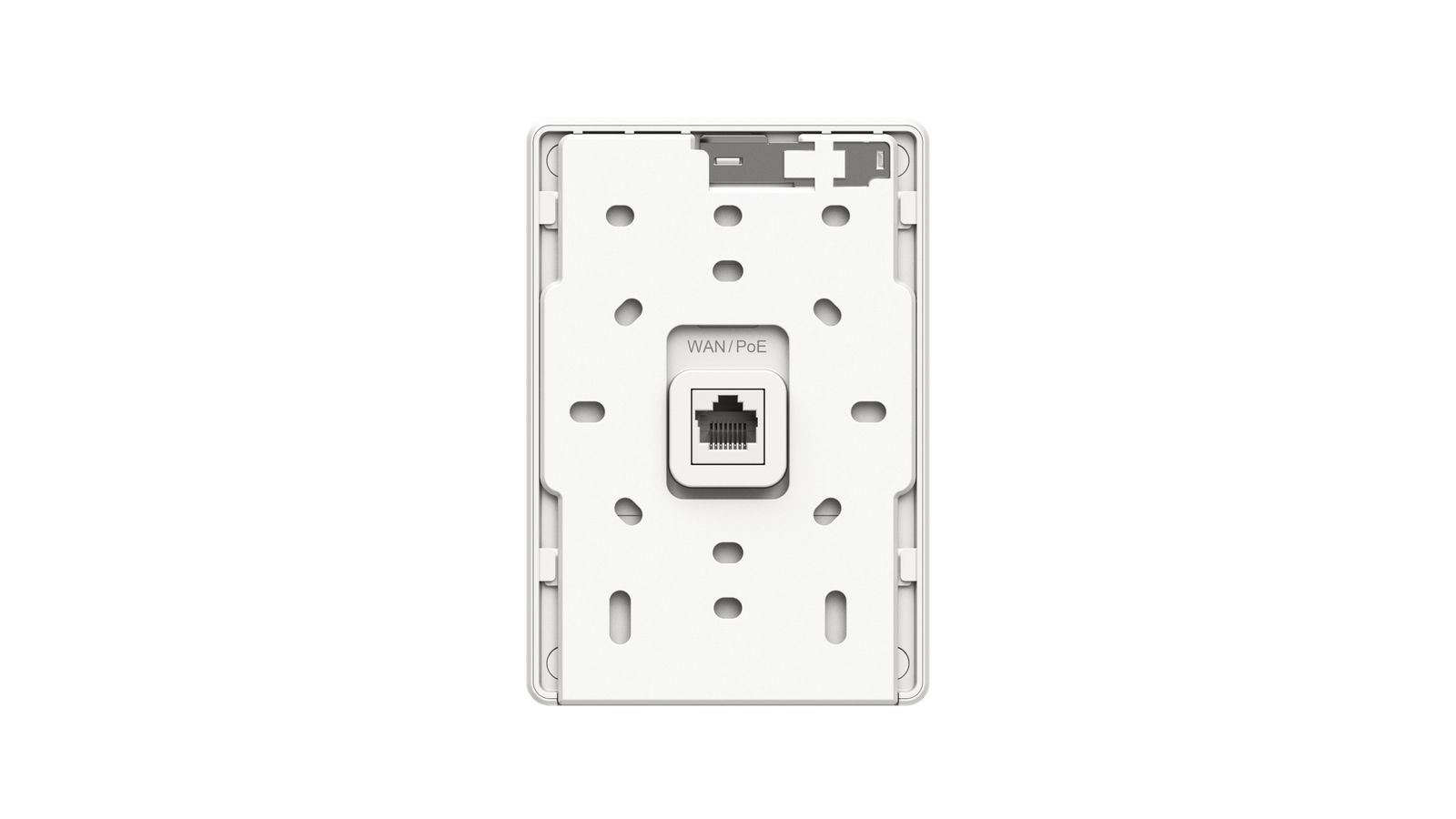

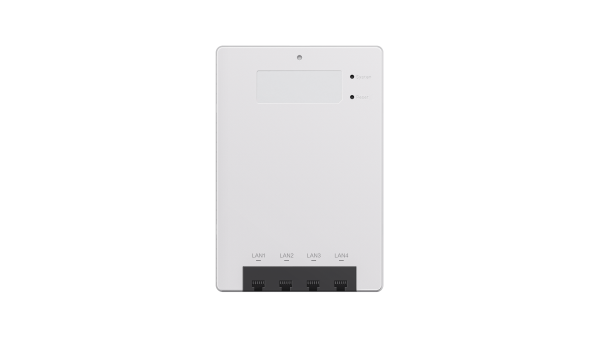

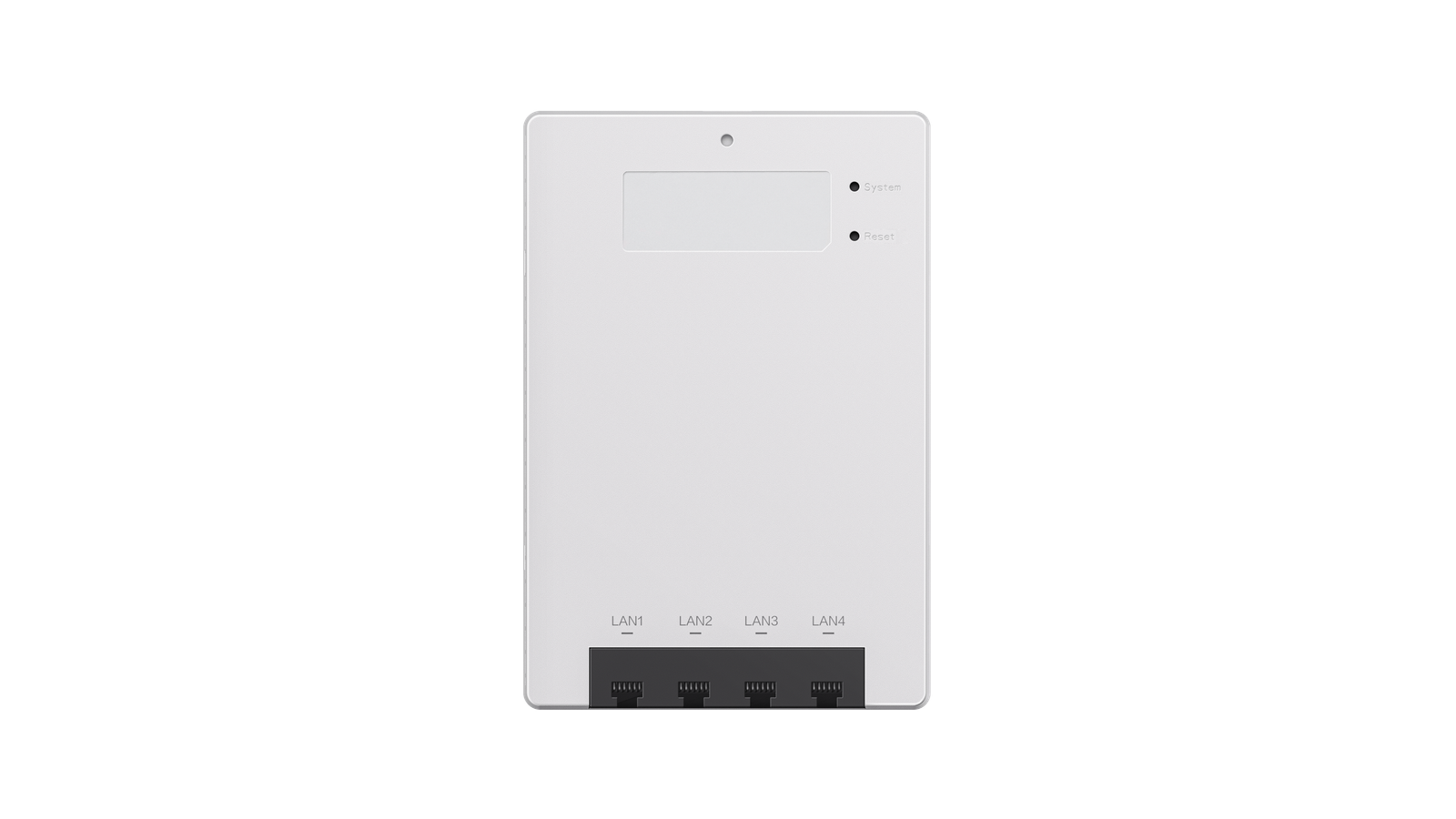

Includes 1×GbE PoE+ uplink and 4×GbE LAN downlinks, enabling wired device support directly from the wall plate. -
Cloud Provisioning & Remote Diagnostics
Offers free cloud portal authentication, automatic firmware upgrades, device monitoring, and library updates via Ruijie Cloud.
Access Points, Networking
RG‑RAP1260 AX3000 Wall‑Plate Wi‑Fi 6 Access Point – 5×GbE, Mesh & Roaming
Compact wall‑mount Wi‑Fi 6 access point with AX3000 throughput, 1×GbE PoE+ uplink plus 4×GbE downlinks, intelligent roaming, Reyee Mesh, and zero‑touch cloud setup—supports up to 512 clients (110 recommended) and fits standard wall boxes.
Technical Specifications
| Feature |
Specification |
|---|---|
| Model | RG‑RAP1260 |
| Wi‑Fi Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band |
| Radio Configuration | 2×2 MU‑MIMO on 2.4 GHz & 5 GHz |
| Max Throughput | 574 Mbps (2.4 GHz) + 2,402 Mbps (5 GHz) = ≈2,976 Mbps |
| Ethernet Ports | 1×GbE PoE+ uplink + 4×GbE LAN downlinks |
| PoE Power Input | 802.3af/at PoE+ (≤12 W) |
| Client Capacity | 512 max, ~110 recommended |
| Mount Type | Standard wall‑plate (86 × 86 mm), fits junction boxes |
| Dimensions | ~124 × 86 × 24 mm; weight <0.5 kg |
| Operating Temp/Humidity | 0–40 °C; 5–95% RH non‑condensing |
| Certifications | CE, RoHS (others vary by region) |
| Warranty | 3 years |
