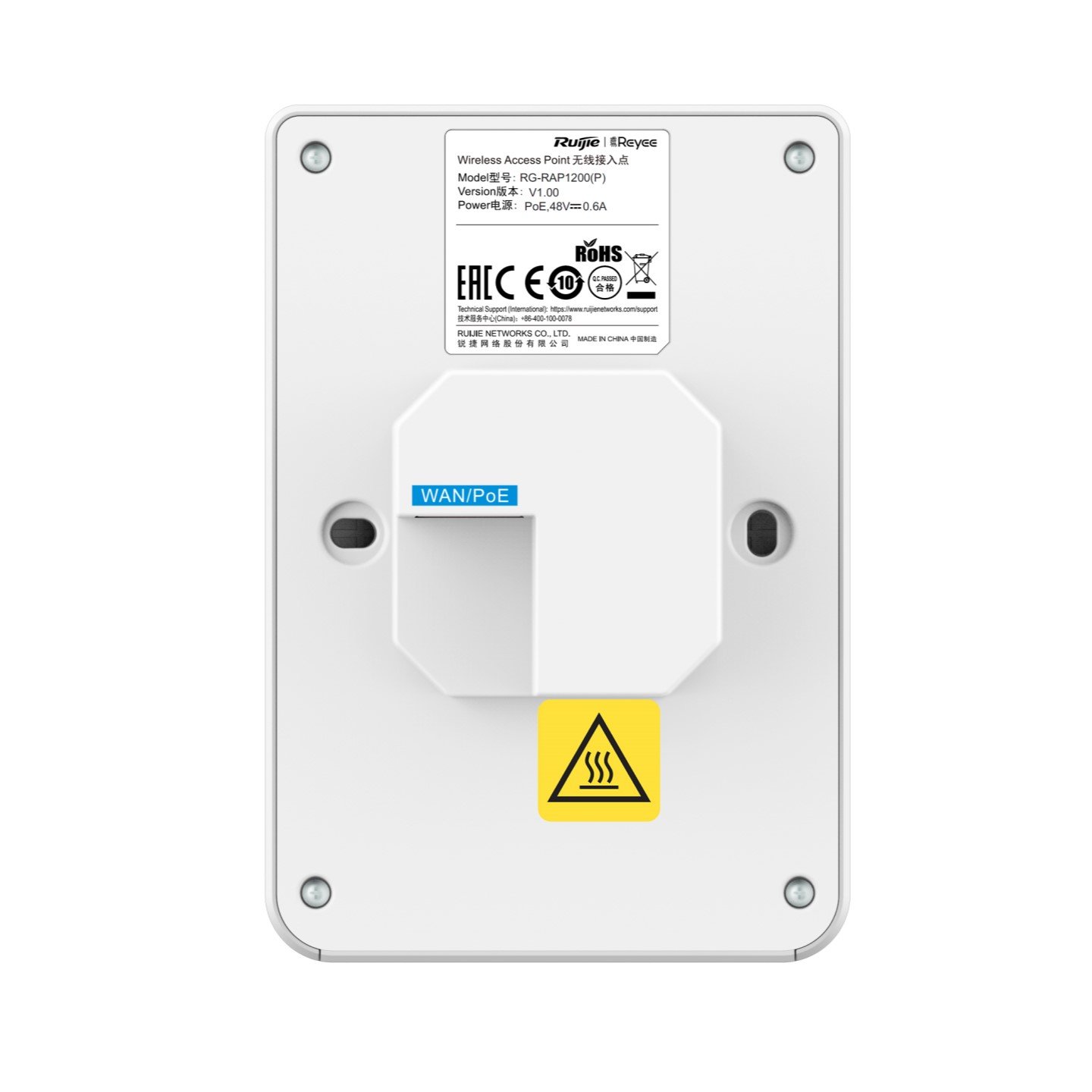

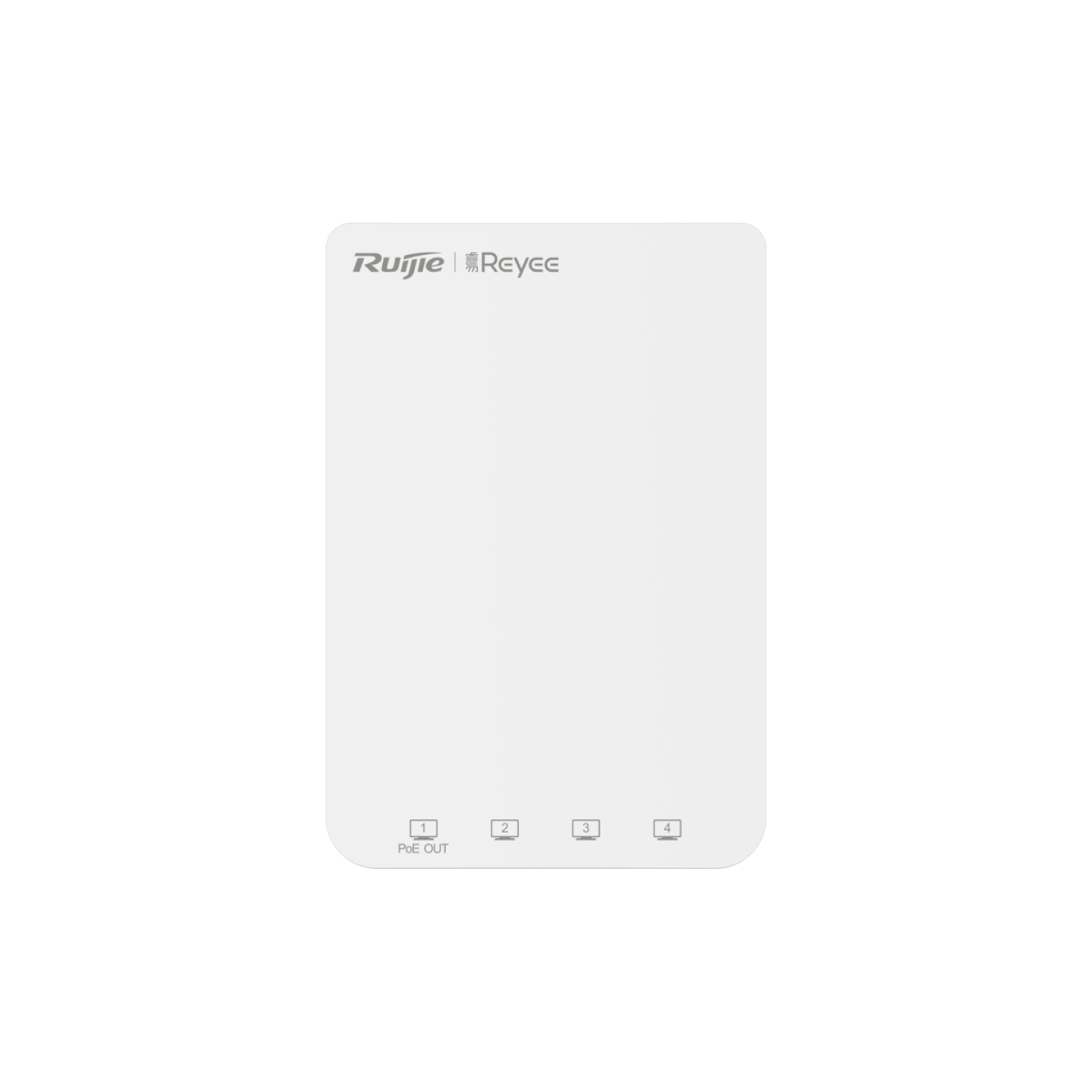

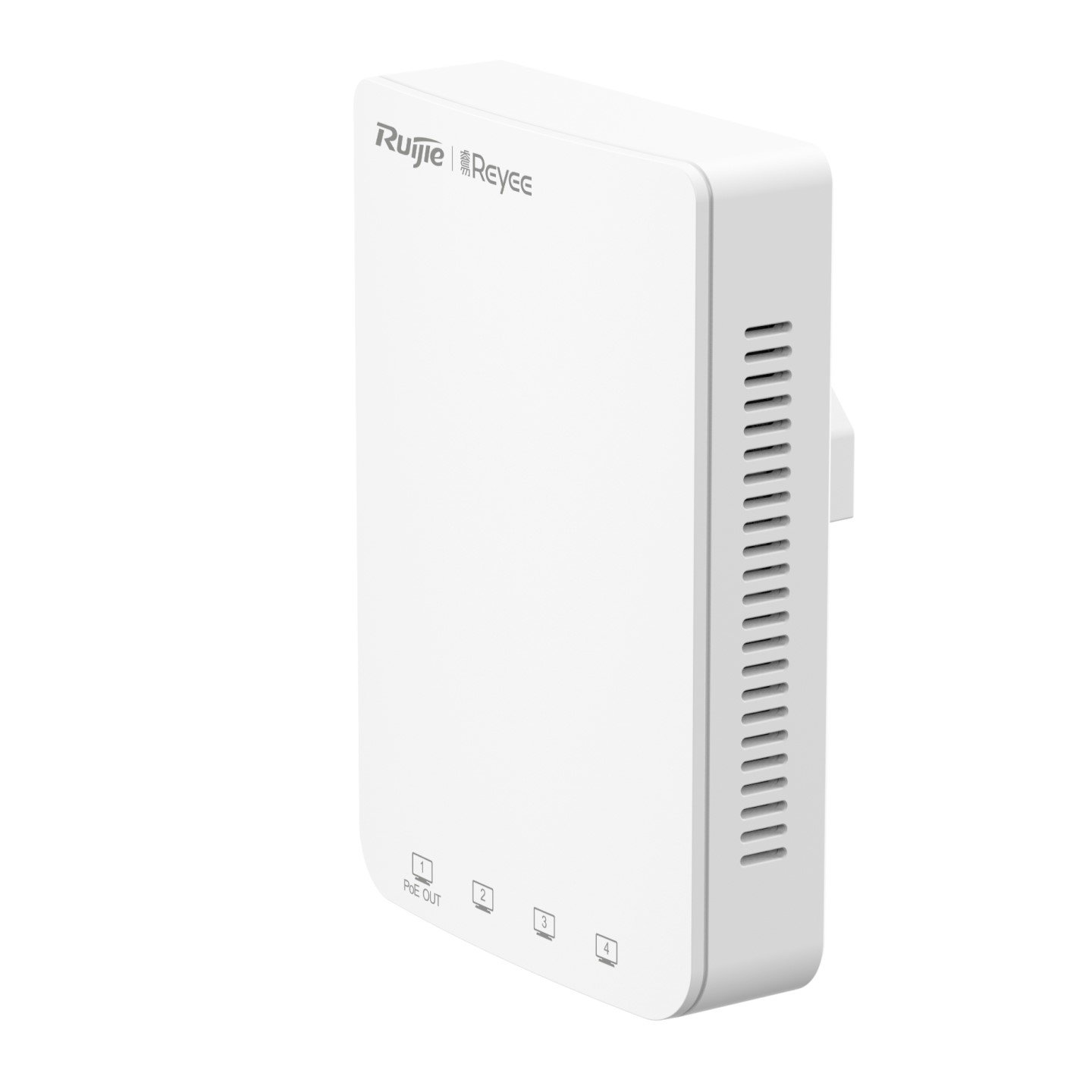

RG‑RAP1200(P) AC1300 Wall-Plate AP – 5×GbE Ports, MU‑MIMO, Cloud-Managed
RG‑RAP1200(P) AC1300 Wall-Plate AP – 5×GbE Ports, MU‑MIMO, Cloud-Managed - Image 2
RG‑RAP1200(P) AC1300 Wall-Plate AP – 5×GbE Ports, MU‑MIMO, Cloud-Managed - Image 3
RG‑RAP1200(P) AC1300 Wall-Plate AP – 5×GbE Ports, MU‑MIMO, Cloud-Managed - Image 4
,

RG‑RAP1200(P) AC1300 Wall-Plate AP – 5×GbE Ports, MU‑MIMO, Cloud-Managed

Wall-mounted AC1300 AP delivering up to 1.267 Gbps throughput (400 Mbps @2.4 GHz + 867 Mbps @5 GHz). Packed with five Gigabit LANs (one PoE+ passthrough), intelligent MU‑MIMO, Layer 3 roaming, Reyee mesh, and 3-minute cloud provisioning—ideal for mid-density indoor setups

Add to quote

  • Dual-Band AC1300 Speeds + MU‑MIMO
    Equip your network with combined 1.267 Gbps throughput across 2.4 GHz (400 Mbps) and 5 GHz (867 Mbps), enhanced by 2×2 MU‑MIMO for efficient multi-user performance .

  • Built-In Full Gigabit Ethernet

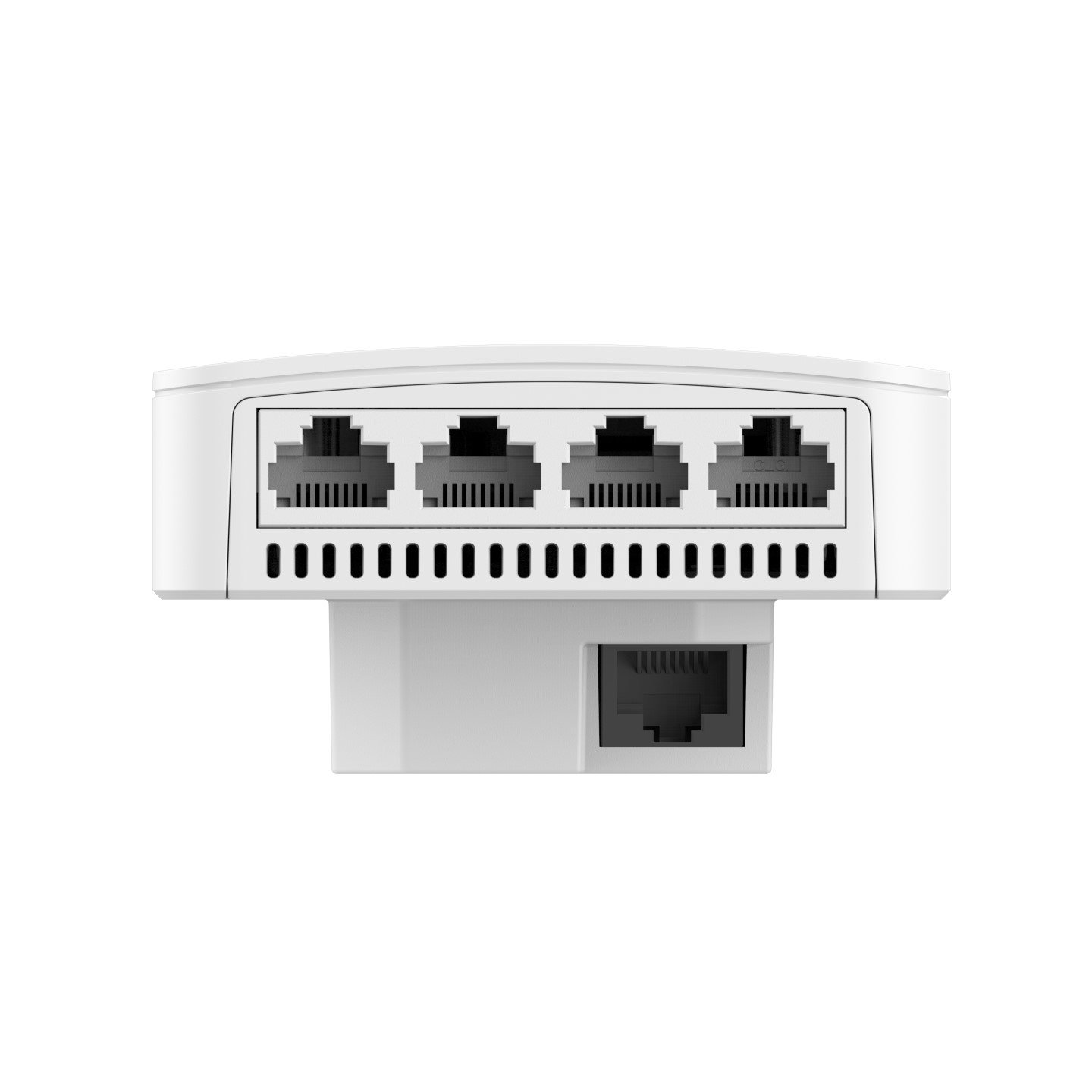

    Provides 5× Gigabit ports: 1× uplink PoE, 1× pass-through, and 3× LAN—ideal for IP phones, TVs, or local gadgets.

  • Layer 3 Roaming & Flexible Modes
    Supports seamless roaming across subnets and can switch between AP and router modes without hassle.

  • Effortless Deployment & Management
    One-click Wi‑Fi Intelligent Optimization (WIO) and Self-Organizing Network (SON) enable complete deployment in 3 minutes via Ruijie Cloud, with local Web UI or app control.

  • Secure & Cloud-Ready
    Supports up to 8 SSIDs, WPA2, VLAN, client isolation, blacklisting, and whitelist options. Remote monitoring and maintenance simplify operations.

  • Robust Design & Quick Install
    Compact (126×86×50 mm, 0.24 kg), made with flame-retardant casing, rated for –30 °C to 65 °C and compatible with standard wall boxes.

Categories: , Brand:

Technical Specifications

Feature Specification
Model RG‑RAP1200(P)
Wi‑Fi Standard IEEE 802.11a/b/g/n/ac Wave 2
Radios / MIMO Dual-band, 2×2 MU‑MIMO
Max Throughput 400 Mbps (2.4 GHz) + 867 Mbps (5 GHz); total ≈1.267 Gbps
Ethernet Ports 5× GigE (1× PoE uplink, 1× pass-through, 3× LAN)
Transmit Power ≤18 dBm EIRP
Clients Supports ~110 devices (recommended 80)
Security Features WPA/WPA2, SSID isolation, client whitelist/blacklist
Roaming Layer 2 & Layer 3 roaming
Mesh & Optimization Reyee SON, WIO, cloud provisioning
Power Consumption ≤ 8 W via 802.3af/at PoE
Dimensions / Weight 126×86×50 mm; 0.24 kg
Temp / Humidity –30 °C to +65 °C; 0–100% non-condensing
Certifications CE, RoHS, IEC, EMC norms; IEC vibration, SRRC radio, MTBF >250,000 h
