Dual‑Band MU‑MIMO (AC1300)
Dual‑stream radios deliver 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz for up to 1.267 Gbps total. -
Fast Ethernet + PoE‑Powered
Includes two 10/100 Mbps Ethernet ports—one supports IEEE 802.3af/at PoE+ input (≤ 8 W)—ideal for plug-and-play installation. -
Efficient Technology
Wave 2 MU‑MIMO and OFDMA boost efficiency in multi-device situations; WIO (Wi‑Fi Intelligent Optimization) enables one-click tuning. -
Mesh-Ready with Cloud Setup
Reyee SON allows zero-touch, app-based provisioning via Ruijie Cloud. Build a full mesh network in under 3 minutes. -
Layer 3 Roaming & Agile Management
Supports Layer 3 roaming for uninterrupted performance across subnets. Managed via cloud, Web UI, or SNMP. -
Low-Profile Wall Design
Slim 86 × 86 × 29.3 mm body, weighing ~140 g—blends into interiors without bulky frames.

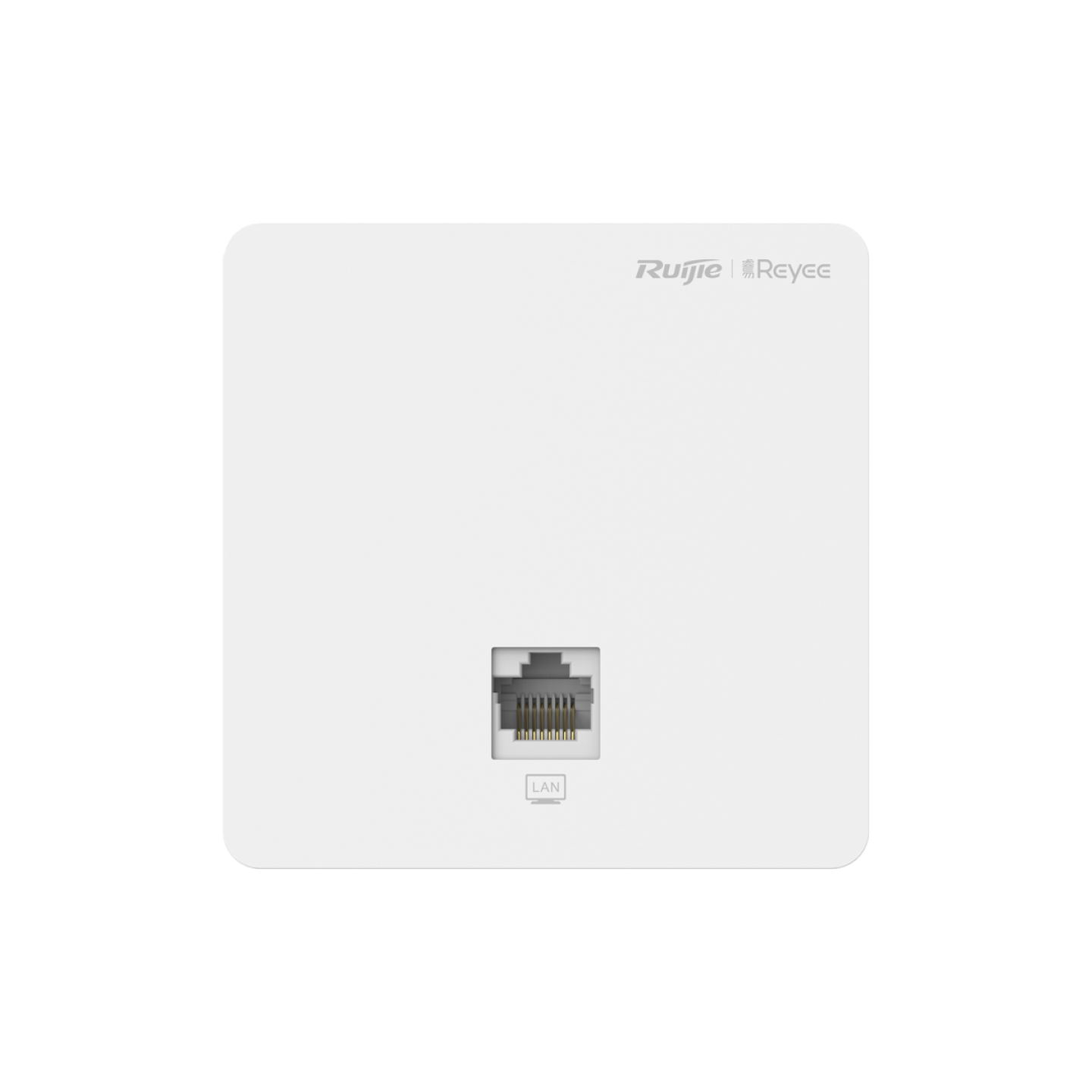

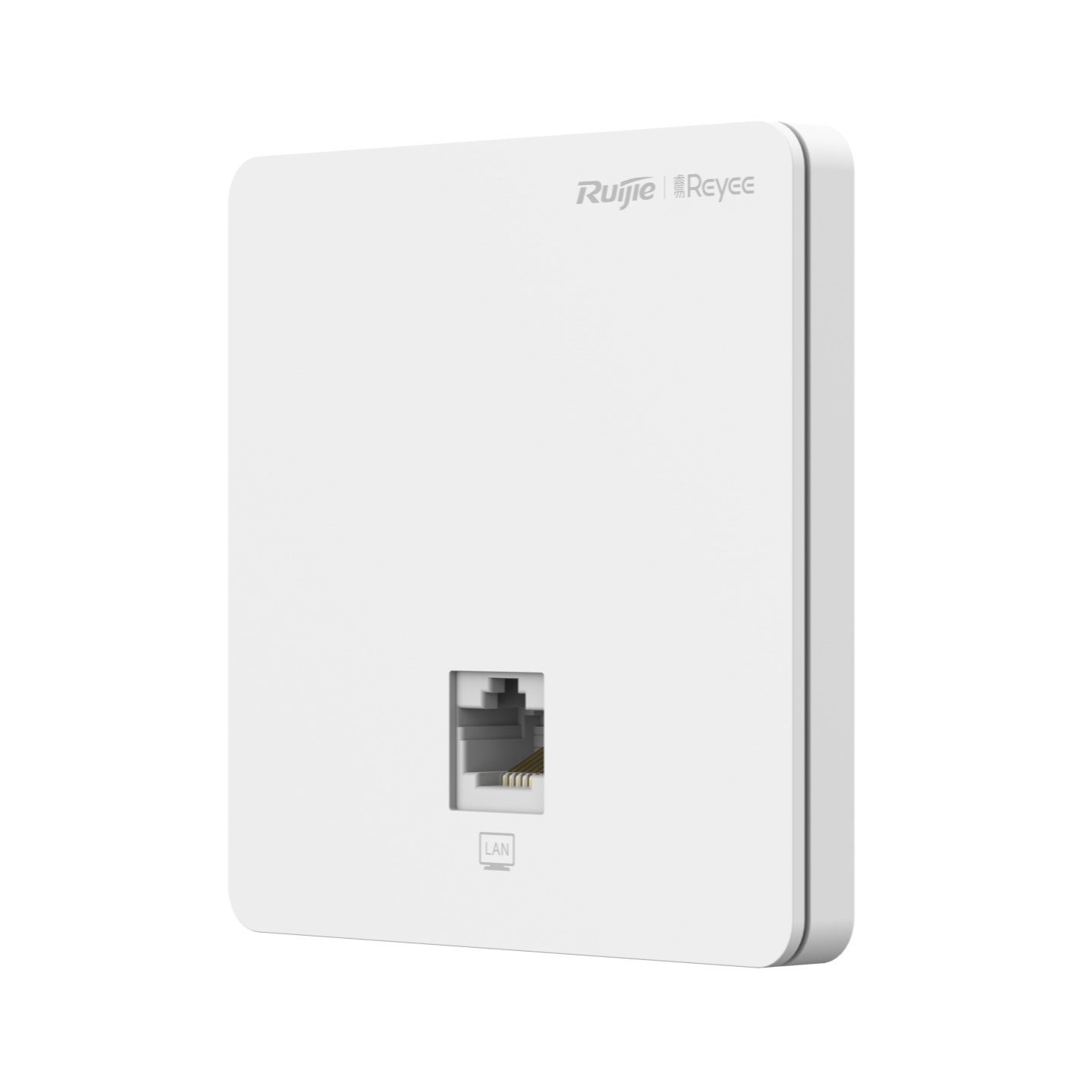

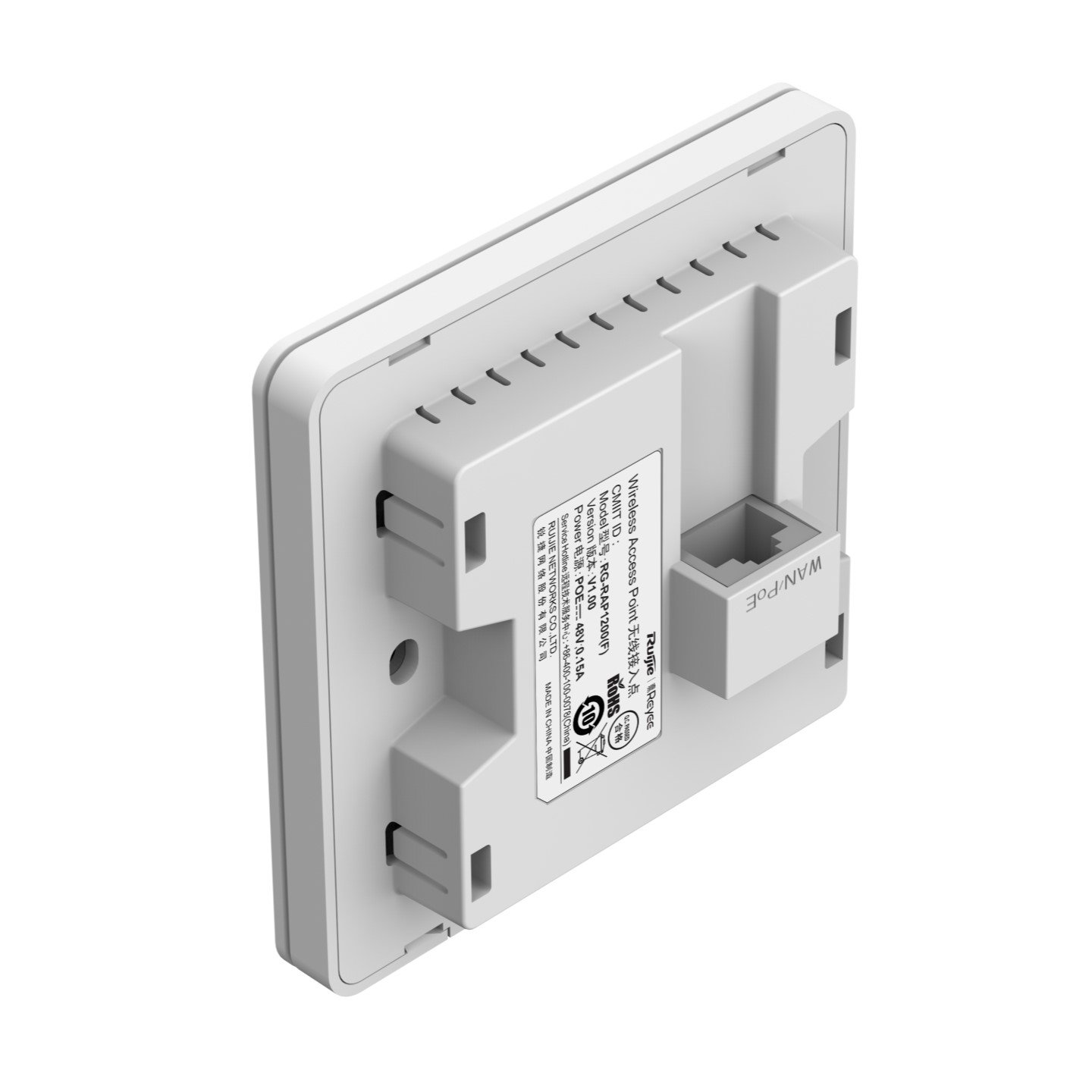

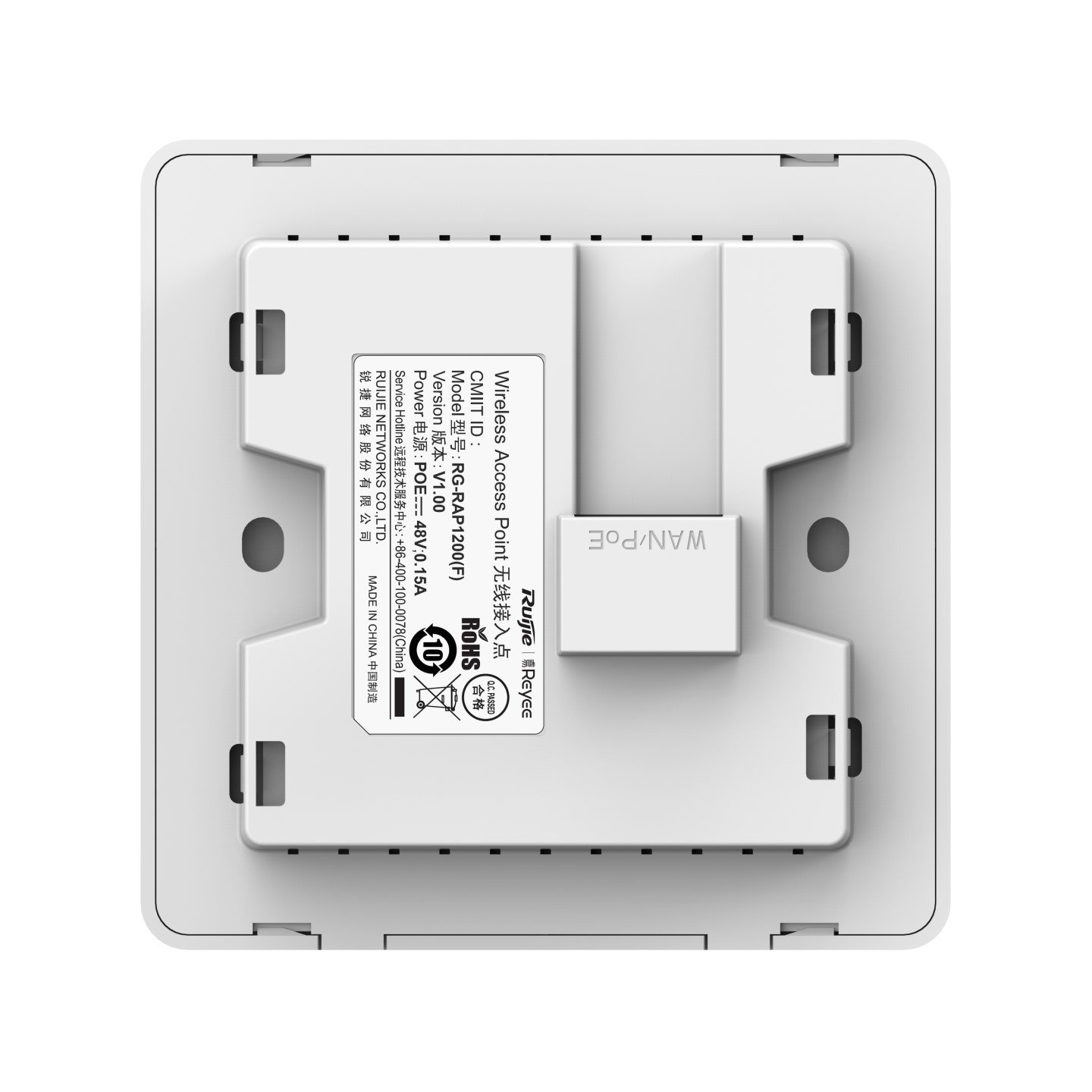

RG‑RAP1200 (F) AC1300 Wall‑Mounted Wi‑Fi 5 AP – Dual FE PoE, 1.27 Gbps
Compact AC1300 access point delivering up to 1.267 Gbps combined throughput (400 Mbps @2.4 GHz + 867 Mbps @5 GHz). Equipped with dual Fast‑Ethernet ports (one PoE+), MU‑MIMO, OFDMA, Reyee self-optimizing mesh, and 3-minute cloud setup—supports ~110 users.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | RG‑RAP1200 (F) |
| Wi‑Fi Standard | IEEE 802.11a/b/g/n/ac Wave 2 |
| MIMO Configuration | Dual‑stream 2×2 on both bands |
| Max Throughput | 400 Mbps @2.4 GHz, 867 Mbps @5 GHz (total ~1.267 Gbps) |
| Ethernet Ports | 2×10/100 Mbps (1×PoE+ input) |
| Power Consumption | ≤ 8 W via PoE+ |
| Client Capacity | Supports approx 110 users |
| Roaming Support | Layer 3 roaming (Wi‑Fi handoff) |
| Mesh Support | Reyee Mesh via SON |
| Dimensions & Weight | 86×86×29.3 mm; ~140 g |
| Operating Conditions | 0–40 °C; 5–95% RH non-condensing |
| Certifications & Warranty | CE, RoHS; 3‑year warranty |
Based on 0 reviews
Be the first to review “RG‑RAP1200 (F) AC1300 Wall‑Mounted Wi‑Fi 5 AP – Dual FE PoE, 1.27 Gbps”
