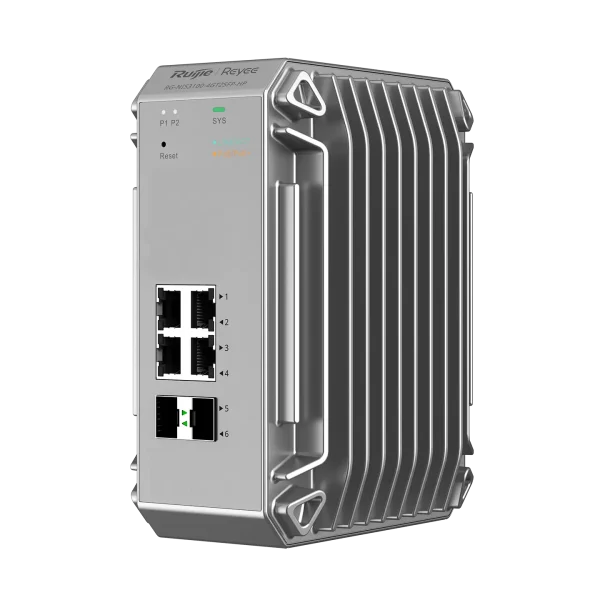

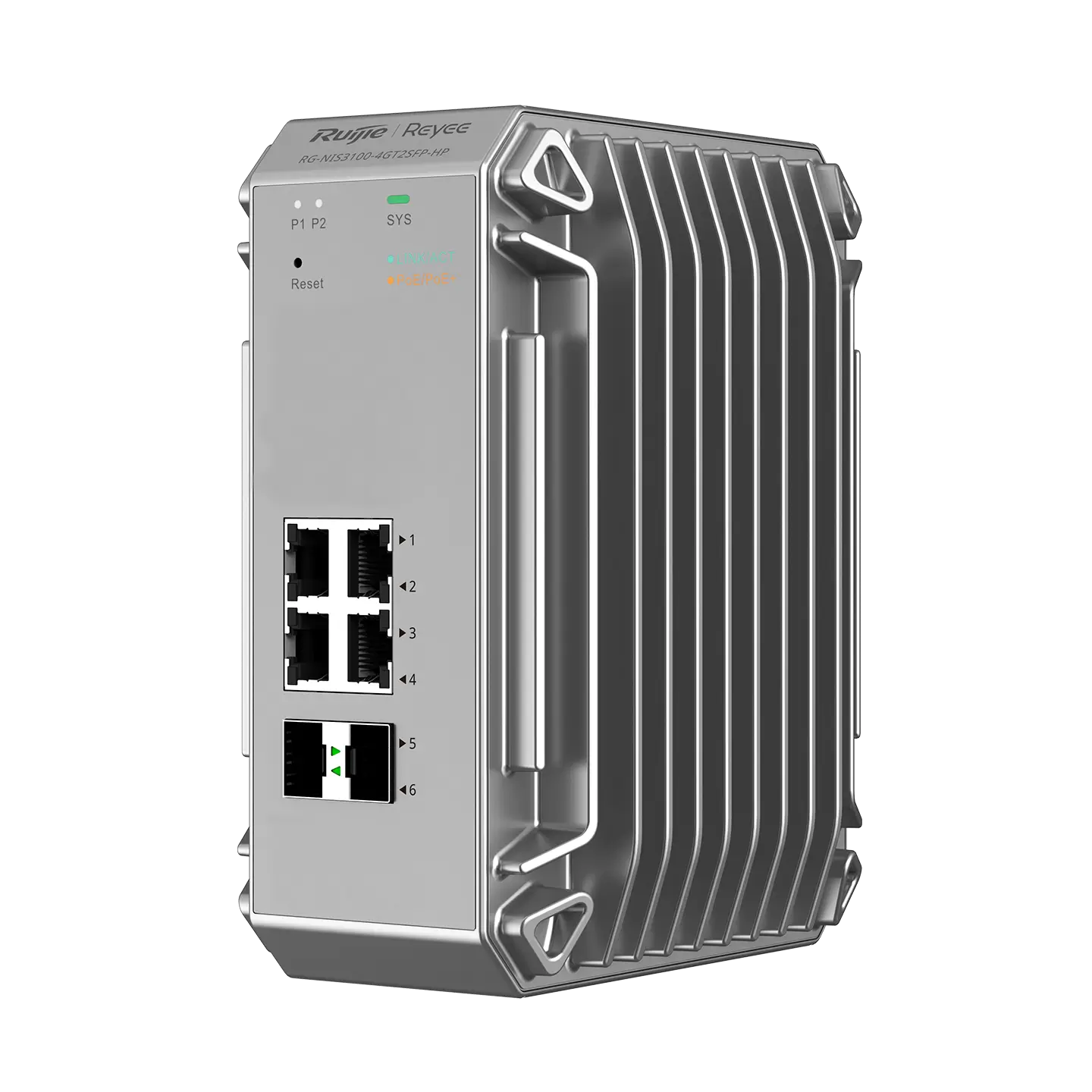

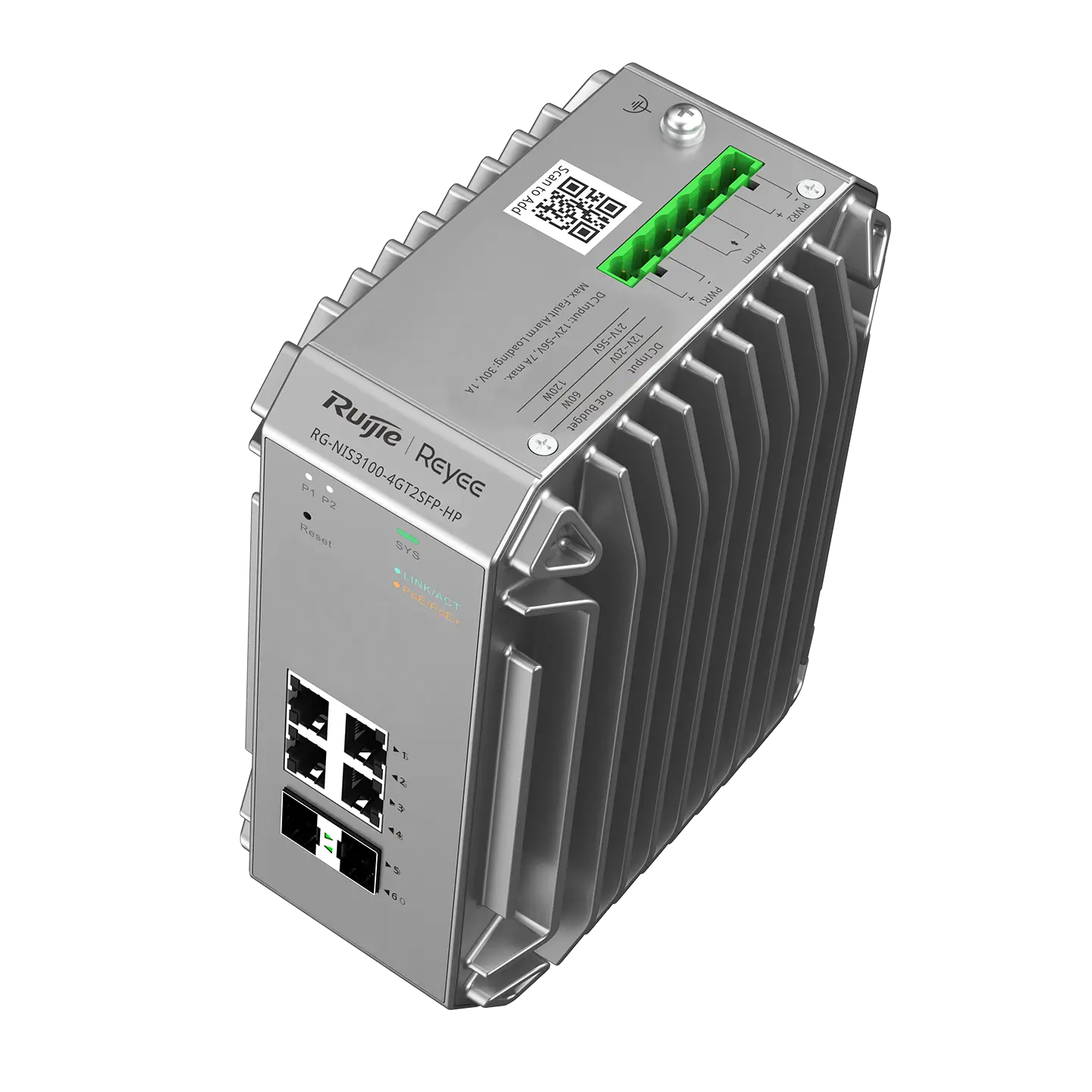

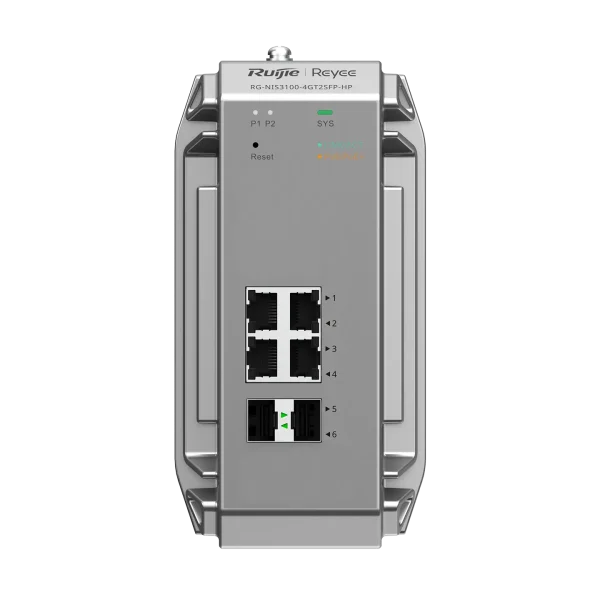

RG‑NIS3100‑4GT2SFP‑HP Industrial PoE+ Switch – 4×Gigabit + 2×SFP, –40°C to 80°C

Durable industrial PoE+ switch with 4 Gigabit ports + 2 SFP uplinks, delivering up to 120 W total PoE power. Capable of operating in –40 °C to 80 °C conditions, with 8 kV surge protection, ERPS redundancy, SON self-configuration, and remote cloud or local web/SNMP management—ideal for surveillance, automation, and outdoor networks.

Add to quote

  • Extreme-Environment Ready
    Withstands –40 °C to +80 °C operating temperatures, features IP40 protection, outdoor-grade powder coating, conformal PCB coating, and gold-plated RJ45 ports to resist corrosion and dust in industrial or coastal settings.

  • Reliable PoE+ and Uplink Support
    Delivers 30 W per port (IEEE 802.3af/at) across four RJ45 PoE+ ports, with a maximum budget of 120 W. Includes two SFP slots for fiber uplinks.

  • Fast and Resilient Layer 2 Switching
    Built for performance with a 12 Gbps switching capacity, 8.9 Mpps forwarding rate, 4.1 Mbit buffer, and support for up to 4,094 VLANs.

  • Advanced Industrial Networking Protocols
    Supports STP/RSTP, ERPS (Ethernet ring protection with <50 ms failover), DHCP snooping, IGMP v1/2/3 snooping, ACLs, loop prevention, port mirroring, and SON (Self-Organizing Network) for automated setup—both with local or cloud control.

  • Rugged Power & Protection Features
    Dual 12–56 V DC power inputs with terminal block for redundancy; surge and lightning protection rated at 6 kV EFT and 8 kV ESD; fanless and silent operation.

  • Robust Construction & Simple Deployment

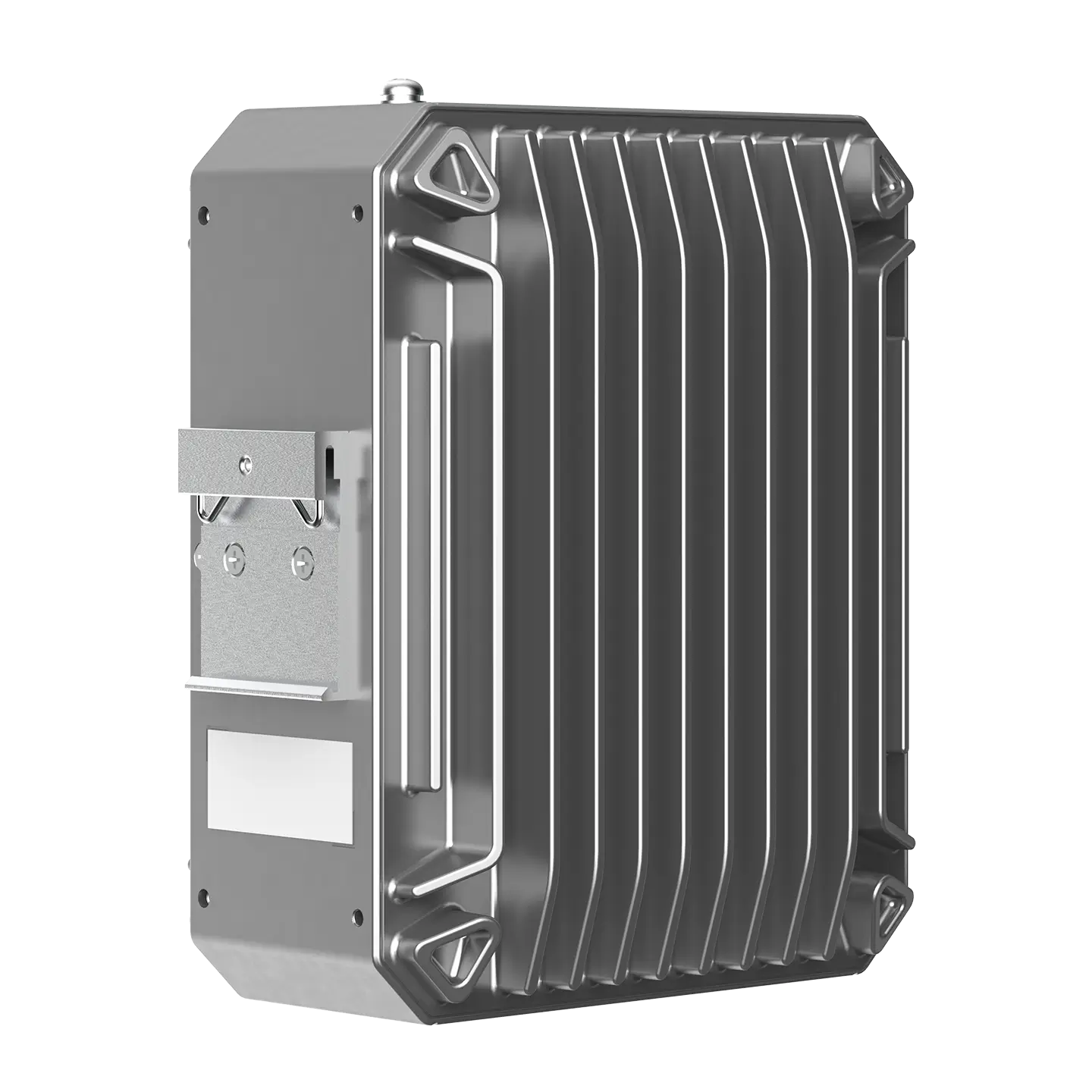

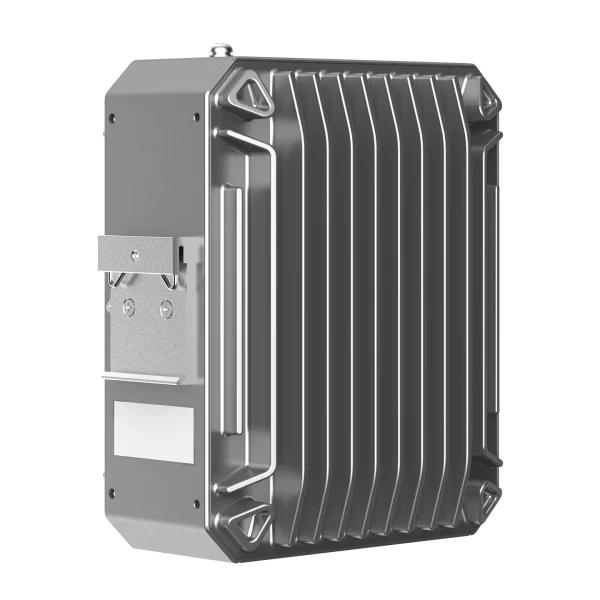

    Compact (85×132×165 mm) DIN-rail or wall-mount design, weighing ~1.9 kg, with extensive industrial certifications and 5-year warranty coverage.

Categories: , Brand:

Technical Specifications

Feature Specification
Model RG‑NIS3100‑4GT2SFP‑HP
Ethernet Ports 4×10/100/1000 Mbps RJ45 (PoE+)
SFP Ports 2×1 Gbps SFP uplinks
PoE Standard IEEE 802.3af/at, 30 W/port, 120 W total
Switch Capacity 12 Gbps
Forwarding Rate 8.93 Mpps
Packet Buffer 4.1 Mbit
MAC Table Size 8,000 entries
Max VLANs 4,094
Surge & ESD Protection 6 kV surge; 8 kV ESD
Network Protocols STP/RSTP, ERPS, DHCP/IGMP snooping, ACLs, Loop Prevention, SON, Port Mirroring
Power Input Range 12–56 V DC (terminal block)
Operating Temperature –40 °C to +80 °C
Enclosure & Mounting Rugged aluminum casing, IP40; DIN-rail/wall-mount
Dimensions 85 × 132 × 165 mm
Weight (Packaged) ~1.9 kg
MTBF 250,000 hours
Warranty 5 years
Certifications IEC 61000, IP40 rated
Fan Fanless, silent operation
