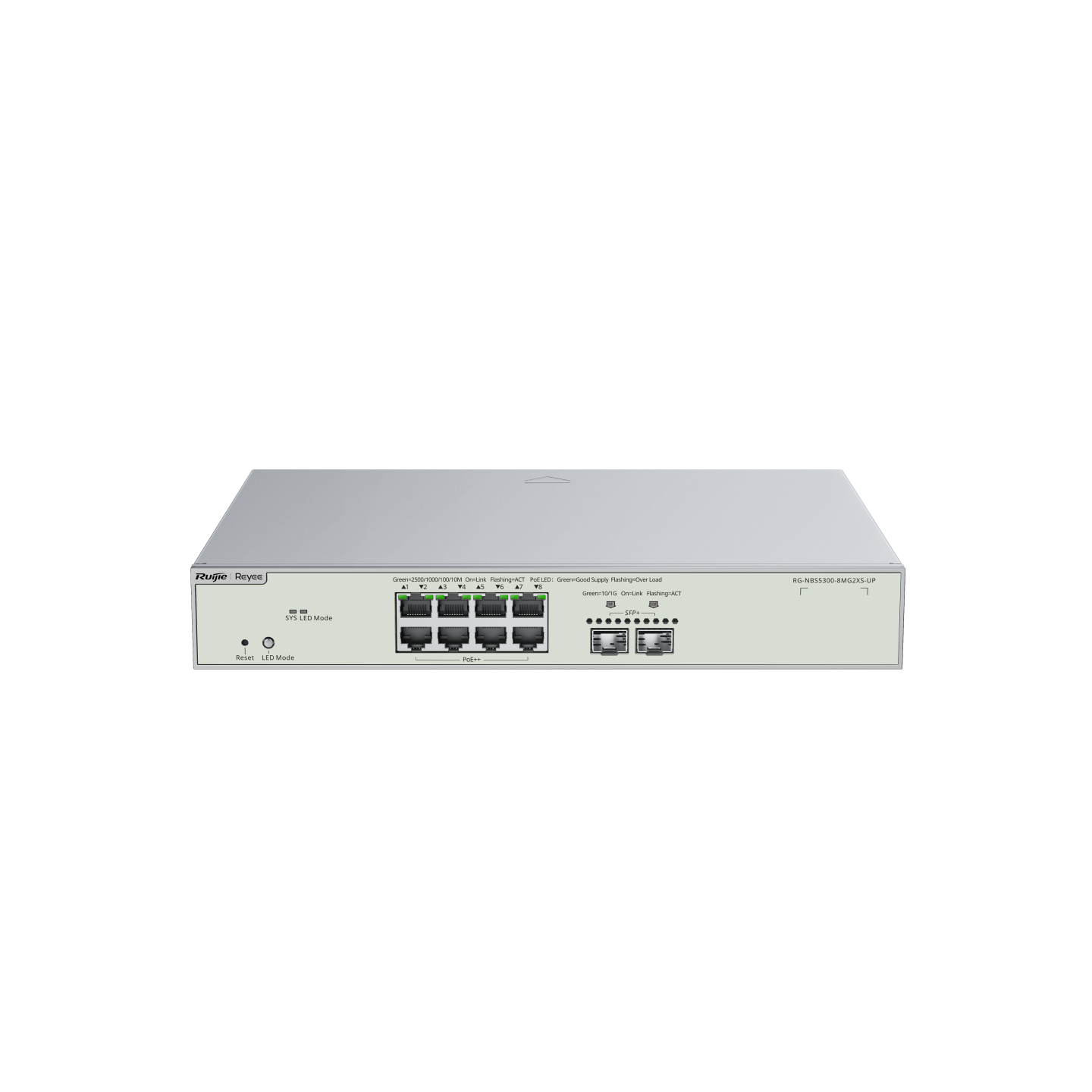

RG‑NBS5300 8‑Port Multi‑Gigabit PoE++ Layer 3 Switch – 2.5 GbE & 10 Gbps Uplinks

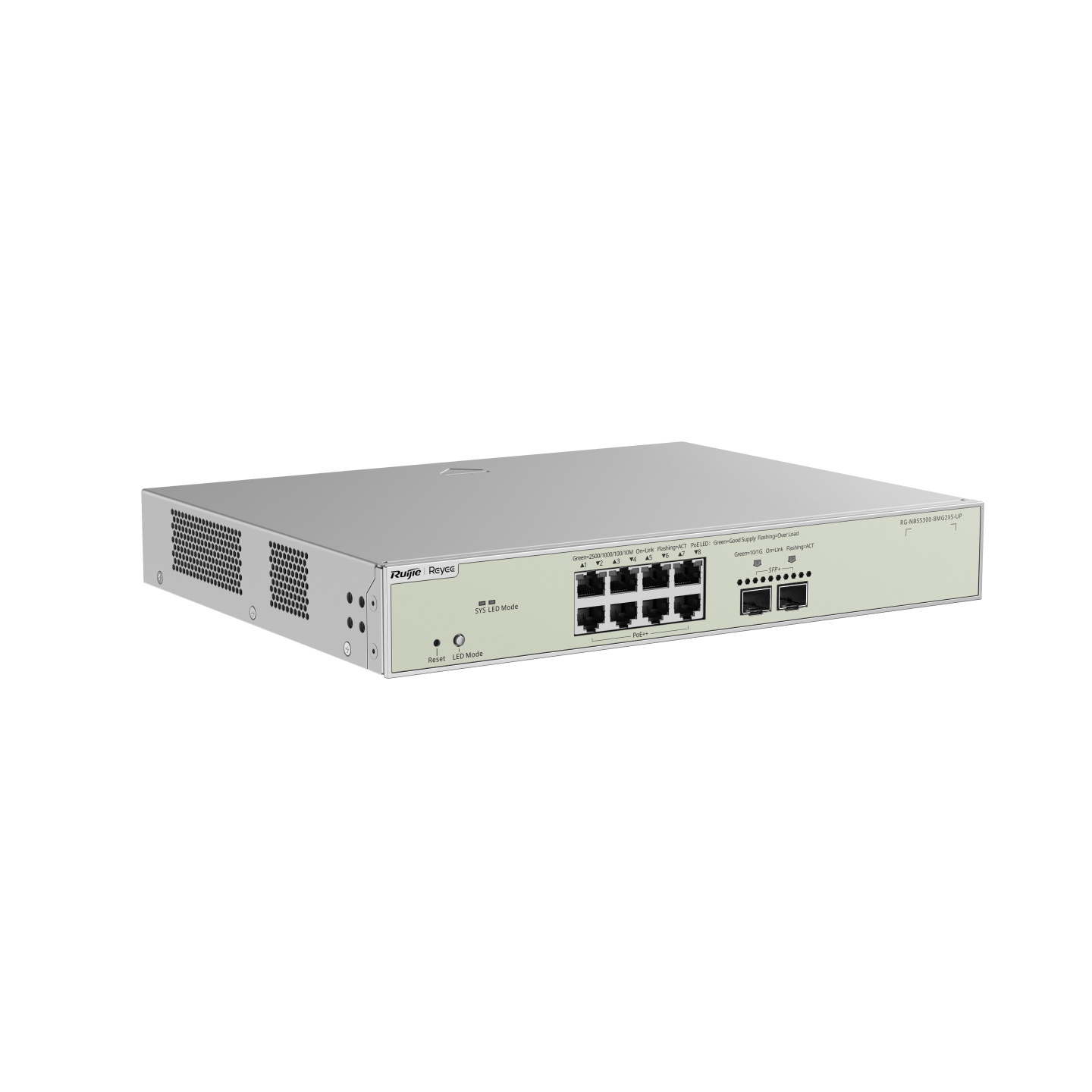

RG‑NBS5300 8‑Port Multi‑Gigabit PoE++ Layer 3 Switch – 2.5 GbE & 10 Gbps Uplinks - Image 2

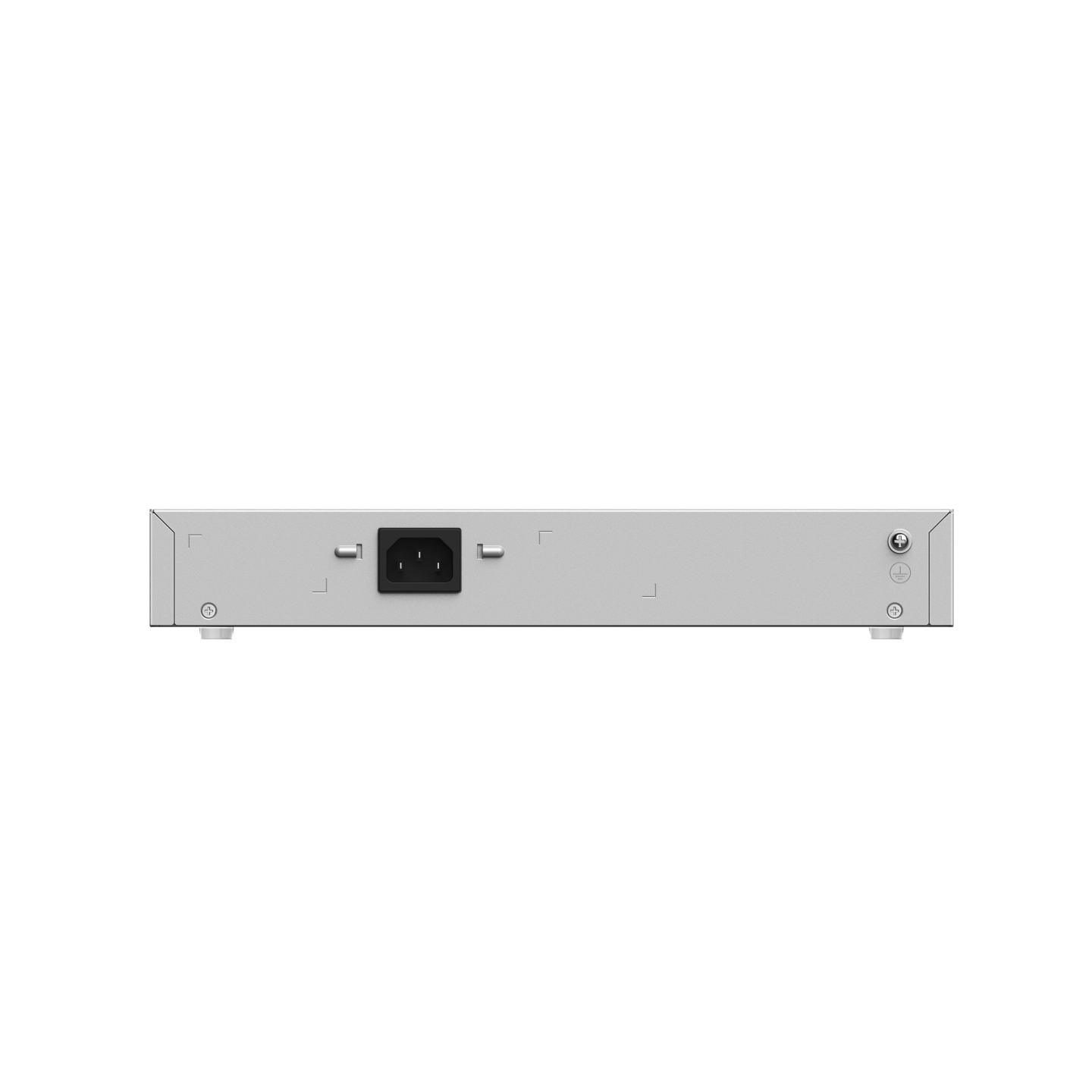

RG‑NBS5300 8‑Port Multi‑Gigabit PoE++ Layer 3 Switch – 2.5 GbE & 10 Gbps Uplinks - Image 3

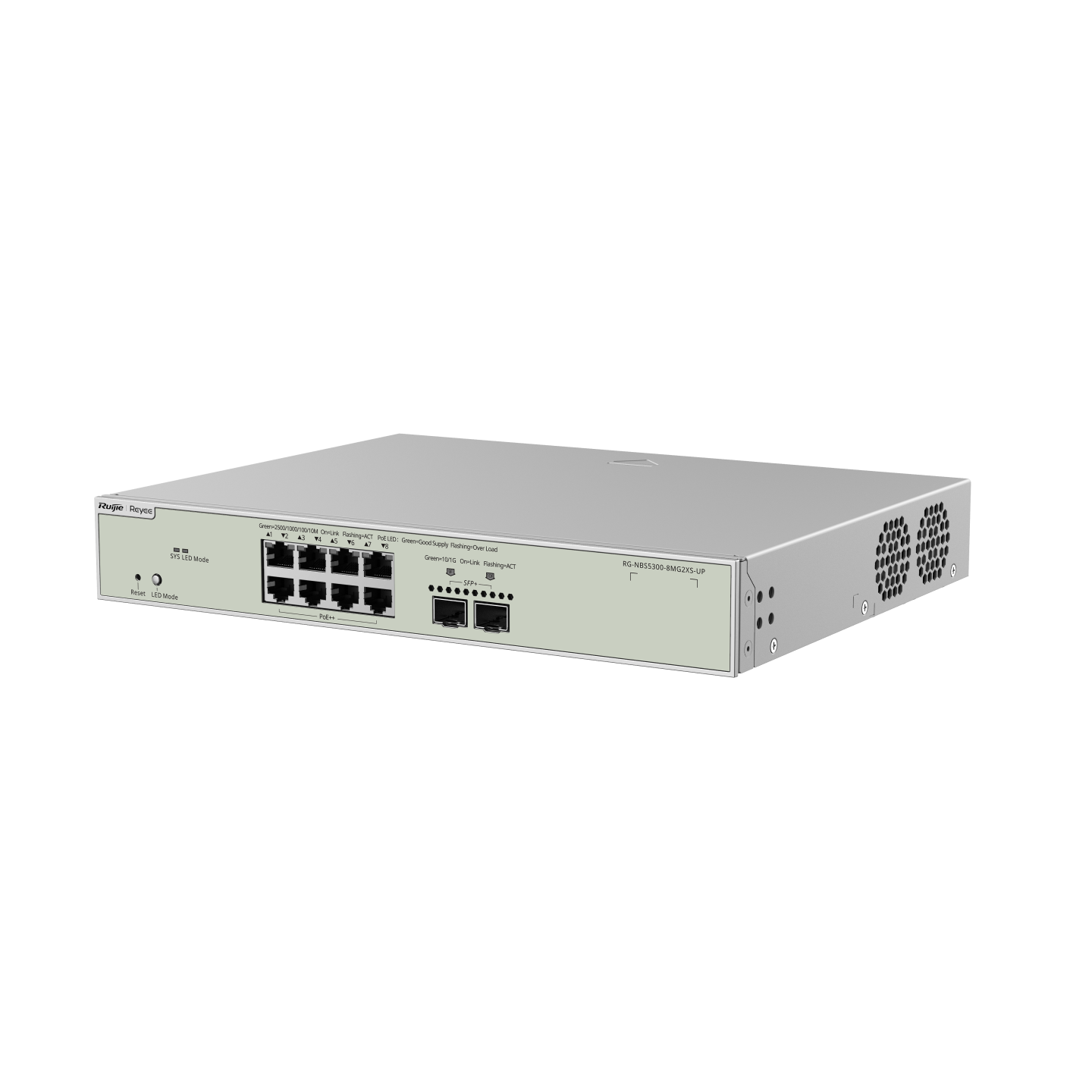

RG‑NBS5300 8‑Port Multi‑Gigabit PoE++ Layer 3 Switch – 2.5 GbE & 10 Gbps Uplinks - Image 4
,

RG‑NBS5300 8‑Port Multi‑Gigabit PoE++ Layer 3 Switch – 2.5 GbE & 10 Gbps Uplinks

High-performance Layer 3 switch featuring eight 2.5 GbE PoE++ ports (each up to 90 W), dual 10 Gbps SFP+ uplinks, and a 370 W total PoE budget. Offers 80 Gbps switching capacity, advanced VLAN, ACL, DHCP snooping, and cloud/web/SNMP management—ideal for Wi‑Fi 6 APs, IP cameras, and smart office networks.

Add to quote

  • Faster Than Gigabit, Ready for Wi‑Fi 6
    Eight RJ45 ports support 10/100/1000/2500 Mbps speeds, ideal for high-performance APs and devices exceeding standard gigabit limits.

  • High-Power PoE++ for Demanding Devices
    Meets 802.3af/at/bt standards with all ports offering PoE++—supporting up to 90 W each and 370 W total—perfect for high-end cameras and APs.

  • Enterprise-Level Layer 3 Features
    Offers static routing, RIP, and OSPF support with 80 Gbps switching capacity and up to 58.7 Mpps forwarding—ideal for network segmentation and backbone routing.

  • Comprehensive Security & Network Control
    Includes VLAN, voice VLAN, ACLs, DHCP snooping, 802.1X, IP-MAC binding, storm control, and DoS protection to safeguard traffic and prevent attacks.

  • Cloud & Local Management Options
    Zero-touch provisioning via Ruijie Cloud and full access through Web UI, CLI, or SNMP v1/2c/3. Monitor PoE usage, set VLANs, and view stats from anywhere.

  • Reliable, Rack-Mountable Design
    Compact 300×233×43.6 mm chassis weighing ~3.25 kg. Features dual-fan cooling, 6 kV port surge protection, and MTBF of 400,000 h—backed by a 5-year warranty.

Categories: , Brand:

Technical Specifications

Feature Specification
Model RG‑NBS5300‑8MG2XS‑UP
Ethernet Ports 8× 10/100/1000/2500 Mbps RJ45 PoE++
Uplinks 2× 10 Gbps SFP+
PoE Standard 802.3af/at/bt; 90 W per port; 370 W total
Layer Type Layer 3
Switching Capacity 80 Gbps
Forwarding Rate 58.72 Mpps
MAC Table Size 16,000 entries
ARP Table 2,000 entries
Max VLANs 4,094
Switching Cache 12 Mbit
Jumbo Frame MTU 9,216 bytes
Security Features ACLs, IP-MAC binding, DHCP snooping, 802.1X, storm/DoS control
Routing Protocols Static, RIP, OSPF
Fan Cooling Dual fan with adaptive speed
Surge Protection 6 kV
Dimensions 300 × 233 × 43.6 mm
Weight ≈ 3.25 kg (packaged)
MTBF 400,000 hours
Operating Conditions 0–50 °C; 10–90 % RH
Warranty 5 years
