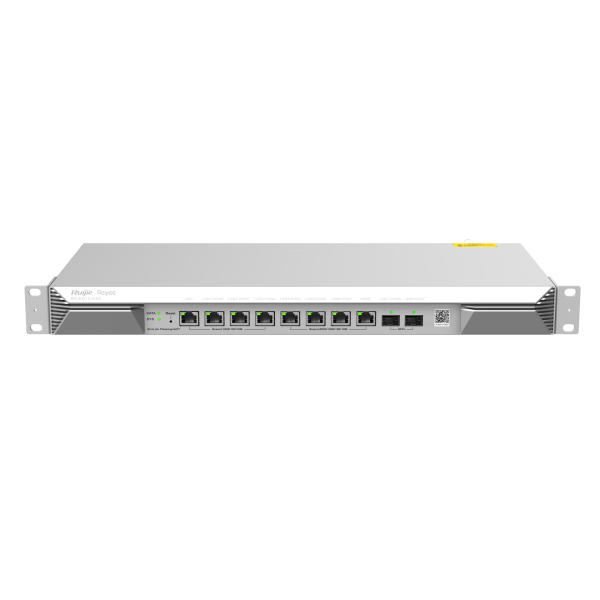

RG‑EG1510XS Edge Router – 4 Gbps, 1 500 Clients, 10GbE, VPN Hub

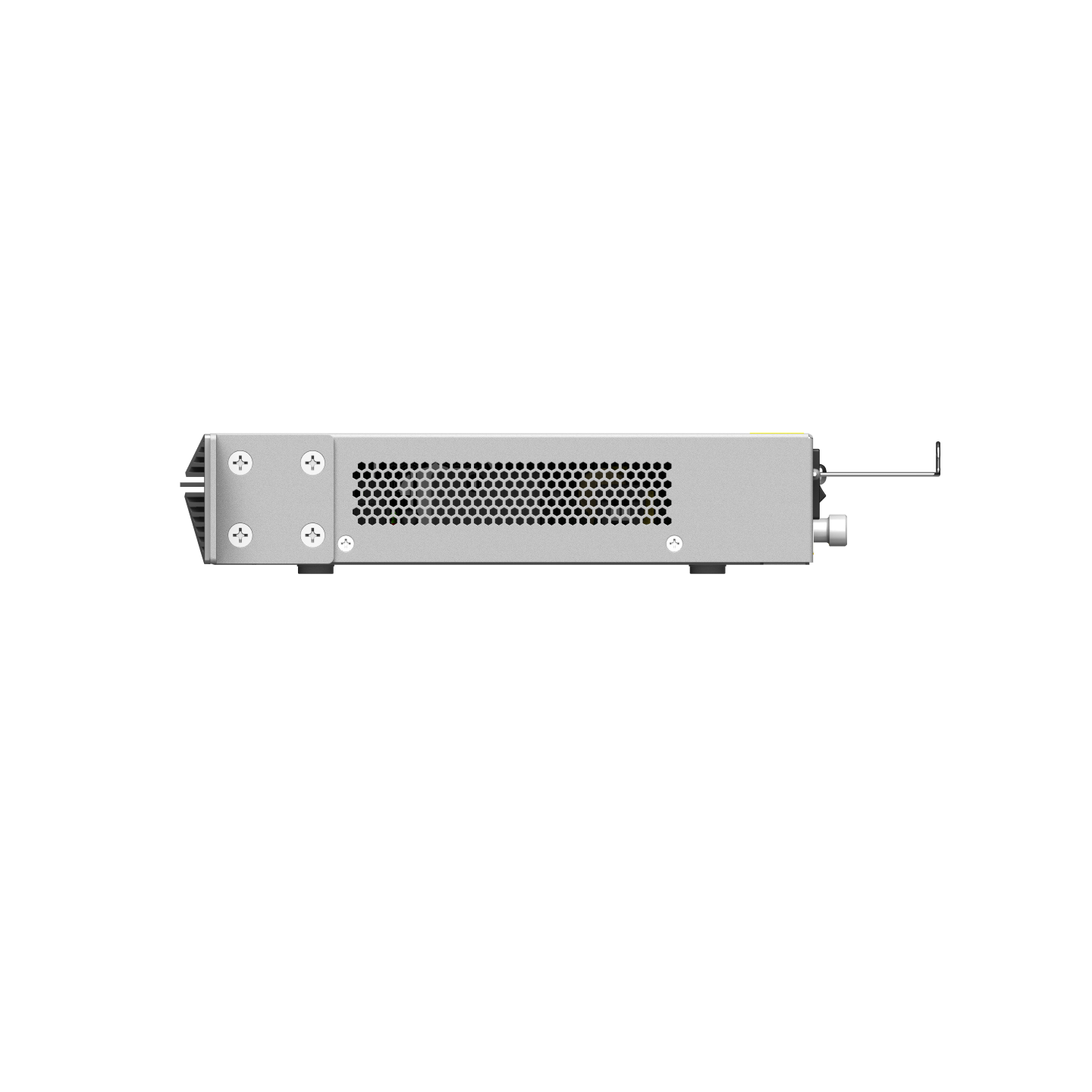

RG‑EG1510XS Edge Router – 4 Gbps, 1 500 Clients, 10GbE, VPN Hub - Image 2

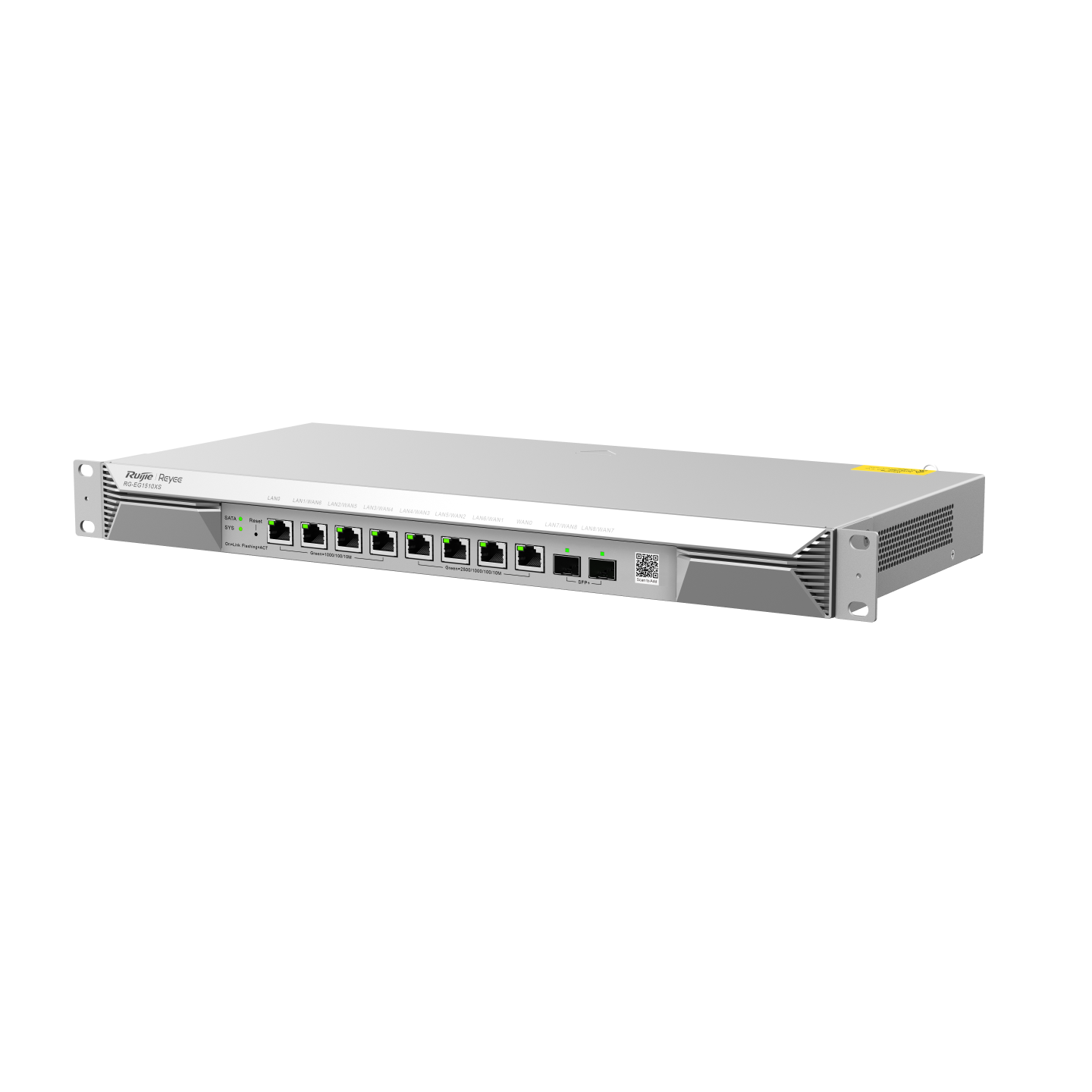

RG‑EG1510XS Edge Router – 4 Gbps, 1 500 Clients, 10GbE, VPN Hub - Image 3

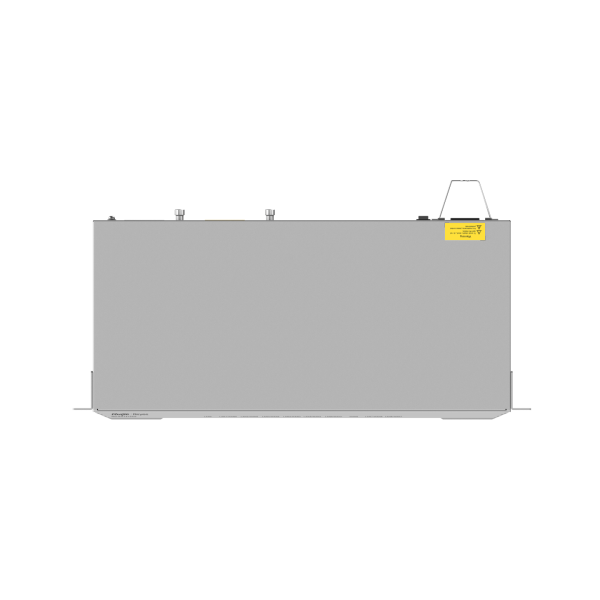

RG‑EG1510XS Edge Router – 4 Gbps, 1 500 Clients, 10GbE, VPN Hub - Image 4
,

RG‑EG1510XS Edge Router – 4 Gbps, 1 500 Clients, 10GbE, VPN Hub

High-capacity edge router featuring 4× 2.5 GbE + 4× 1 GbE RJ45 plus 2× 10 GbE SFP+, up to 4 Gbps forwarding, 1 000 VPN tunnels, and 1 TB local syslog storage. Fully cloud-managed via Ruijie and Reyee App for streamlined network control.

Add to quote

  • Multi-Gig Port Configuration
    Integrates 4× 2.5 GbE and 4× 1 GbE RJ45 ports, plus 2× 10 GbE SFP+ uplinks for seamless high-speed backbone and WAN flexibility.

  • High Throughput & User Scale
    Capable of 4 Gbps line-rate forwarding, with 3 Gbps full service throughput. Designed to serve up to 1 500 simultaneous connections reliably.

  • VPN & Security Suite
    Handles 1 000 VPN tunnels (IPsec, L2TP, PPTP, OpenVPN), with throughput up to 1.7 Gbps (L2TP/PPTP), and includes DPI, firewall, NAT, ACL, anti-flood, and anti-DoS protections.

  • Advanced Routing & Failover
    Supports up to 7 WAN links (via RJ45 and SFP+), intelligent multi-WAN load balancing, policy routing, static/RIP/OSPF, VLANs, PPPoE server, DNS/DHCP/NTP/DDNS—built for network resilience.

  • Local Syslog Storage
    Includes a 2.5″ HDD slot (up to 1 TB) for 4–5 months of syslog/traffic data, ideal for audit and network analytics.

  • Cloud & On-Prem Management
    Offers zero-touch deployment with Ruijie Cloud or Reyee App, plus Web UI (eWeb), SNMP, and open API support. Fully integrates APs and switches under one platform.

  • Enterprise-Ready Hardware
    Features a quad-core 1.8 GHz CPU, 4 GB RAM, 128 MB NAND + 8 GB eMMC flash, fanless cooling, and fits a 1U rack chassis (440 × 210 × 43.6 mm, ~3 kg).

Categories: , Brand:

Technical Specifications

Feature Specification
Model RG‑EG1510XS
Concurrent Users Up to 1 500
Throughput 4 Gbps (line-rate); 3 Gbps (secure services)
VPN Support 1 000 tunnels (IPsec/L2TP/PPTP/OpenVPN); IPsec up to 900 Mbps; L2TP 1.4 Gbps; OpenVPN 400 Mbps
Ports 4× 2.5 GbE RJ45 + 4× 1 GbE RJ45; 2× 10 GbE SFP+
Syslog Storage 2.5″ SATA bay (up to 1 TB)
RAM / Storage 4 GB DDR4; 128 MB NAND + 8 GB eMMC
CPU Quad-core 1.8 GHz
Power Consumption <20 W internal PSU
Form Factor 1U rack, 440×210×43.6 mm; 3 kg
Operating Conditions 0–40 °C; 10–90 % RH
Certifications CE, RoHS; mount brackets and accessories included
