Cutting‑edge Wi‑Fi 7 (802.11be) – Five flexible radios (2.4 GHz, dual 5 GHz, 6 GHz, plus an AI scanning radio) for maximum throughput and AI-enhanced performance.
-
Blazing 24.436 Gbps combined data rate – Supports 18 spatial streams for ultra‑low latency and high bandwidth.
-
Dedicated AI radio – Monitors all frequency bands without impacting user traffic, optimizing roaming, detecting anomalies, and preventing service gaps.
-
Flexible high-speed uplinks – Includes 10 GbE SFP+/RJ45 combo, 10 GbE electrical, and a 1 GbE downlink port.
-
Built-in smart antennas – Enables beamforming and intelligent coverage across 2.4/5/6 GHz bands.
-
Power options: PoE++ or DC – Supports IEEE 802.3bt PoE, PoE+, or 54 V DC power for deployment flexibility.
-
Robust enterprise security – WPA3, rogue AP detection, dynamic ACLs, and comprehensive policy enforcement.
-
Seamless cloud management – Fully compatible with Ruijie Smart Network Commander (SNC) and WIS Cloud for centralized control.

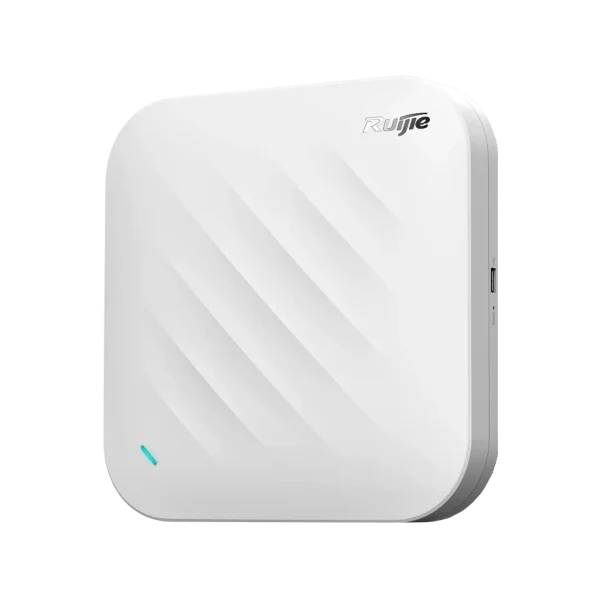

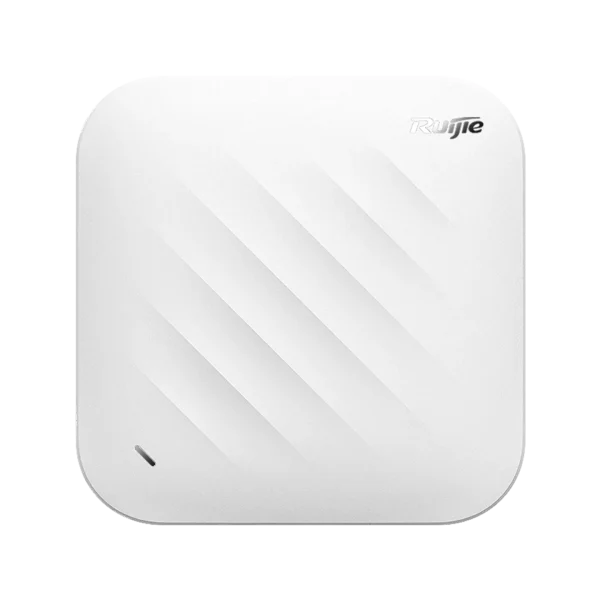

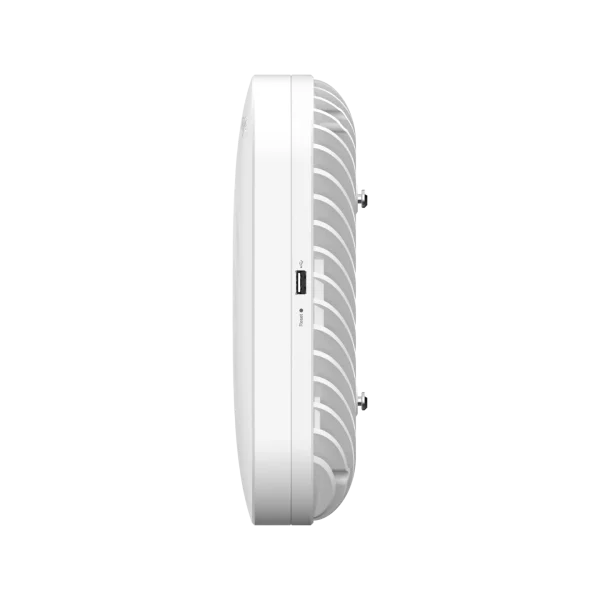

RG‑AP9861‑R Wi‑Fi 7 Indoor Access Point – 24.4 Gbps, 5‑Radio
The RG‑AP9861‑R is a top-tier indoor Wi‑Fi 7 access point, engineered for high-density settings like campuses, enterprise offices, and public venues. Featuring a powerful five-radio design—including a dedicated AI radio—it delivers ultra-fast 24.4 Gbps peak throughput and supports up to 18 spatial streams. With multiple 10 GbE uplink options and full PoE++ readiness, this AP offers robust, AI-driven coverage and seamless roaming performance.
Product Specifications
| Feature | Specification |
|---|---|
| Model | RG‑AP9861‑R |
| Wi‑Fi Standard | IEEE 802.11be/ax/ac/n |
| Radios | 5 (2.4 GHz ×1, 5 GHz ×2, 6 GHz ×1, AI scanning ×1) |
| Spatial Streams | 18 total (4-stream per client radio) |
| Peak Throughput | Up to 24.436 Gbps |

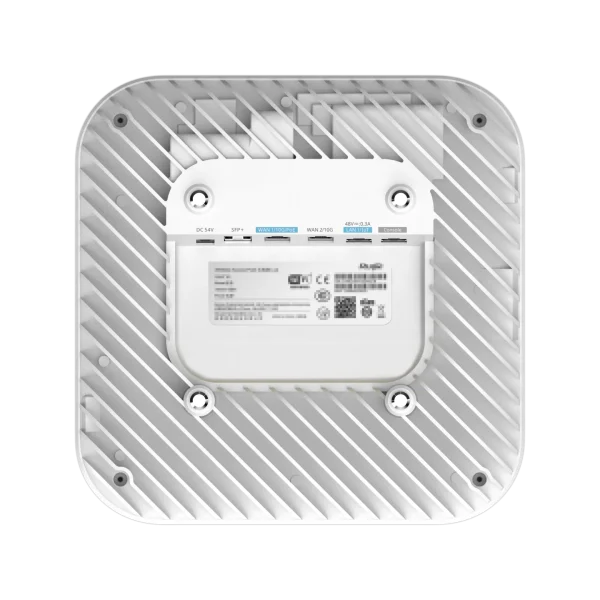

| Uplink Ports | 1×10 GbE SFP+/RJ45 combo, 1×10 GbE electrical |
| Downlink Port | 1×1 GbE RJ45 |
| Antennas | Internal omnidirectional smart antennas |
| Power Options | PoE++ (802.3bt), PoE+ (802.3at), PoE (802.3af), or DC 54 V/1.25 A |
| Bluetooth | Supports Bluetooth 5.3 |
| Dimensions | 245 × 245 × 67 mm |
| Weight | ≤ 1.5 kg |
| Operating Temp | –10 °C to +50 °C |
| Mounting | Ceiling or wall with included bracket |
| Security Standards | WPA3, rogue AP detection, ACL, etc. |
| Management | Cloud-managed (SNC, WIS) or local modes |
| Warranty | Limited lifetime (with Ruijie terms) |
