Wi‑Fi 7 (802.11be) – Dual-radio 2×2 MIMO supporting 4096‑QAM & OFDMA, achieving peak throughput of 3.570 Gbps.
-

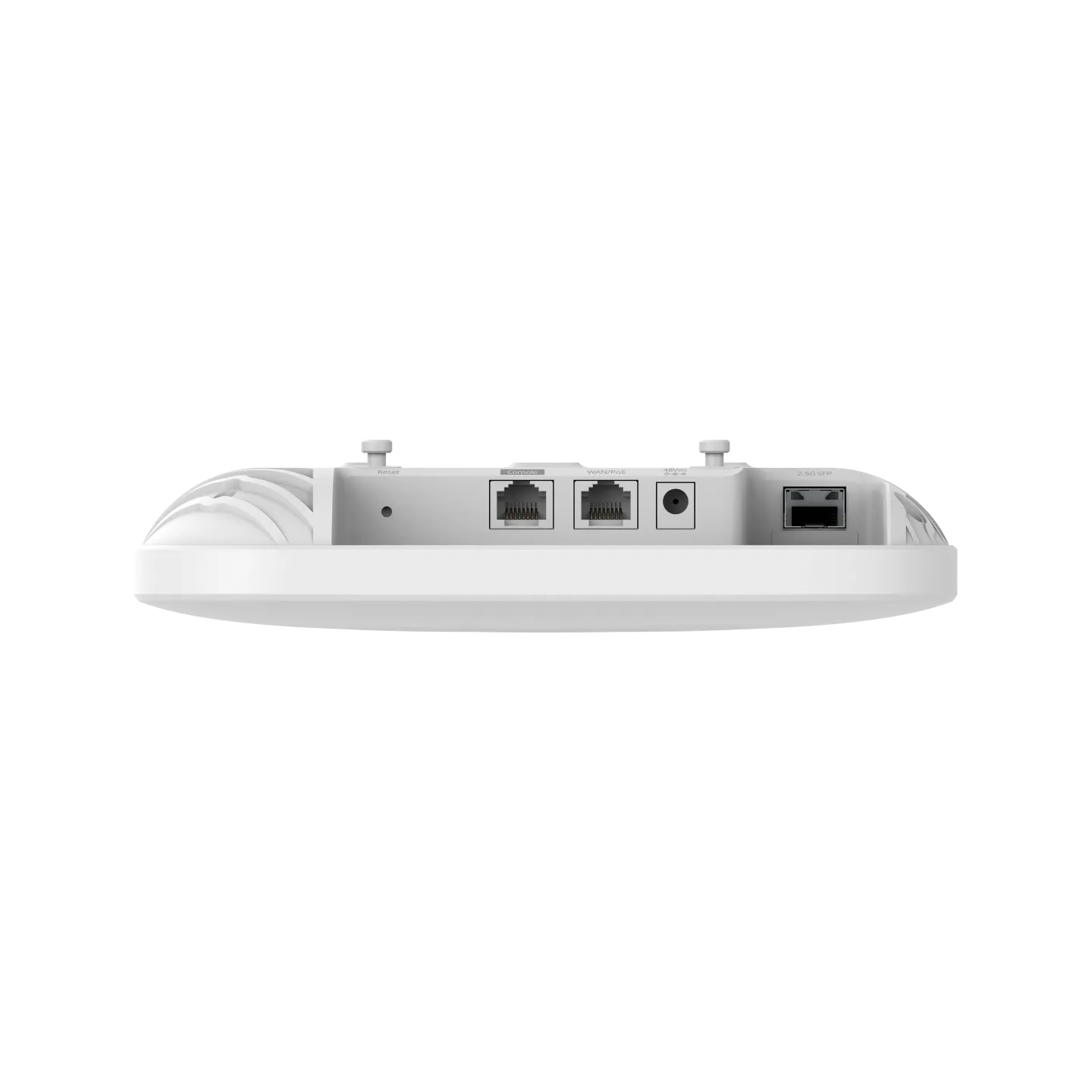

Flexible 2.5 GbE Uplinks – Includes both a 2.5 GbE SFP port and a 2.5 GbE RJ45 port for versatile gigabit network backhauls.
-
Smart Antenna System – Built-in intelligent antennas dynamically steer and optimize coverage for improved user experience.
-
Digital Twin Control – Enables network O&M efficiency gains (~30%) via visualized management features.
-
Enterprise‑Grade Security – Supports WPA3, WPA2, 802.1X, PPSK, with all common standards for secure authentication.
-
Multi-Mode Management – Operates in standalone (Fat), traditional (Fit), or cloud-controlled mode via Ruijie SNC.
-
Power over Ethernet or DC – Supports PoE or DC power for flexible deployments.
RG‑AP9220 Wi‑Fi 7 Indoor AP – Dual‑Radio 3.57 Gbps, 2.5 GbE
Upgrade to next-gen Wi‑Fi with the RG‑AP9220 indoor access point. This efficient dual-radio design supports Wi‑Fi 7 (802.11be) with 2×2 MIMO on both 2.4 GHz and 5 GHz bands, delivering combined speeds up to 3.57 Gbps. Equipped with dual 2.5 GbE ports and intelligent smart antennas, it’s ideal for small-to-medium enterprises needing robust connectivity, seamless roaming, and cloud-managed performance.
Product Specifications
| Feature | Specification |
|---|---|
| Model | RG‑AP9220 |
| Wi‑Fi Standard | IEEE 802.11be/ax/ac/n |
| Radio Configuration | Dual‑radio, 2×2 MIMO (both bands) |
| Peak Data Rate | Up to 3.570 Gbps combined |
| Ethernet Ports | 1×2.5 GbE SFP, 1×2.5 GbE RJ45 |
| Antenna Type | Integrated smart antennas |
| Power Support | PoE or DC input |
| Security | WPA3, WPA2, WPA, 802.1X, PPSK |
| Management Modes | Fat, Fit & Cloud (Ruijie SNC) |
| Temp Range | 0 °C–50 °C operating, –40 °C–70 °C storage |
| Humidity | 10–90 % RH operating, 5–95 % storage |
| Dimensions | 220 × 220 × 48 mm |
| Weight | ≤ 1.2 kg |
| Warranty | Limited lifetime |
Based on 0 reviews
Be the first to review “RG‑AP9220 Wi‑Fi 7 Indoor AP – Dual‑Radio 3.57 Gbps, 2.5 GbE”
