Wi‑Fi 6E Tri‑Radio (2.4/5/6 GHz): 6 spatial streams deliver ultra-low latency and high throughput—peak 7.78 Gbps combined.
-
Advanced Modulation: 1024‑QAM with OFDMA, MU‑MIMO, beamforming, DFS, STBC, LDPC, CDD/CSD for enhanced efficiency and stability.
-
Flexible Uplink Options: Includes 5 GE combo SFP/RJ45 port + 2.5/5 GbE RJ45 port + 1 GbE + console + USB 3.0.
-
Dual Power Modes: Supports 802.3af/at/bt PoE or 54 V DC; high-power PoE++ enables power over LAN2 and USB output.
-
Built-in Security: WPA3, 802.1X, PPSK; enterprise-grade encryption with rogue AP detection.
-
Hybrid/Cloud Management: Compatible with Ruijie WIS Cloud, SNC controllers, or local (fat/fit) operations.
-
Enterprise Resilience: Robust design with intelligent RF auto-adjust, seamless roaming (802.11k/v/r), PoE pass-through, and Bluetooth 5.1/ IoT readiness.

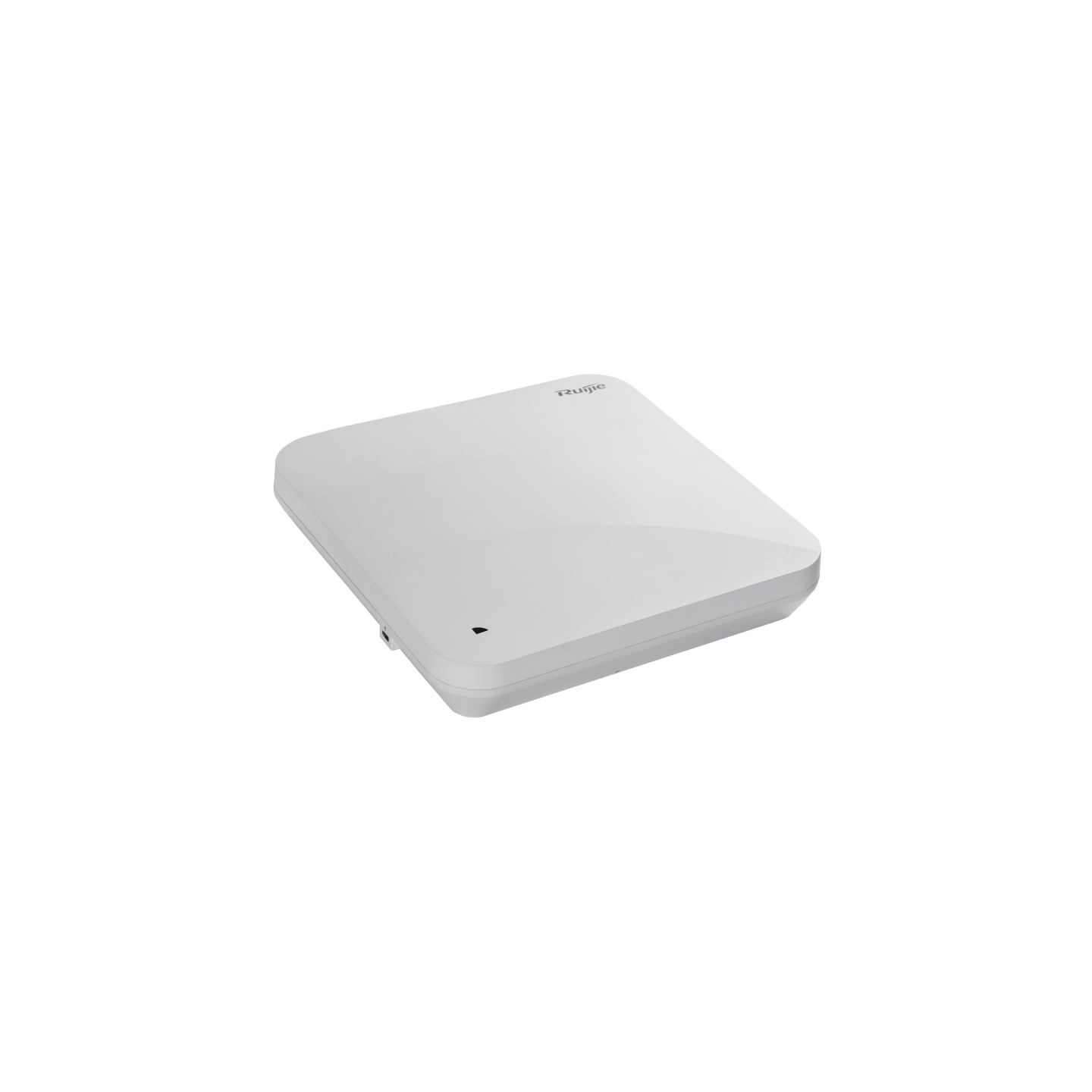

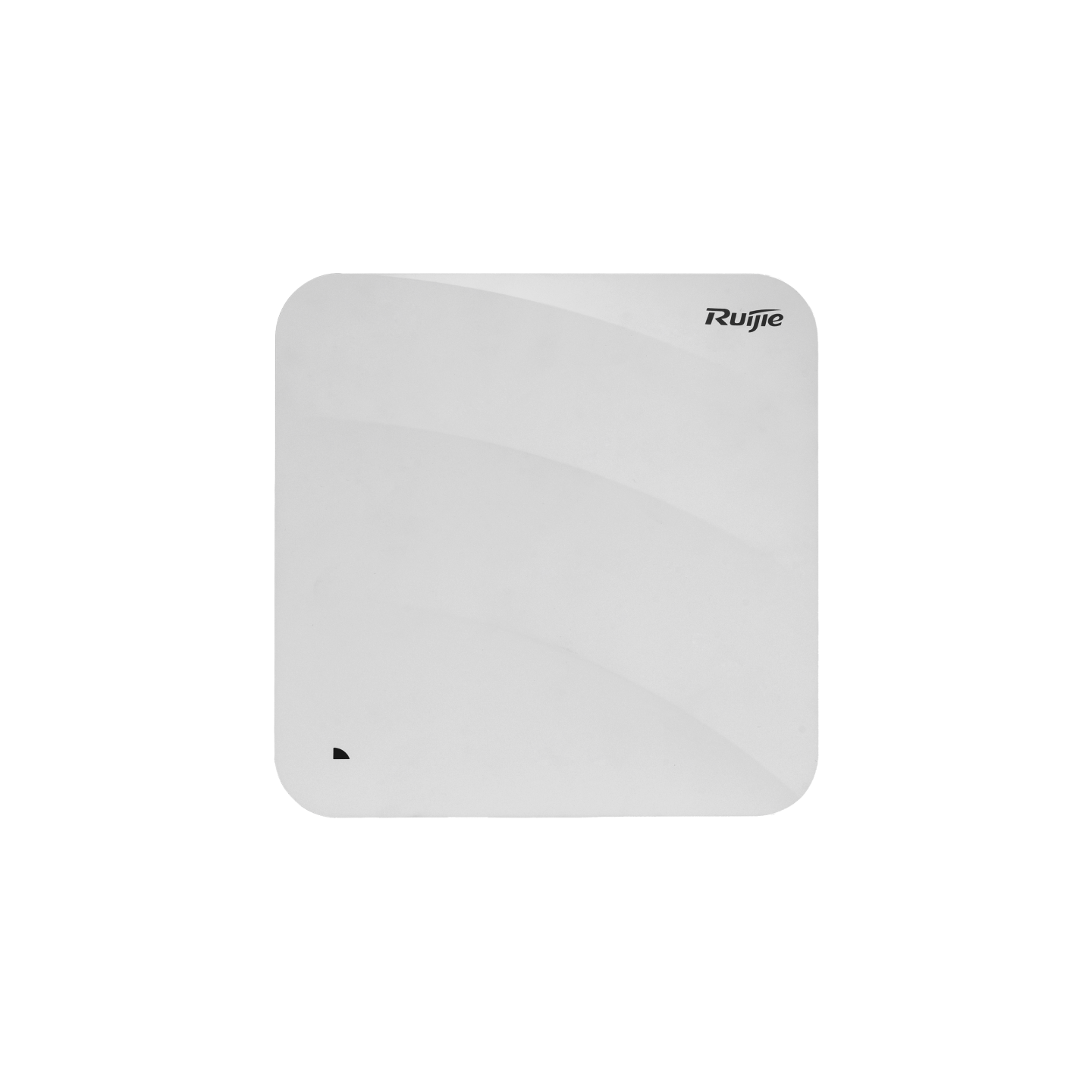

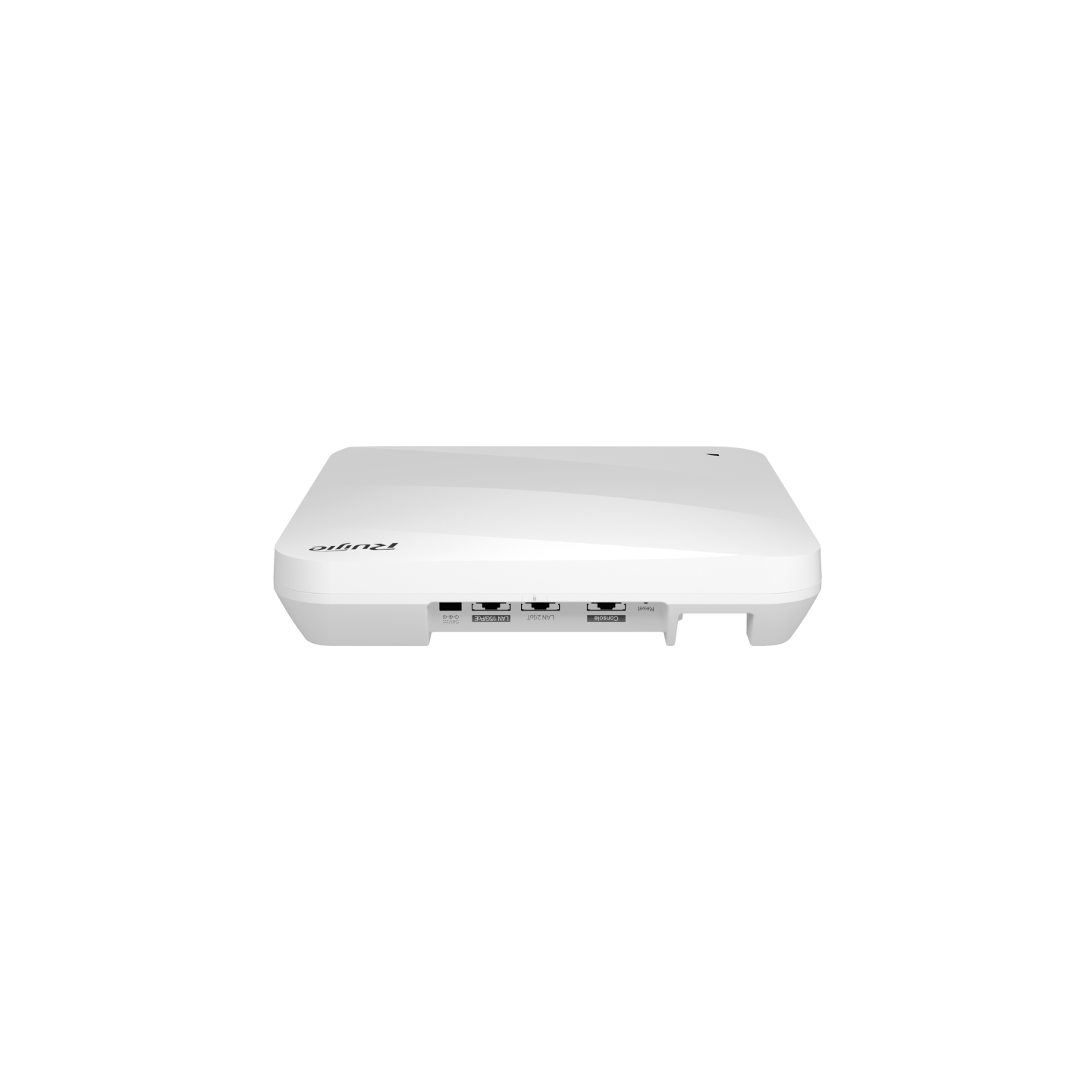

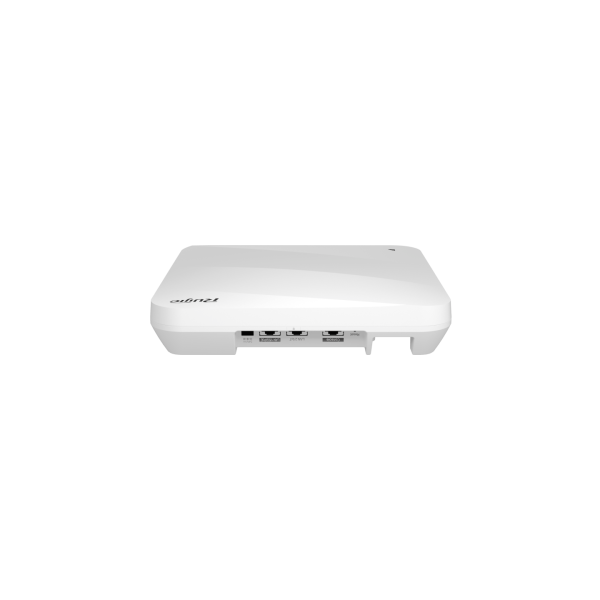

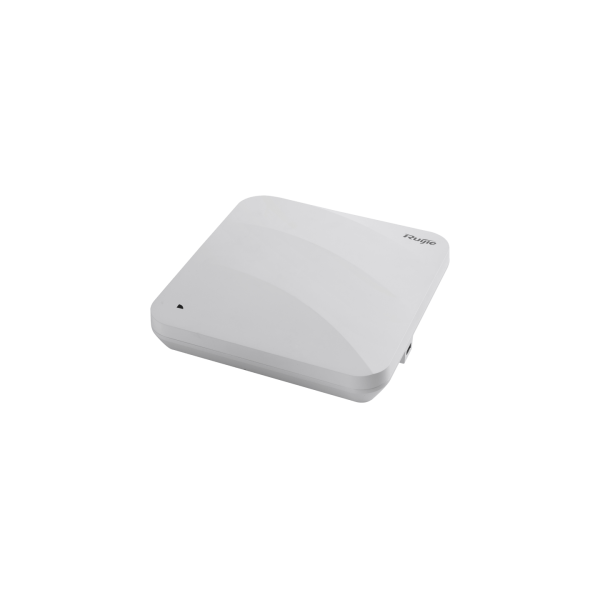

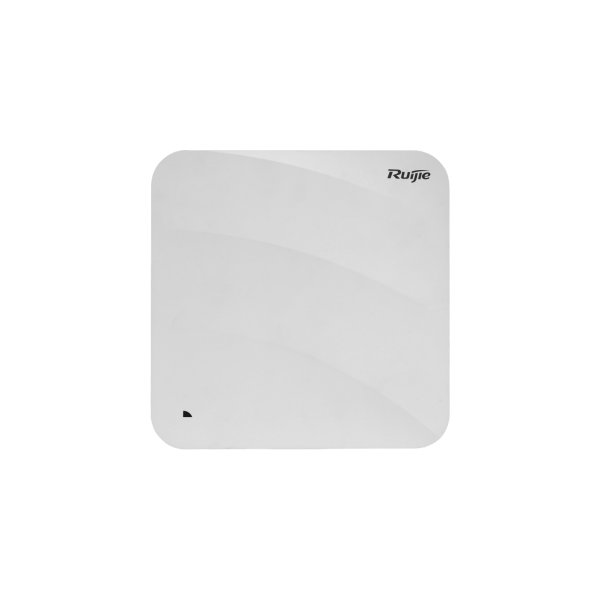

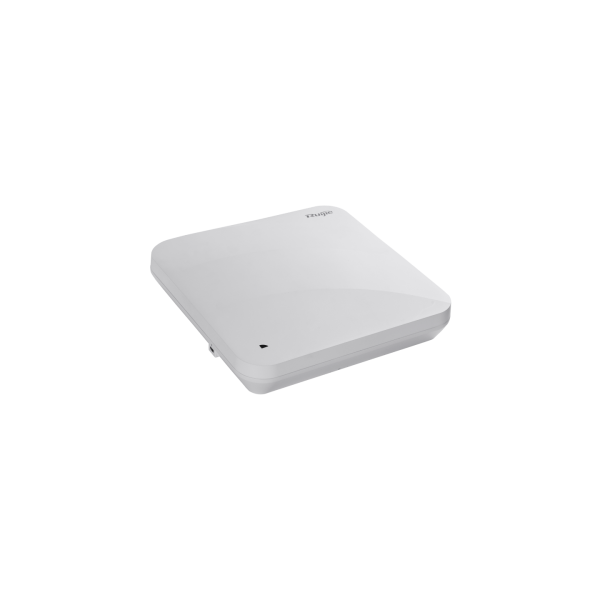

RG‑AP880‑E Wi‑Fi 6E Tri‑Radio Indoor Access Point – 7.78 Gbps
Built for high-density indoor environments like offices, campuses, and hospitals, the RG‑AP880‑E delivers ultra-fast Wi‑Fi 6E through a tri-radio design at top speeds of 7.78 Gbps. Featuring flexible 2.4/5/6 GHz coverage, dual PoE/DC power options, a rugged wall/ceiling mount, and easy hybrid or cloud management, this enterprise-grade AP ensures reliable, future-ready connectivity.
Product Specifications
| Feature | Specification |
|---|---|
| Model | RG‑AP880‑E |
| Wi‑Fi Standard | IEEE 802.11a/b/g/n/ac/ax/ax‑6E |
| Radios & Streams | 2.4 GHz (2×2), 5 GHz (2×2), 6 GHz (4×4) — 8 spatial streams |
| Peak Throughput | Combined 7.780 Gbps (574 Mbps @2.4 GHz, 2.402 Gbps @5 GHz, 4.804 Gbps @6 GHz) |
| Antenna Gains | 5.4 dBi (2.4/6 GHz), 5.2 dBi (5 GHz); +4.6 dBi Bluetooth |
| Ethernet Ports | 1×2.5/5 GbE RJ45, 1×5 GE combo SFP/RJ45, 1×1 GbE, console, USB 3.0 |
| Power Input | IEEE 802.3af/at/bt PoE or 54 V DC; up to 40 W |
| PoE Output | USB: 1 A/5 W, LAN2: 12.95 W for IoT devices |
| Wi‑Fi Security | WPA3, WPA2/1, 802.1X, PPSK; DFS, TxBF, CIDD/CSD, STBC, LDPC |
| RF Support | OFDMA, MU‑MIMO, beamforming, channel auto-tune |
| Bluetooth | Bluetooth 5.1 integrated |
| Physical & Mounting | 230×230×51 mm, wall/ceiling mount; includes bracket |
| Operating Range | –10 °C to +50 °C; 5–95% RH non-condensing |
| Weight | 1.0 kg (bracket +0.1 kg) |
| Certifications & Warranty | DFS, relevant Wi‑Fi standards, enterprise-grade; as per Ruijie policy |
| Management Modes | Fat, Fit, Hybrid, Cloud (WIS/SNC) |
