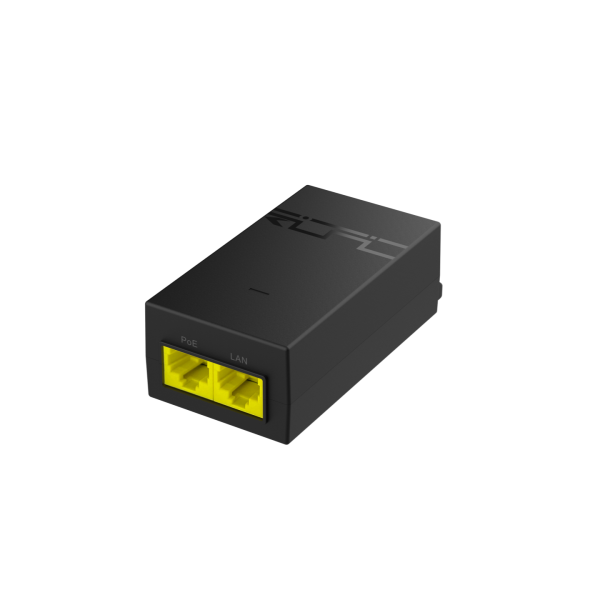

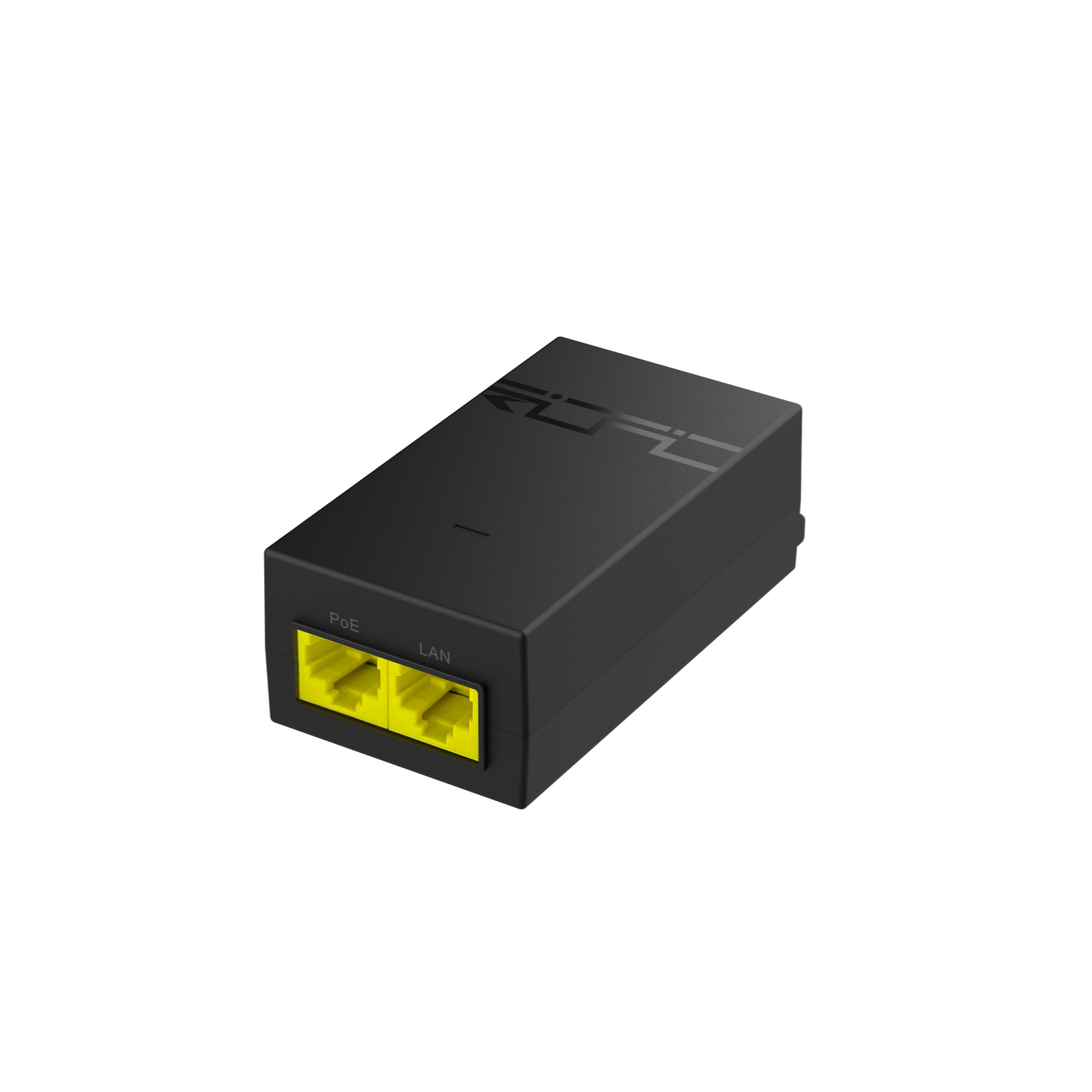

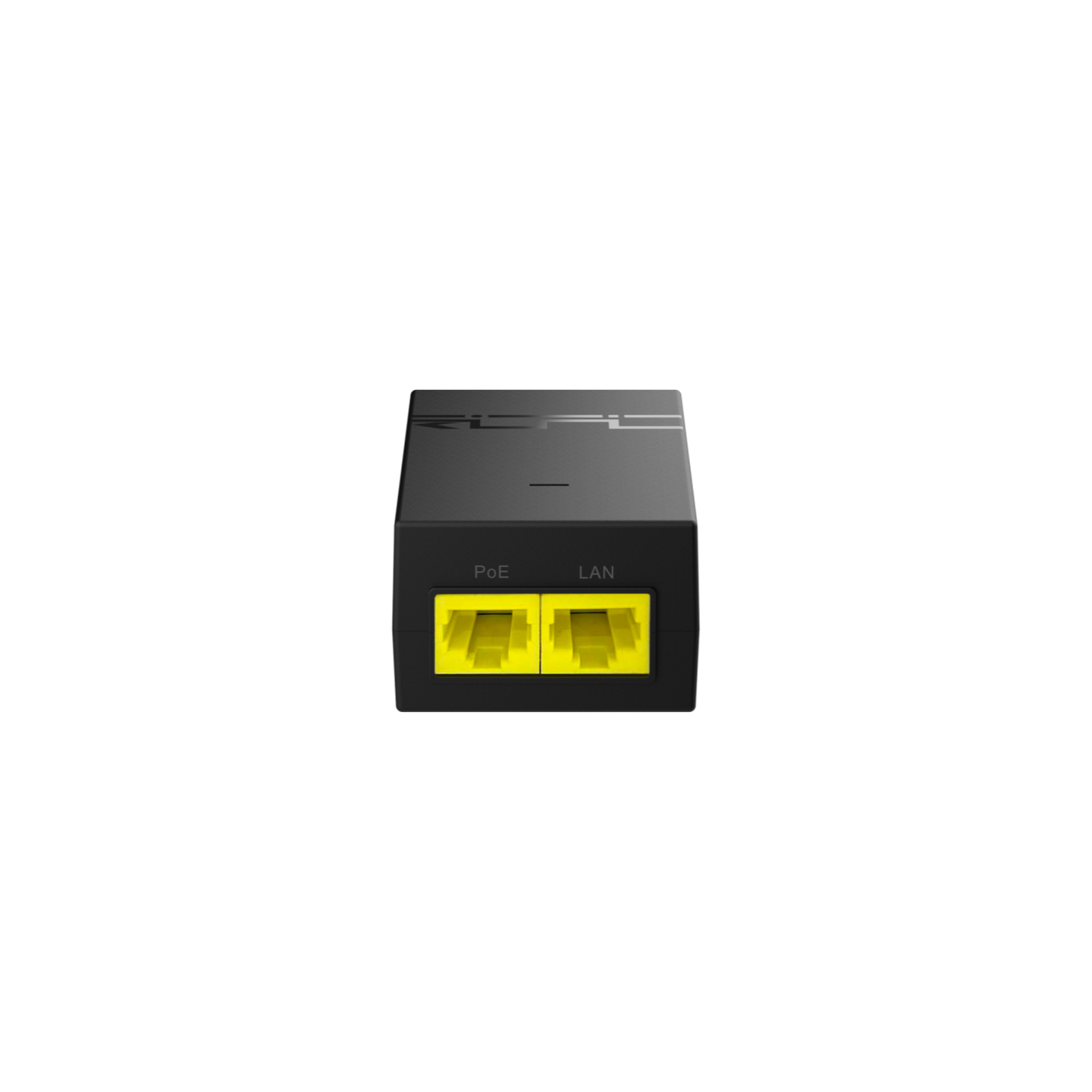

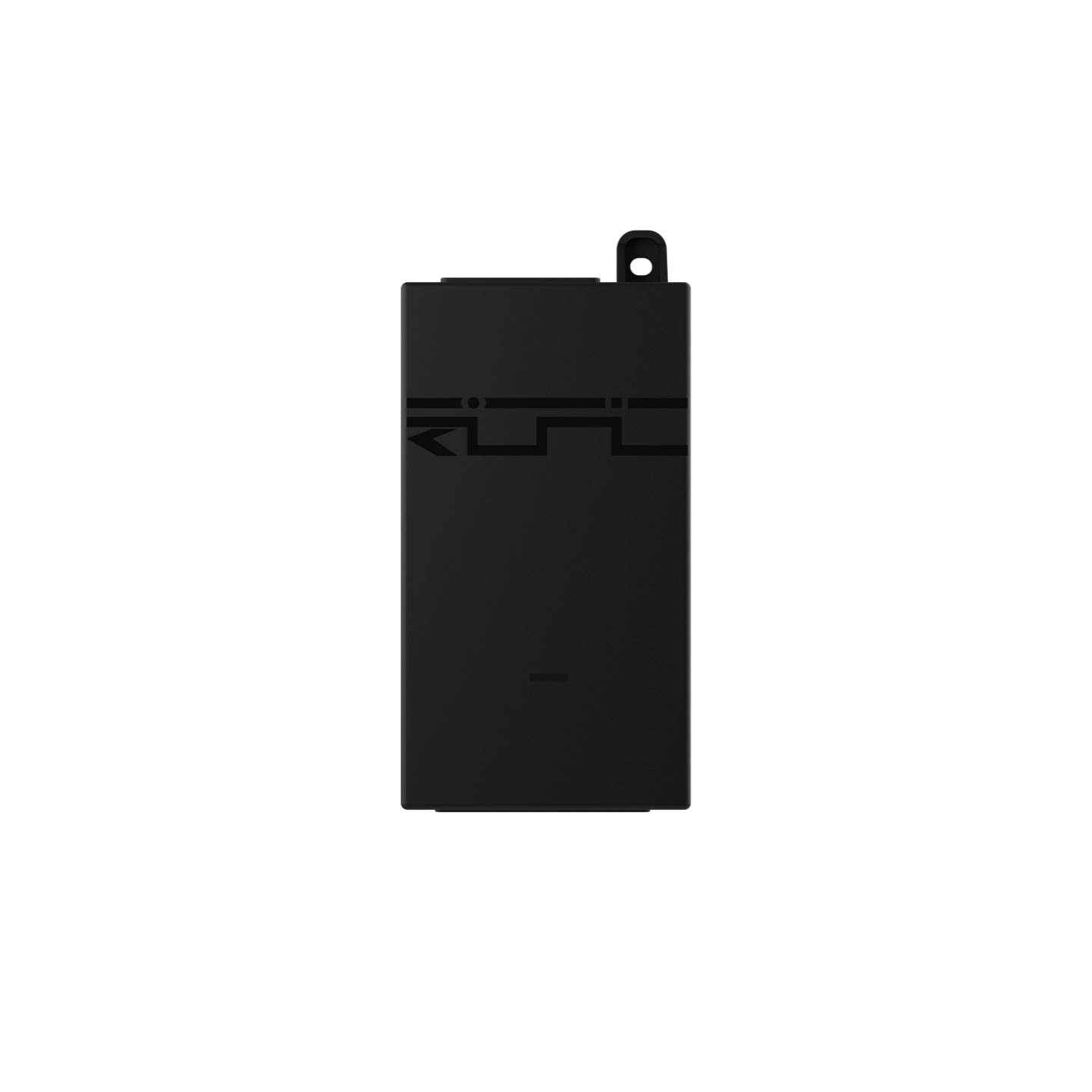

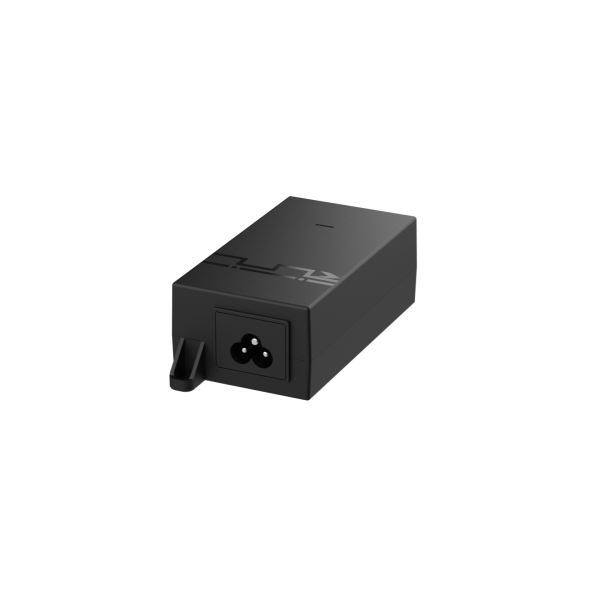

RG‑POE‑AF15 1‑Port Gigabit PoE Injector – 52 V/15.6 W, Surge‑Protected
RG‑POE‑AF15 1‑Port Gigabit PoE Injector – 52 V/15.6 W, Surge‑Protected - Image 2
RG‑POE‑AF15 1‑Port Gigabit PoE Injector – 52 V/15.6 W, Surge‑Protected - Image 3
RG‑POE‑AF15 1‑Port Gigabit PoE Injector – 52 V/15.6 W, Surge‑Protected - Image 4
,

RG‑POE‑AF15 1‑Port Gigabit PoE Injector – 52 V/15.6 W, Surge‑Protected

1‑port Gigabit PoE injector providing 52 V/15.6 W output, surge-hardened and rated for operation from –10 °C to 45 °C—ideal for powering Reyee access points and cameras in SOHO and commercial settings.

Add to quote

  • Stable 52 V DC Power Delivery
    Delivers steady 52 V at 0.3 A via 2-pair wiring (Pins 4,5+, 7,8–), perfect for powering Reyee wall, ceiling, or outdoor access points.

  • Gigabit Data Support
    Supports full Gigabit Ethernet, ensuring high-speed data alongside reliable power in a single cable.

  • Extreme Temperature Operation
    Rated for –10 °C to +45 °C, with storage from –40 °C to +70 °C—designed to perform well in varied environmental conditions.

  • Built‑In Surge Protection
    Offers 2000 A (8/20 µs) surge discharge protection and robust electrical shielding for safeguarding downstream equipment.

  • Efficient and Compact
    Measures 92 × 46.5 × 29.5 mm, weighs ~95 g, and consumes less than 0.1 W when idle, making it ideal for tight installs.

Categories: , Brand:

Technical Specifications

Feature Specification
Model RG‑POE‑AF15
Ports 1× 10/100/1000 Mbps Ethernet
PoE Output 52 V DC @ 0.3 A (15.6 W)
Wiring Passive PoE via pins 4,5 (+) & 7,8 (–)
Input Voltage 100–240 V AC, 50/60 Hz
Input Current ≤ 0.5 A
Inrush Current < 80 A @ 230 V
Operating Temp –10 °C to +45 °C
Storage Temp –40 °C to +70 °C
Surge Protection 2000 A @ 8/20 µs
Efficiency (Low‑Load) ~84%
Idle Power ~0.09 W
Dimensions 92 × 46.5 × 29.5 mm
Weight ~95 g
Certifications CE, CB; 3‑year warranty
