Single-Socket Powerhouse
Powered by Intel Xeon E‑2300 processors or Pentium G-series (up to 8 cores, 95 W), this server provides robust compute capability in a dense 1U chassis. -
Up to 128 GB DDR4 ECC Memory
Four TruDDR4 UDIMM slots supporting up to 128 GB at 3200 MT/s ensure stable performance for virtualization, caching, and database applications. -
Flexible Storage Options
Accommodates up to 10 hot-swap 2.5″ SAS/SATA drives—or 4 hot-swap 3.5″ drives (optionally with NVMe) and dual M.2 boot drives via PCIe card. -
PCIe Gen4 and I/O Expansion
Includes two PCIe Gen4 x8 slots and one slot dedicated for RAID (VROC or independent), enabling GPU or 10/25 GbE networking upgrades. -
RAID Readiness with Lenovo VROC
Built‑in Intel VROC enables software RAID for SATA drives. Also supports hardware RAID via Lenovo RAID 5350-8i or 9350 adapters. -
Enterprise-Class Remote Management
Features Lenovo XClarity Controller (BMC) and XClarity Administrator for remote monitoring, remote KVM, firmware management, and energy optimization. -
Compact and Energy-Efficient Design
Short-depth chassis (~435 mm deep) with up to two hot-swap PSUs (300 W fixed or optional 450 W redundant), four fans, and space-efficient layout.

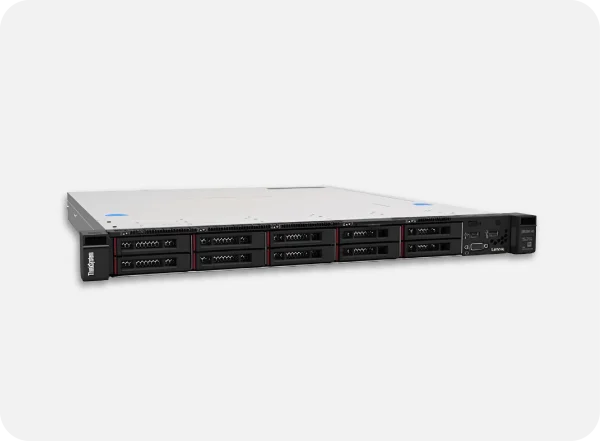

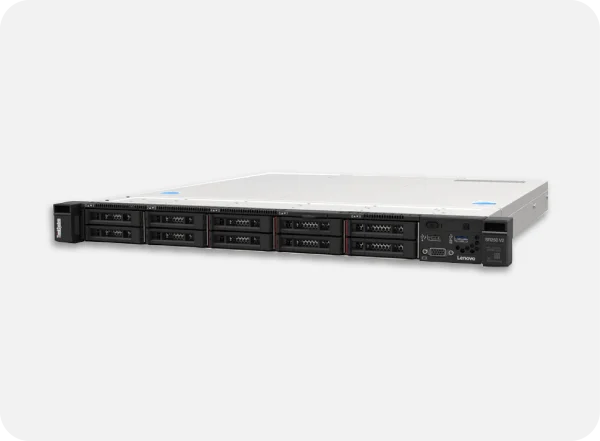

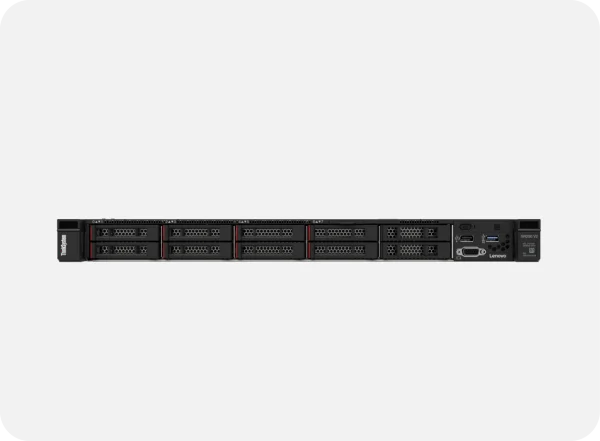

Lenovo ThinkSystem SR250 V2 1U Rack Server – Xeon E‑2300, 128 GB DDR4, Flexible Storage
Efficient and powerful 1U server featuring up to 8-core Xeon E‑2300 CPUs, 128 GB DDR4 ECC memory, support for up to 10 hot-swap 2.5″ or 4 hot-swap 3.5″ drives, one PCIe Gen4 expansion, and integrated Intel VROC software RAID. Includes dual 1 GbE ports and Lenovo XClarity management—designed for flexibility and performance.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Lenovo ThinkSystem SR250 V2 |
| Form Factor | 1U rack server – 43 mm H × 435 mm W × 545 mm D |
| Processor | 1× Intel Xeon E‑2300 (≤8 cores/95 W) or Pentium G-series |
| Memory | 4× TruDDR4 ECC UDIMMs, up to 128 GB @3200 MT/s |
| Drive Bays | Up to 10×2.5″ hot-swap or 4×3.5″ hot-swap (optionally with 1 NVMe) |
| Boot Options | Dual M.2 SATA (via PCIe adapter) or USB/SD |
| PCIe Slots | 2× Gen4 x8 slots + 1× internal RAID slot |
| RAID Support | Intel VROC software RAID; optional hardware RAID cards |
| Network | 2× 1 GbE ports; dedicated XClarity port |
| Management | Lenovo XClarity Controller & Administrator |
| Power Supply | 300 W single or 450 W redundant hot‑swap PSUs |
| Cooling | Four system fans (short-depth optimized) |
| Weight | Up to 12.3 kg fully configured |
