Dell PowerEdge R750 2U Server – Dual Xeon, Up to 8 TB RAM, 24 NVMe Bays

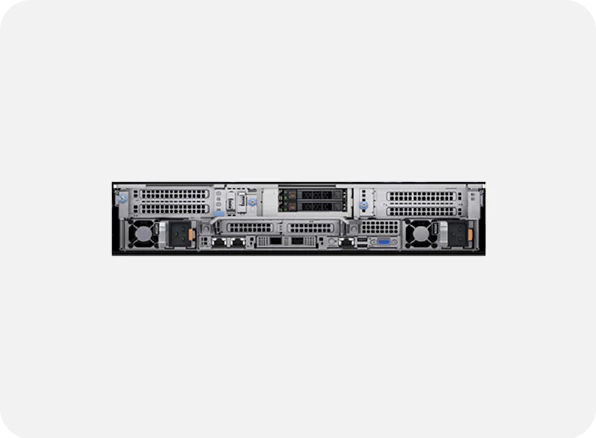

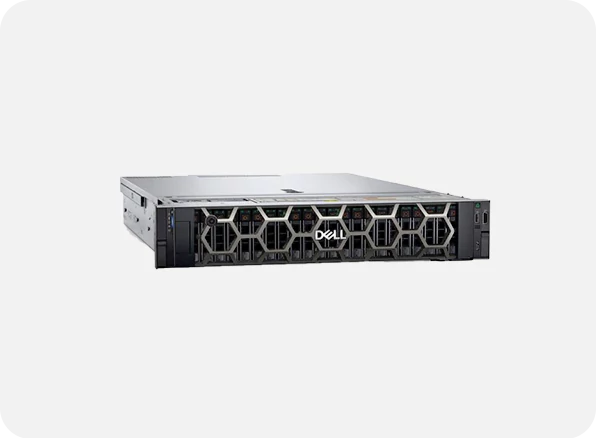

Dell PowerEdge R750 2U Server – Dual Xeon, Up to 8 TB RAM, 24 NVMe Bays - Image 2
Dell PowerEdge R750 2U Server – Dual Xeon, Up to 8 TB RAM, 24 NVMe Bays - Image 3

Dell PowerEdge R750 2U Server – Dual Xeon, Up to 8 TB RAM, 24 NVMe Bays

Enterprise-grade 2U server featuring dual Xeon Scalable CPUs (up to 40 cores/socket), up to 8 TB DDR4 memory, PCIe Gen4 expansion, support for up to 24 NVMe or 12 LFF drive bays, redundant hot-swap PSUs (800–2,400 W), and full remote management with iDRAC9 and OpenManage integration.

Add to quote

  • Dual-Processor Architecture
    Supports up to two 3rd-Gen Intel Xeon Scalable CPUs, delivering high core and thread counts for intensive multitasking and compute-heavy applications.

  • Massive Memory Capacity
    Thirty-two DIMM slots support up to 8 TB DDR4 RDIMM or LRDIMM memory, plus up to 16 PMem slots—allowing optimal tuning for in-memory, database, or virtualization workloads.

  • Configurable Storage Flexibility
    Choose from high-capacity setups: up to 12 LFF (192 TB) or 24 SFF (368 TB) drive bays, including NVMe, SAS, SATA options, with additional rear drive capacity.

  • High-Speed I/O with PCIe Gen4
    Supports up to eight PCIe Gen4 expansion slots for accelerators, GPUs, and networking cards—ideal for scalable performance demands.

  • Advanced RAID & Boot Solutions
    Compatible with PERC H745/H755, HBA355i, S150, external H840 controllers, and BOSS-S2 (dual M.2 SSDs) for flexible storage configurations.

  • Built-in Cyber Resilience
    Features silicon root-of-trust secure boot, signed firmware, system lockdown, and remote management tools like iDRAC9 with telemetry and OpenManage automation.

  • Scalable Cooling & Power
    Equipped with multi-zone air cooling (up to six fans), plus optional direct liquid cooling; offers hot-plug, redundant PSU options from 800 W to 2,400 W to meet data center needs.

Category: Brand:

Technical Specifications

Feature Specification
Model Dell PowerEdge R750
Form Factor 2U rack server
Processors Up to 2× 3rd‑Gen Intel Xeon Scalable (up to 40 cores each)
Memory 32× DDR4 DIMM slots; up to 2 TB RDIMM or 8 TB LRDIMM; supports 16 PMem slots
Drive Bays Front: up to 12×3.5″ or 24×2.5″ (incl. NVMe); Rear: up to 4×2.5″
Max Internal Storage Up to ~368 TB (with 24×2.5″)
PCIe Slots Up to 8× PCIe Gen4 slots
RAID & Boot Controllers PERC H745/H755, HBA355i, S150, external H840, BOSS-S2
Network 2× 1 GbE LOM; OCP 3.0 up to 25 GbE
Power Supply Options 800 W, 1100 W, 1400 W, 2400 W hot-plug PSUs; AC/DC
Cooling Configuration Up to 6 hot-swap fans; optional liquid cooling
Management & Security iDRAC9, OpenManage, telemetry, secure boot, firmware lockdown
Dimensions 86.8 mm × 482 mm × ~772 mm
Max Weight Up to ~35.3 kg (fully loaded)
