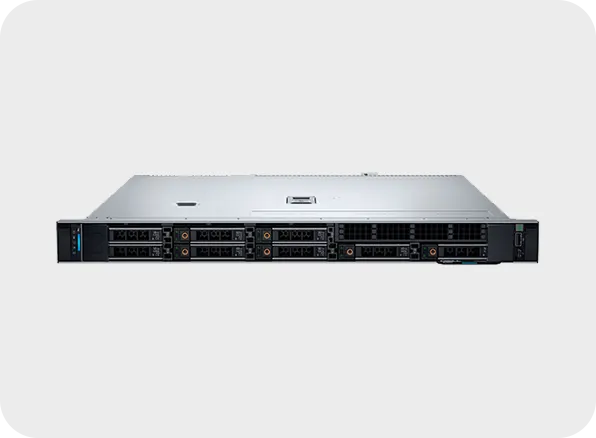

Dell PowerEdge R360 1U Rack Server – Single Xeon, 128 GB DDR5, GPU-ready


Compact 1U server with up to 8-core Xeon CPUs, 128 GB DDR5 ECC, support for 4×3.5″ or 8×2.5″ drives (up to 64 TB), dual 1 GbE, PCIe Gen4 expansion, optional 60 W GPU, and iDRAC9 remote management—perfect for SMB, ROBO, or edge deployments.

  • High-Performance CPU Options
    Choose from the 8-core Intel Xeon E-2400 or Xeon 6300 series (4–8 cores, up to 3.6 GHz), or cost-effective Pentium G7400 models. Ideal for everyday compute and light virtualization.

  • Ultra-Fast DDR5 Memory
    Equipped with 4 DDR5 DIMM slots, supporting up to 128 GB ECC memory at 4400 MT/s—perfect for memory-intensive tasks.

  • Scalable Storage Bays
    Offers up to 4×3.5″ (max 64 TB) or 8×2.5″ (max 61 TB) hot-plug SAS/SATA drives. Includes dual M.2 NVMe BOSS-N1 for boot options and an internal USB port.

  • PCIe Gen4 Expansion
    Two PCIe Gen4 slots—a full-height x16 and x8—plus a dedicated internal slot for PERC RAID cards.

  • RAID & Storage Controllers
    Supports Dell controllers including PERC H355/H755, HBA355i, and S160 SW RAID. Utilize BOSS-N1 dual M.2 for boot-optimized storage.

  • Optional GPU Acceleration
    Supports one single-width GPU (up to 60 W), such as the NVIDIA A2, enabling enhanced AI/video acceleration.

  • Enterprise Remote Management
    Comes with iDRAC9 including Lifecycle Controller, Redfish API, and remote console—simplifying management and firmware updates.

  • Cyber-Resilient Security
    Features Dell’s silicon-root firmware, secure boot, chassis intrusion, and signed BIOS for secure infrastructure.

  • Dual Redundant PSU Support
    Includes two hot-swappable power supplies (AC or DC), ensuring uptime and power reliability.

  • Compact Yet Durable Design
    Standard 1U chassis with optional filtered front bezel and rugged build for edge or data center usage.

Category: Brand:

Technical Specifications

Feature Specification
Model Dell PowerEdge R360
Form Factor 1U Rack Server (42.8 mm × 482 mm W × 585 mm D)
Processors 1× Intel Xeon E‑2400 or 6300 series (4–8 cores), or Pentium G7400 (2 cores)
Memory 4× DDR5 ECC UDIMM slots, up to 128 GB @4400 MT/s
Drive Bays Up to 4×3.5″ (64 TB) or 8×2.5″ (61 TB) SAS/SATA
Boot Storage BOSS-N1 with dual M.2 NVMe or USB
Storage Controllers PERC H355/H755, HBA355i, S160 SW RAID
PCIe Slots 1× x16 (HL), 1× x8 (LP), internal PERC slot
GPU Support 60 W single-width slot for GPUs like NVIDIA A2
Network Dual 1 GbE LOM; optional OCP/MLOM upgrades
Management iDRAC9, Lifecycle Controller, Redfish API
Security Silicon root-of-trust, chassis intrusion, secure boot
Power Supplies 2× redundant, hot-plug AC/DC PSUs
Cooling 4 internal cooling fans; optional dust filter bezel
Dimensions H 42.8 × W 482 × D 585 mm (without bezel)
Weight Approx. 11–13 kg depending on configuration
