Smart Cloud & Local Management
Manage remotely via Ruijie Cloud platform and mobile app, or on-site using web UI and SNMP. Features zero-touch provisioning and automatic loop prevention for seamless deployment. -
High-Performance Gigabit Ports
Equipped with 8× 10/100/1000 Mbps RJ45 ports, delivering up to 16 Gbps switching capacity and 11.9 Mpps forwarding rate—ideal for smooth data flow in small networks. -
Advanced Layer 2 Features & Security
Includes VLAN support, storm suppression, many-to-one port mirroring, port isolation, and IP camera detection—helping segment traffic and protect operations. -
Quiet, Reliable Design
Fanless metal chassis ensures silent operation and durability. Offers 4 kV surge protection and MTBF > 200,000 hours while maintaining a compact 160 × 75 × 24 mm form factor.

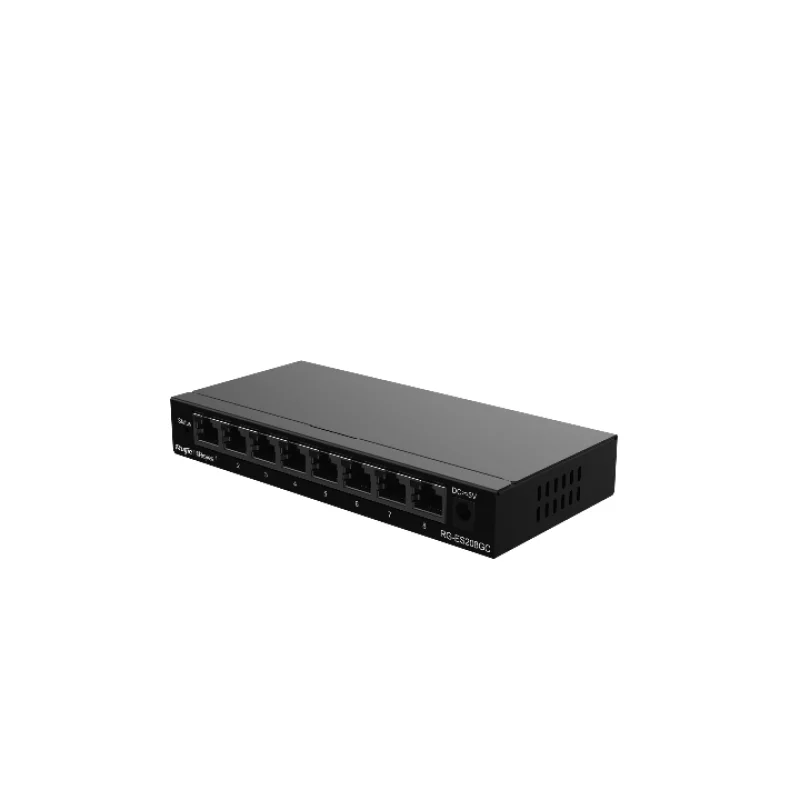

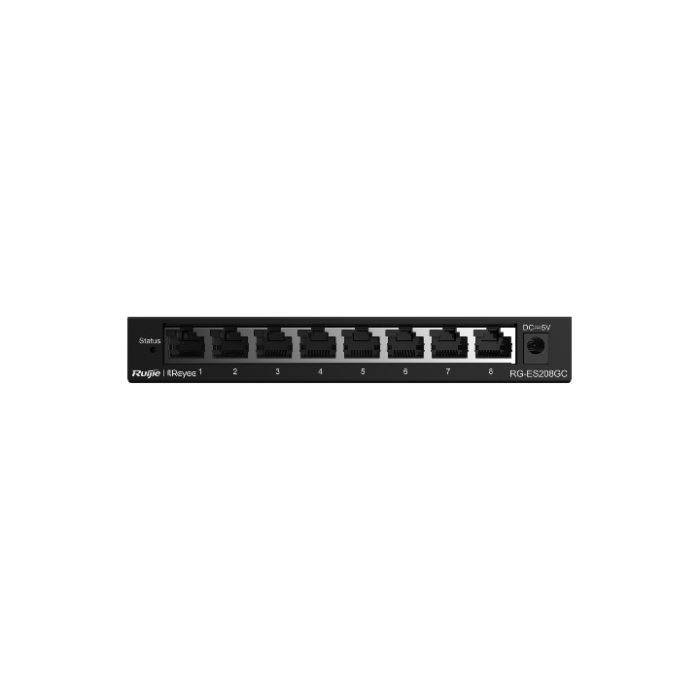

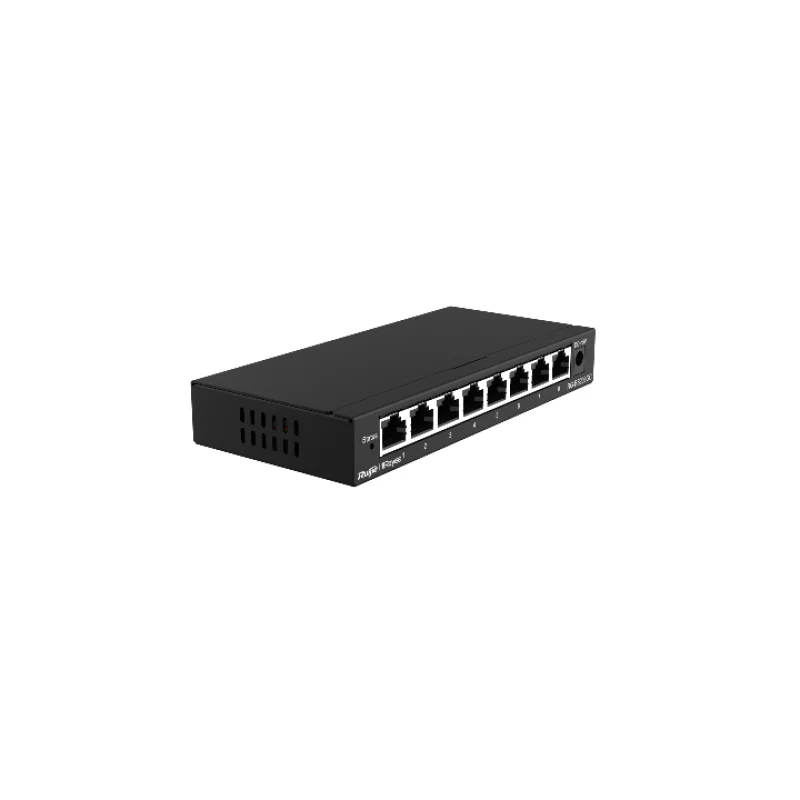

8‑Port Gigabit Cloud‑Managed Layer 2 Smart Switch – Fanless & Silent
Sleek fanless Layer 2 cloud‑managed Gigabit switch with 8 ports, VLAN support, loop prevention, IP camera recognition, and Ruijie Cloud / SNMP management—ideal for reliable, low‑noise network access.
Technical Specifications
| Specification | Details |
|---|---|
| Ports | 8×10/100/1000 Mbps RJ45 |
| Layer Type | Layer 2 |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4,000 entries |
| VLAN Support | Up to 4,094 VLANs |
| Surge Protection (Ports) | 4 kV |
| Packet Buffer | 1.5 Mbit |
| Loop Protection | Yes, automatic |
| Storm Suppression & Mirroring | Yes |
| Management Interfaces | Cloud, Web UI, SNMP v1/2c/3 |
| Power | External DC adapter (5 V/600 mA) |
| Chassis/Fan | Fanless metal, 160×75×24 mm |
| Operating Temp & Humidity | 0–40 °C, 10–90% RH |
| MTBF | >200,000 hours |
| Warranty | 3 years |
