Blazing Performance & High Density
Packs 48×100 G and 8×400 G ports into a compact chassis, supporting 16 Tbps bandwidth and 5350 Mpps packet forwarding—designed for AI, machine learning, and high-bandwidth server environments. -
Non-Stop Reliability

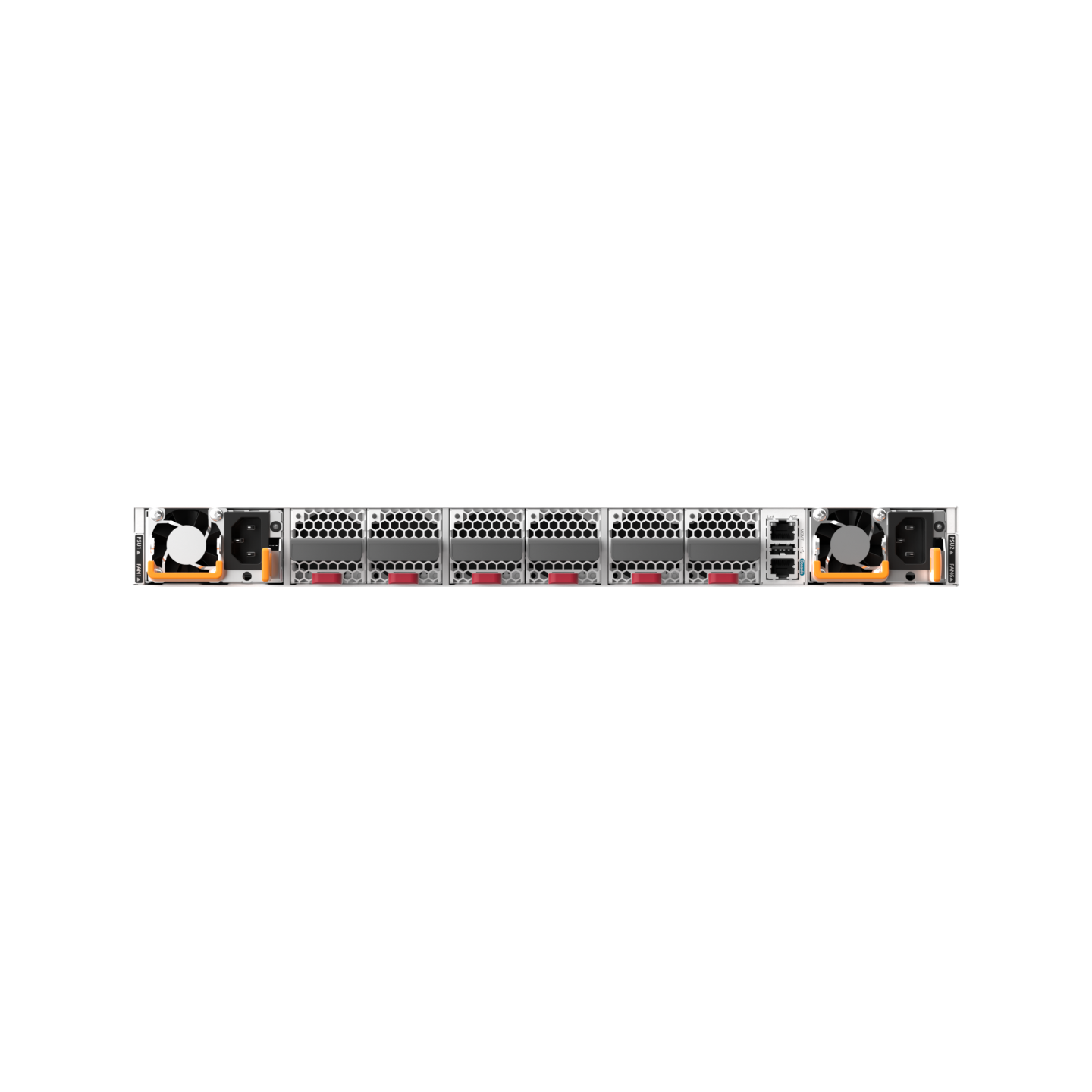

Offers hot‑swappable 1+1 redundant power and 5+1 fan modules, with intelligent cooling and alarms—designed to eliminate single points of failure. -
Lossless Ethernet for RDMA
Features Priority Flow Control (PFC), Explicit Congestion Notification (ECN), and hardware-based RDMA offload to eliminate packet loss and minimize latency. -
Real-Time Telemetry & Streamlined O&M
Supports sub-second telemetry for proactive monitoring and simplified maintenance through automatic operation tools. -
Comprehensive Routing & IPv6 Ready
Supports IPv4/v6 dual-stack, static/routing protocols (OSPF, BGP, RIP), ECMP, ACLs, QoS, VXLAN, and tunnelling for modern data center needs. -
Secure & Manageable
Comes with out-of-band console, management, USB ports, CLI/SSH/SSL, SNMP v1/2c/3, and telemetry—built for secure enterprise-grade control.

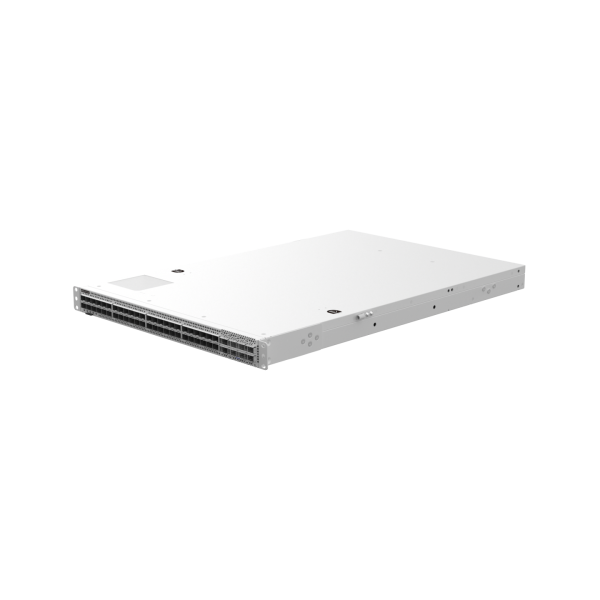

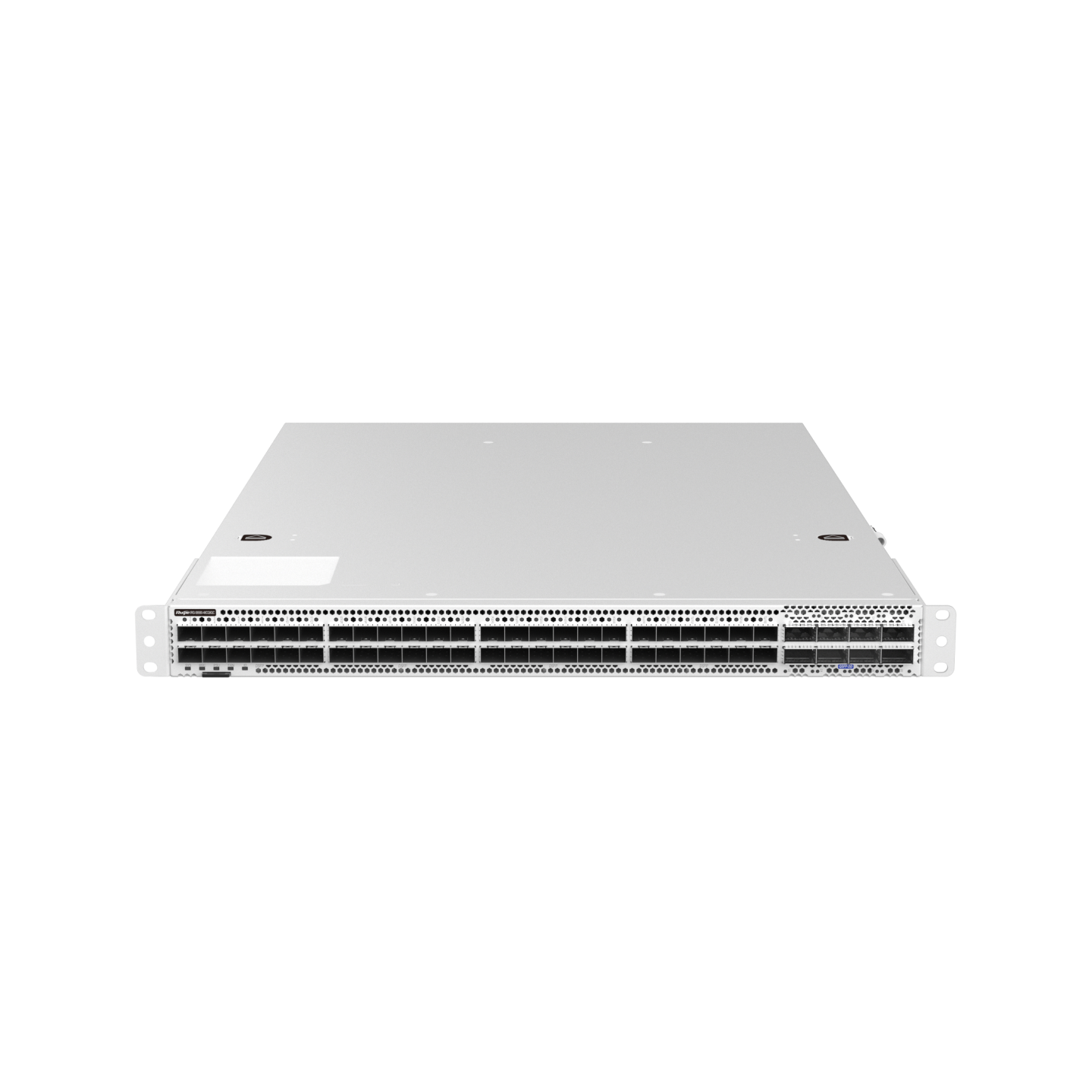

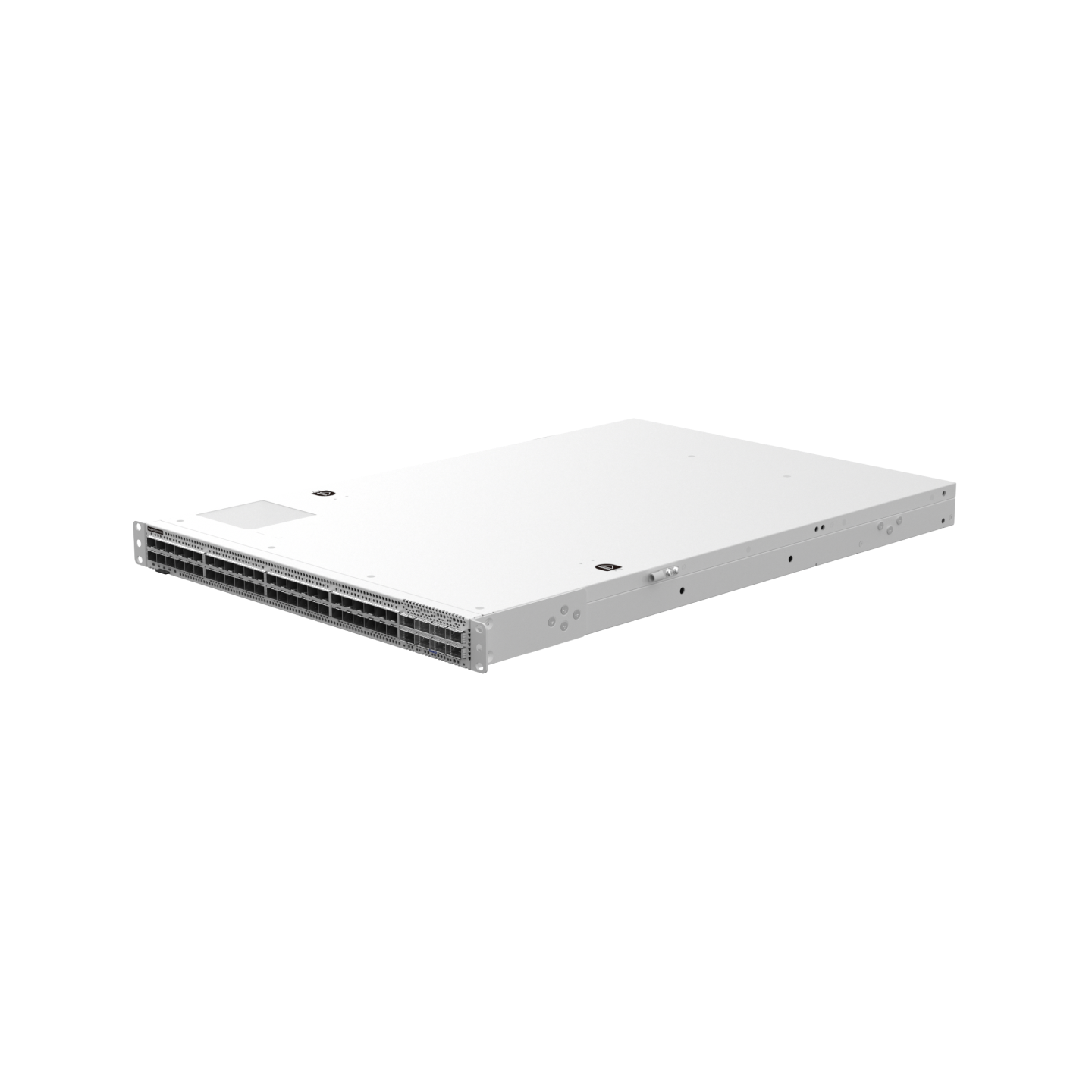

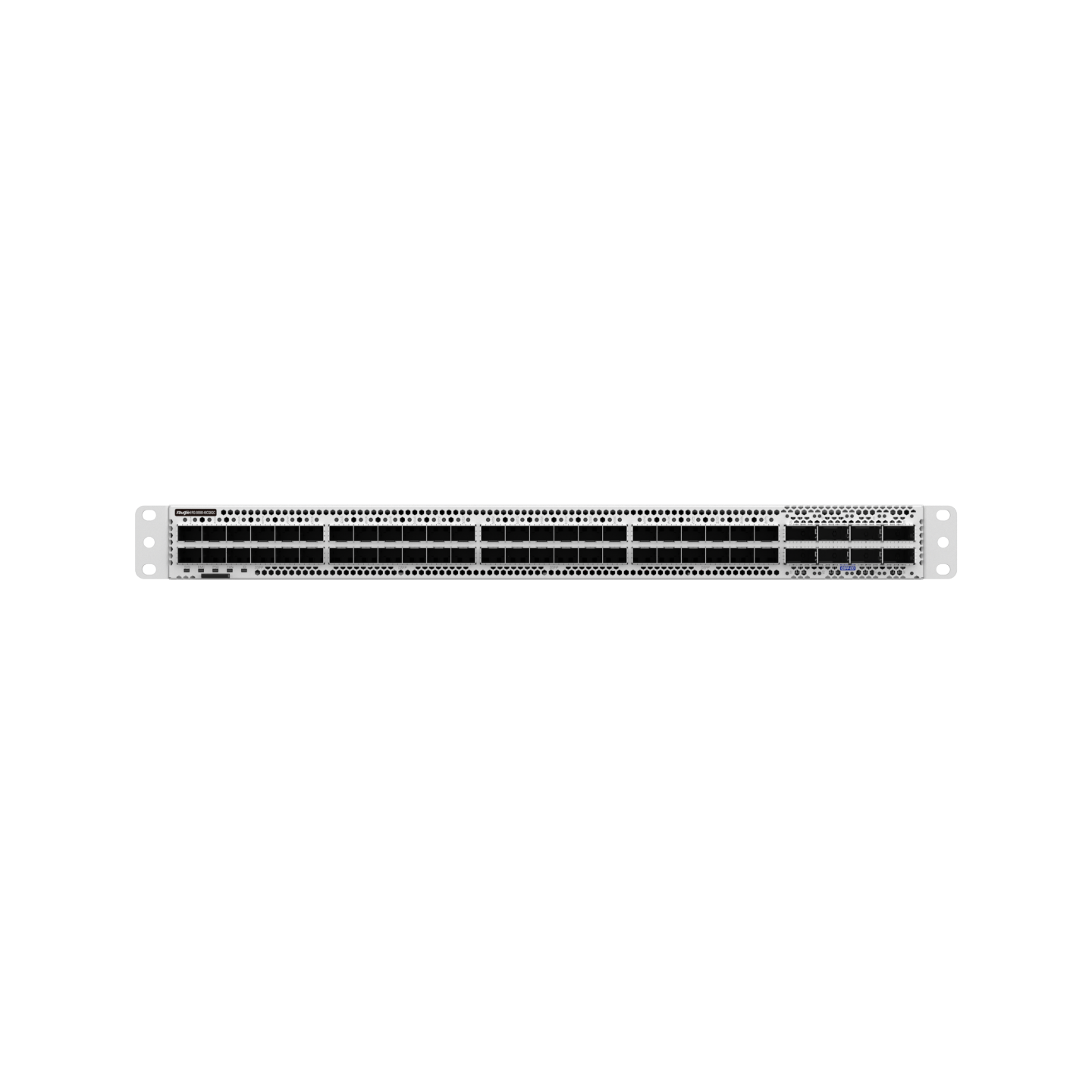

48×100G + 8×400G Data Center Switch – 16 Tbps, RDMA & Hot‑Swap Redundancy
Scale your data center with this 1-RU powerhouse offering 48×100 G DSFP ports and 8×400 G QSFP-DD uplinks. Featuring 16 Tbps switching capacity, 5350 Mpps throughput, lossless Ethernet (PFC/ECN), real-time telemetry, and hot‑swappable power & fans for uninterrupted operations.
Technical Specifications
| Feature | RG‑S6580‑48CQ8QC |
|---|---|
| Ports | 48×100 G DSFP + 8×400 G QSFP‑DD |
| Switching Capacity | 16 Tbps |
| Forwarding Rate | 5350 Mpps |
| Redundancy | 1+1 PSU, 5+1 fans, hot-swappable |
| Latency & Performance | PFC, ECN, RDMA offload |
| Telemetry | Sub‑second real-time |
| IPv4/IPv6 Routing | Static, OSPF, RIP, BGP4 (+RIPng/v3) |
| Management Interfaces | Console, MGMT, USB, CLI, SNMP v3, SSH, SSL |
| Dimensions | 442×700×44 mm (1 RU) |
| Weight | 11.5 kg fully populated |
| Operating Temp | 0–40 °C |
| Certifications | CE, FCC, RoHS, IP40, IEC 62368-1 compliant |
