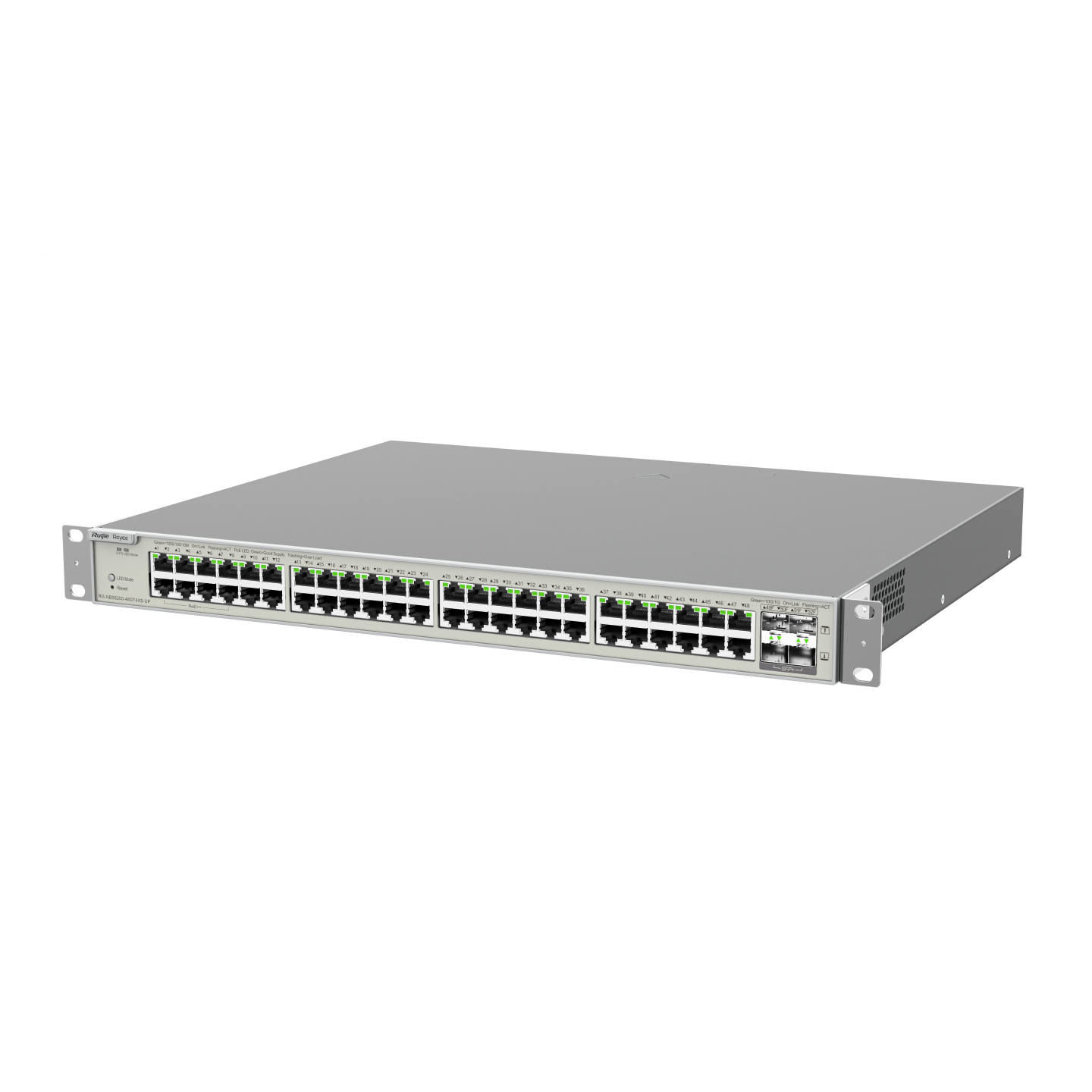

48‑Port PoE +/PoE ++ Layer 3 Switch – 4×10G Uplinks, 740 W PoE, Cloud-Managed

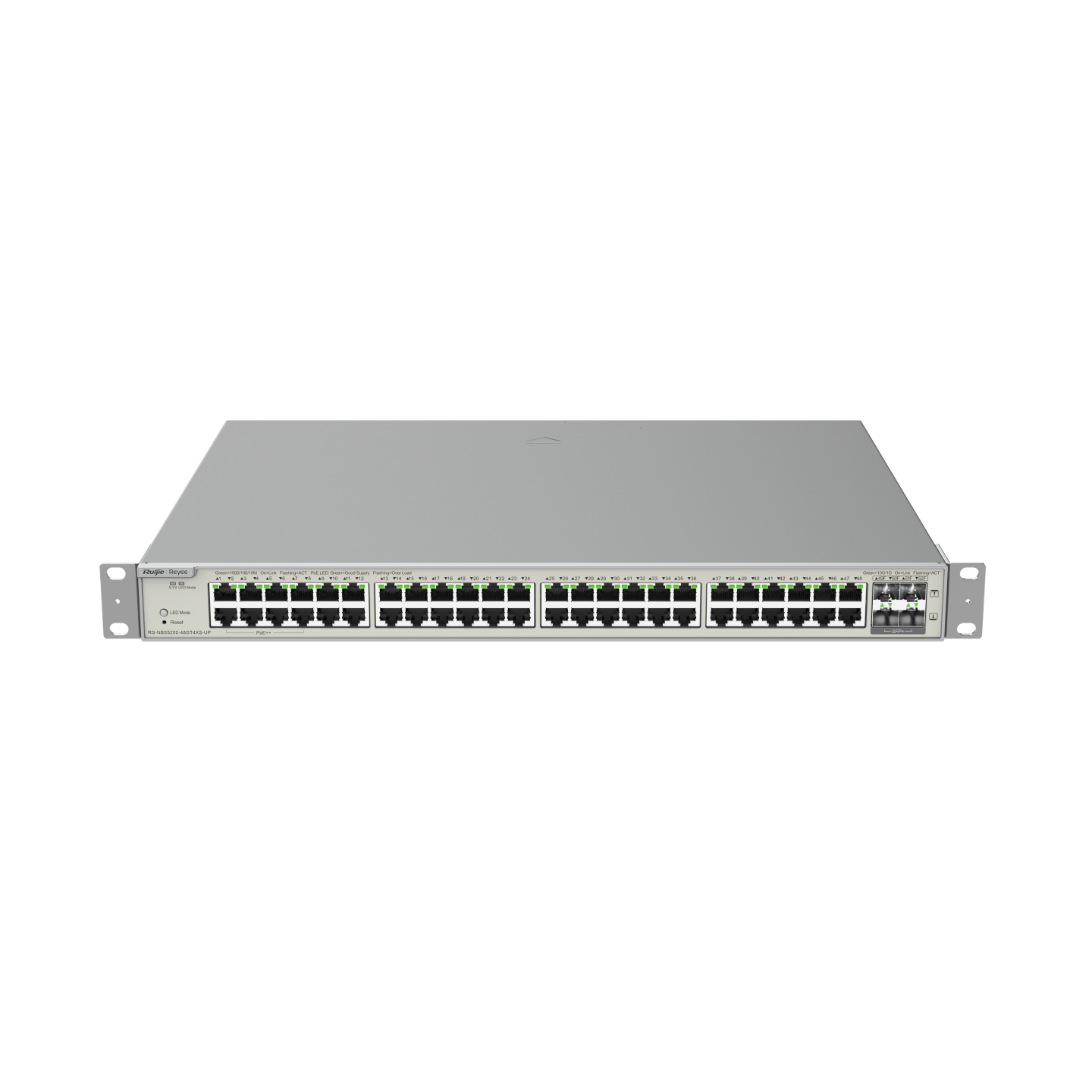

48‑Port PoE +/PoE ++ Layer 3 Switch – 4×10G Uplinks, 740 W PoE, Cloud-Managed - Image 2

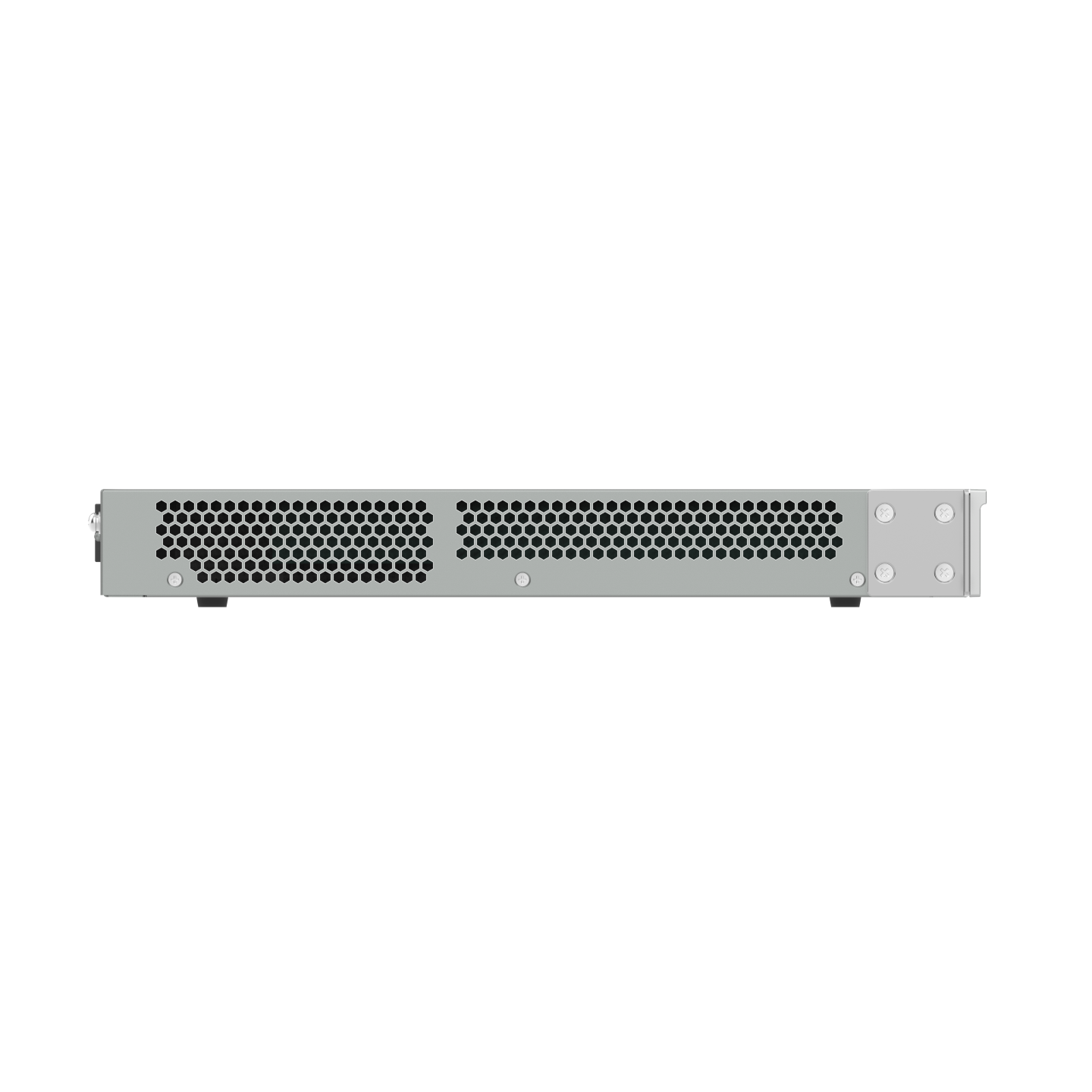

48‑Port PoE +/PoE ++ Layer 3 Switch – 4×10G Uplinks, 740 W PoE, Cloud-Managed - Image 3

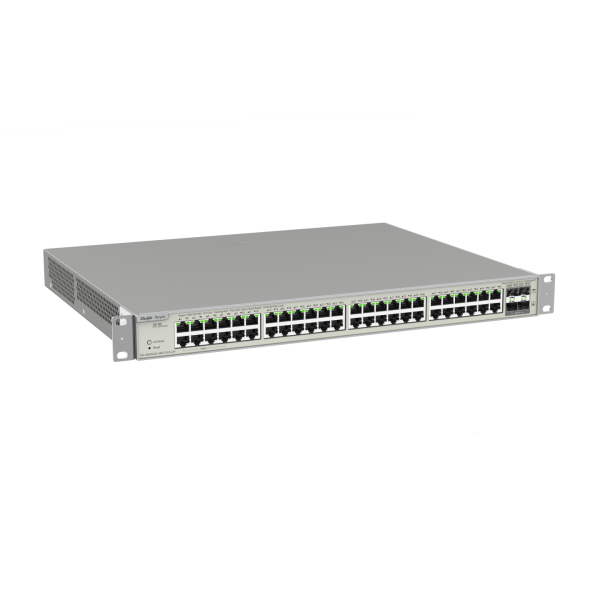

48‑Port PoE +/PoE ++ Layer 3 Switch – 4×10G Uplinks, 740 W PoE, Cloud-Managed - Image 4
,

48‑Port PoE +/PoE ++ Layer 3 Switch – 4×10G Uplinks, 740 W PoE, Cloud-Managed

High-density Layer 3 PoE switch with 48 PoE ports (1–8 support 60 W PoE ++) and 4×10G uplinks. Offers 176 Gbps bandwidth, 132 Mpps routing, 6 kV surge protection, VSU clustering, static/RIP/OSPF routing, IP camera detection, and remote cloud management—designed for scalable enterprise networks.

Add to quote

  • Massive PoE Power & Uplinks
    Delivers up to 740 W total PoE with 8× high-power 60 W PoE++ ports (1–8) and 40× standard 30 W PoE+ ports (9–48). Includes 4×10 Gbps SFP+ uplinks for seamless integration with backbone networks.

  • Layer 3 with Enterprise Routing
    Engineered for static, RIP, and OSPF routing, this switch delivers 176 Gbps switching capacity and 132 Mpps to efficiently manage campus-to-core traffic.

  • Comprehensive Layer 2+ Features & Security
    Supports up to 4,094 VLANs, voice VLAN, LAG/LACP, IGMP snooping, ACLs, DHCP snooping, IP‑MAC binding, loop protection, and IP camera recognition for flexible, secure deployment.

  • Resilient Design & Surge Protection
    Enterprise-grade resilience with 6 kV surge protection, adaptive dual-fan cooling, and reliable single AC power supply.

  • Remote Cloud & Local Management
    Manageable via Ruijie Cloud/mobile app, Web UI, SNMP v1/2c/3, or CLI. Features include QR-code provisioning, real-time telemetry, and multiple O&M options.

  • Rugged Rack-Mount Design
    Packaged in a 1U chassis (440×357.6×43.6 mm), weighing ~7.2 kg, this switch is built for durability in demanding environments and backed by a 5-year warranty.

Categories: , Brand:

Technical Specifications

Feature Specification
Ethernet Ports 48×10/100/1000 Mbps PoE / PoE+ / PoE++ (ports 1‑8 support 60 W; 9‑48 support 30 W)
Uplink Ports 4×10 Gbps SFP+
Total PoE Budget Up to 740 W
Switching Capacity 176 Gbps
Forwarding Rate 132 Mpps
MAC Table 16 000 entries
VLAN Support Up to 4,094 VLANs
Routing Protocols Static, RIP, OSPF
Surge Protection 6 kV per port
Layer 2 Features Voice VLAN, ACLs, LAG/LACP, IGMP snooping, Loop prevention
PoE Standards IEEE 802.3af/at/bt
Cooling Dual adaptive fans
Power Input AC 100–240 V
Dimensions 440 × 357.6 × 43.6 mm
Weight (Packaged) ~7.23 kg
Operating Temp/Humidity 0–50 °C; 10–90% RH
Certifications CE, FCC, RoHS
Warranty 5 years
