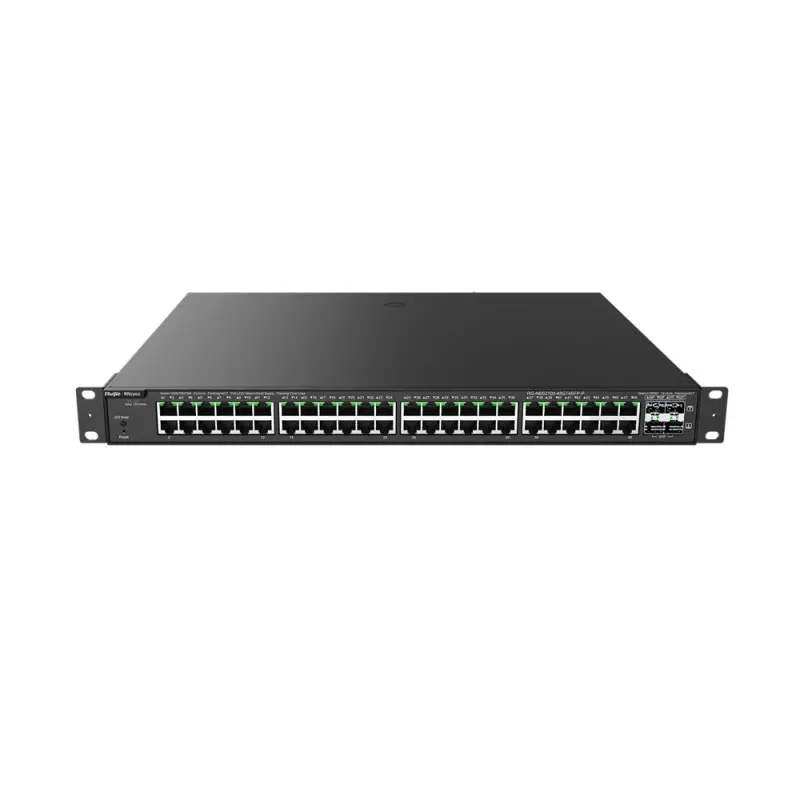

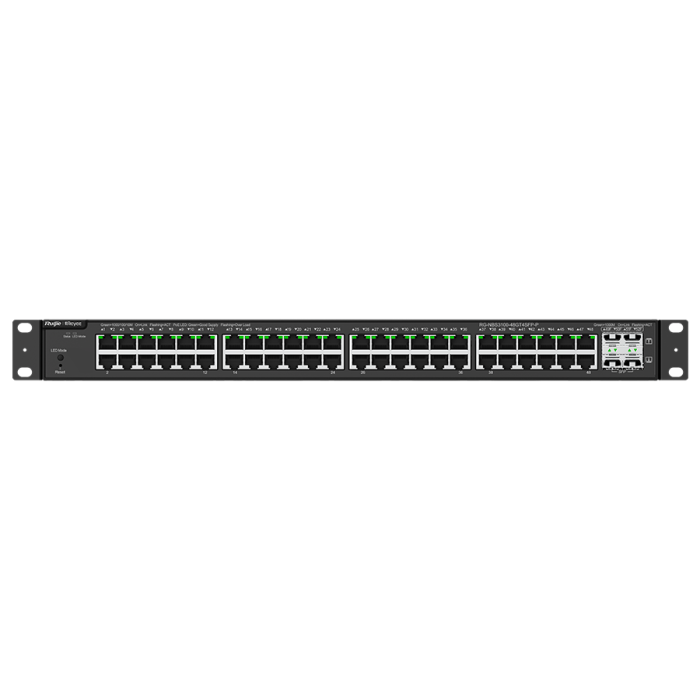

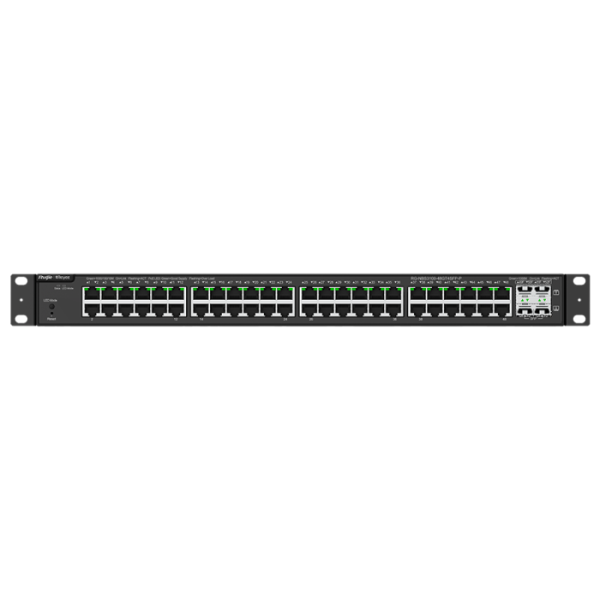

48‑Port PoE+ Gigabit Switch w/ 4×SFP – 104 Gbps, 370 W Budget, Cloud‑Managed
48‑Port PoE+ Gigabit Switch w/ 4×SFP – 104 Gbps, 370 W Budget, Cloud‑Managed - Image 2
,

48‑Port PoE+ Gigabit Switch w/ 4×SFP – 104 Gbps, 370 W Budget, Cloud‑Managed

Efficient Layer 2 PoE+ switch with 48 high-power ports and 4 uplink SFPs. Featuring 370 W total PoE, advanced VLAN, QoS, ACL support, and 6 kV surge suppression. Manage with ease via web interface, Ruijie Cloud/mobile app, or SNMP—perfect for CCTV setups, campus networks, and SMB infrastructures.

Add to quote

  • High‑Power PoE+ & Uplinks
    Equipped with 48 gigabit PoE+ ports delivering up to 30 W each (total 370 W), plus 4 SFP ports for flexible network uplinks.

  • Robust Switching Performance
    Delivers 104 Gbps switching capacity and up to 77.37 Mpps forwarding rate, with a 16,000-entry MAC table and support for up to 4,094 VLANs.

  • Surveillance‑Ready & Secure
    Features IP camera recognition, multiple ACLs, VLAN isolation, STP/RSTP, and 6 kV surge protection—ensuring stable operations in demanding CCTV environments.

  • Cloud-Enabled Management
    Fully manageable via web UI, SNMP v1/2c/3, and Ruijie Cloud mobile app. Offers zero-touch provisioning with QR auto-discovery for fast deployment.

  • Quiet, Rack-Mountable Design
    Housed in a sleek 1U chassis with side-to-rear airflow, dual automatic fans, and low noise. Compact 440×357.6×43.6 mm footprint, weighing 5.4 kg.

  • Trusted Build & Warranty
    Rated for MTBF >200,000 h, backed by a 5-year warranty, and certified to CE/RoHS—ideal for long-term deployments.

Categories: , Brand:

Technical Specifications

Feature Specification
Ports 48×10/100/1000 Mbps PoE+ RJ45, 4×1 Gb SFP
PoE Budget 370 W (Max 30 W/port)
Switching Capacity 104 Gbps
Forwarding Rate 77.37 Mpps
MAC Table 16,000 entries
VLAN Support Up to 4,094 VLANs
Surge Protection 6 kV per PoE port
Fan Cooling Dual automatic, side‑to‑rear airflow
Energy-Efficient Ethernet ✔ Yes
Layer 2 Features VLAN, STP/RSTP, IGMP snooping, ACLs, LAG/LACP, DHCP snooping, IP–MAC binding, camera recognition
Management Web UI, Ruijie Cloud/app, SNMP
Jumbo Frame 9,216 bytes
Certifications CE, RoHS
Operating Temp 0 °C to 50 °C
Humidity 10–90% RH (non‑condensing)
Dimensions 440 × 357.6 × 43.6 mm
Weight (Packaged) ~5.4 kg
MTBF > 200,000 hours
Warranty 5 years
