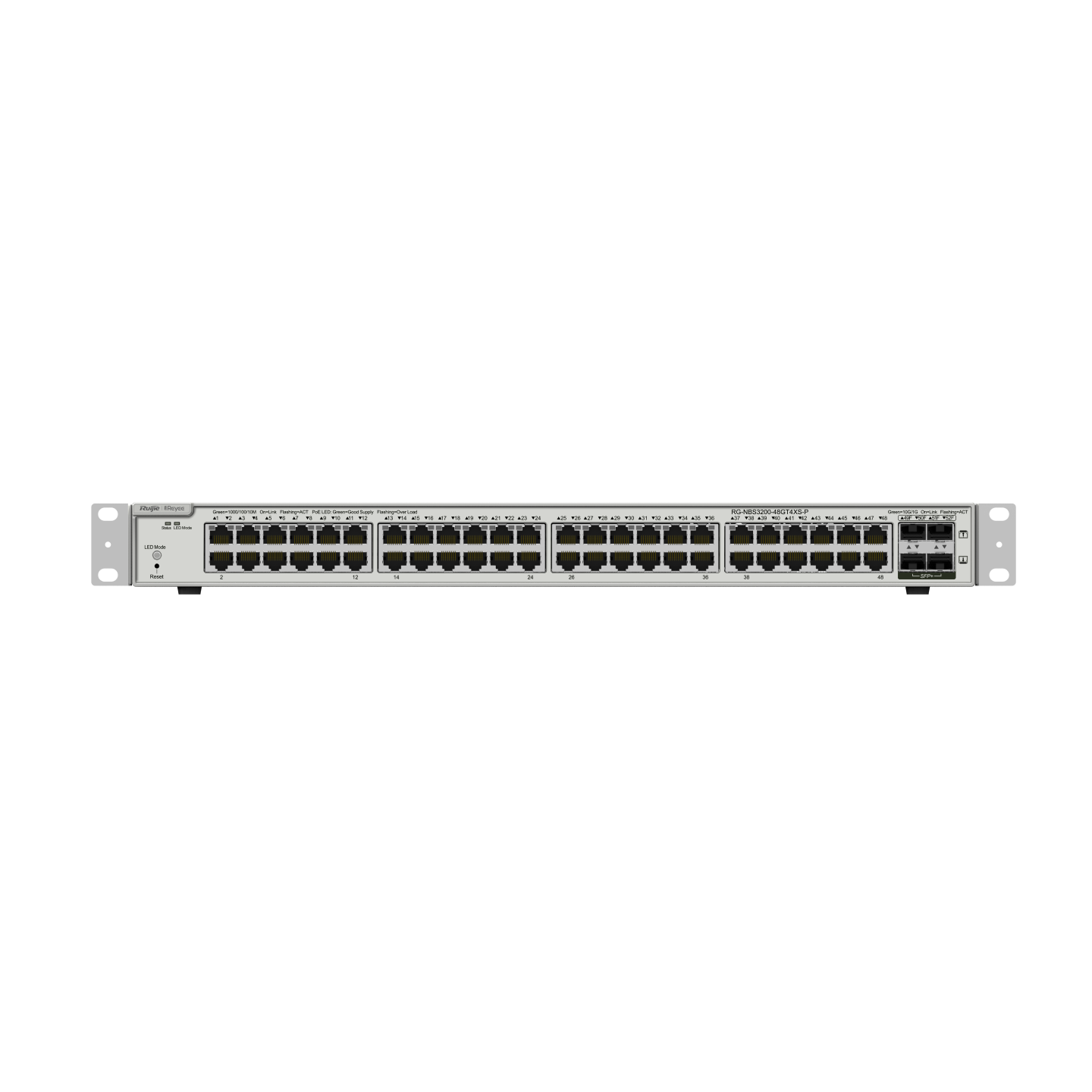

48‑Port Gigabit PoE+ Switch with 4×10G SFP+ – 370 W, Cloud‑Managed

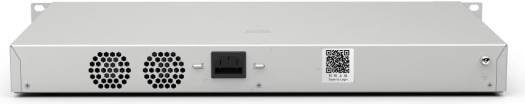

48‑Port Gigabit PoE+ Switch with 4×10G SFP+ – 370 W, Cloud‑Managed - Image 2

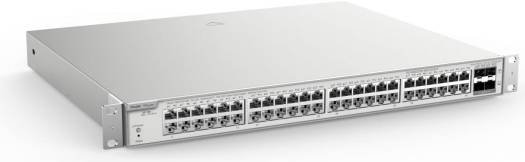

48‑Port Gigabit PoE+ Switch with 4×10G SFP+ – 370 W, Cloud‑Managed - Image 3

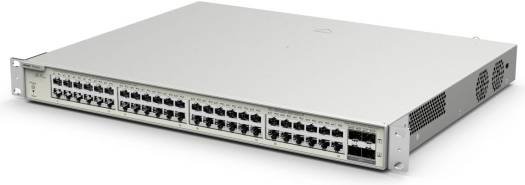

48‑Port Gigabit PoE+ Switch with 4×10G SFP+ – 370 W, Cloud‑Managed - Image 4
,

48‑Port Gigabit PoE+ Switch with 4×10G SFP+ – 370 W, Cloud‑Managed

High-performance Layer 2 switch with 48 PoE+ ports, 4×10G SFP+ uplinks, and a 370 W power budget. Supports VLANs, QoS, ACL, and 6 kV surge protection. Managed via web, mobile app, or Ruijie Cloud—ideal for surveillance networks, campuses, and SMB backbones.

Add to quote

  • Scalable PoE & Connectivity
    Supports up to 370 W total PoE power (802.3at/af), with all 48 RJ45 ports delivering up to 30 W each, plus 4×10 Gbps SFP+ uplinks for high-throughput backbone integration.

  • High Switching Performance
    Boasts a 176 Gbps switching capacity and 130.95 Mpps forwarding rate, with a 16 Mbit buffer and 16,000 MAC entries, supporting up to 4,094 VLANs.

  • Advanced Layer 2 Features & Security
    Includes VLAN segmentation, STP/RSTP, IGMP snooping, LAG/LACP, ACLs, DHCP snooping, IP–MAC binding, and rogue detection. Offers 6 kV surge protection per port to ensure stability in harsh environments.

  • Energy-Efficient & Quiet Design
    Embedded Energy Efficient Ethernet (EEE) adjusts port power dynamically when idle. A single fan with side-to-rear airflow keeps noise low, making it suitable for office or control-room setups.

  • Cloud-Enabled Remote Management
    Manage remotely via web UI, Ruijie Cloud platform/app, or SNMP. Zero-touch provisioning with QR-code auto-onboarding simplifies mass deployment and remote monitoring.

  • Robust & Rack-Friendly Build
    Compact 1U rack-mount chassis (440×357.6×43.6 mm), weighing ~5.4 kg (packaged). Designed for continuous operation (0–50 °C, 10–90% RH), MTBF >200,000 hours, and backed by a 5-year warranty.

Categories: , Brand:

Technical Specifications

Feature Specification
Ports 48×10/100/1000 Mbps RJ45 PoE+; 4×10 Gbps SFP+ uplinks
PoE Budget 370 W total (up to 30 W per port)
Switching Capacity 176 Gbps
Forwarding Rate 130.95 Mpps
MAC Address Table 16,000 entries
VLANs Supported Up to 4,094
Packet Buffer 16 Mbit
Surge Protection 6 kV per port
Energy Saving (EEE) Yes
Fan & Cooling Single fan, side-to-rear airflow
Jumbo Frame Up to 9,216 bytes
Layer Type Layer 2
Link Aggregation Up to 16 groups, 8 ports each (LACP)
Security Features ACLs, 802.1X, DHCP snooping, IP–MAC binding, loop guard
Management Interfaces Web UI, Ruijie Cloud/App, SNMP
Dimensions (W×D×H) 440 × 357.6 × 43.6 mm
Weight (Packaged) ~5.4 kg
Operating Temp/Humidity 0–50 °C, 10–90% RH
MTBF >200,000 h
Warranty 5 years
Certifications CE, FCC, RoHS
