Efficient Power & Connectivity
Provides 24 gigabit PoE+ ports delivering up to 30 W each (total 370 W) and four 10 Gbps SFP+ uplinks, enabling scalable deployment of IP devices. -
Layer 3 Routing & High Throughput
Offers static routing, RIP, and OSPF support with a robust 128 Gbps switching capacity and 96 Mpps forwarding rate for smooth core integration. -
Advanced Security & Network Policies
Includes ACLs, 802.1X, DHCP snooping, IP‑MAC binding, VLAN segmentation, STP/RSTP, LAG/LACP, IGMP snooping, and IP camera detection for secure, managed connectivity. -
Cloud-Ready Management & Diagnostics
Enables remote administration via Ruijie Cloud/mobile app, cloud/web UI, and SNMP. Features zero-touch activation via QR, and real-time PoE power usage monitoring. -
Reliable Build & Enhanced Cooling
Packaged in a 1U rack-mount chassis with PWM-controlled fan for reduced noise. Offers 6 kV surge protection and an MTBF over 200,000 hours, backed by a 5-year warranty.

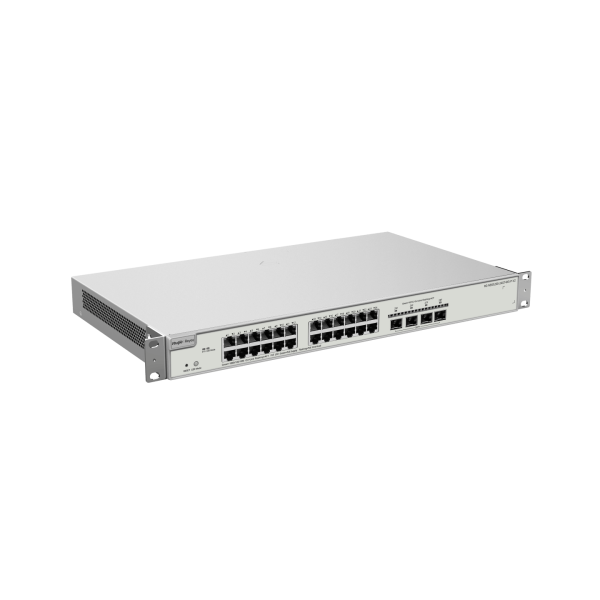

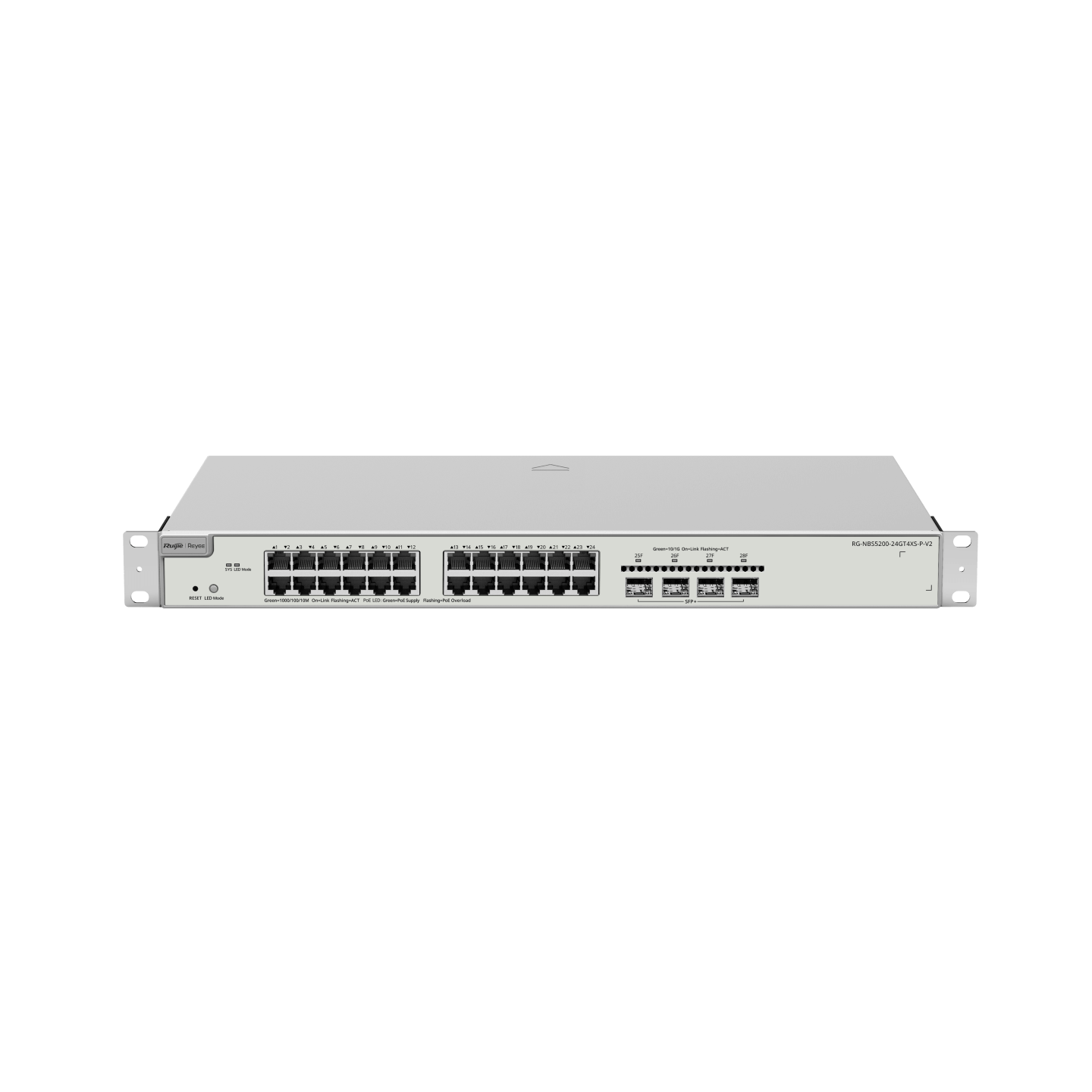

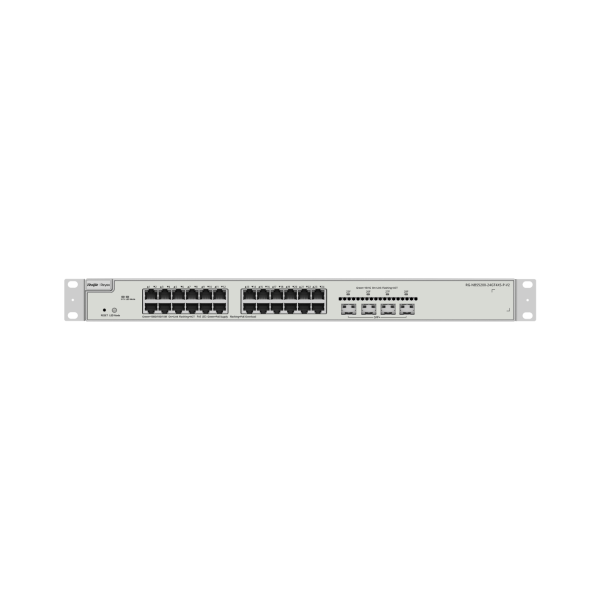

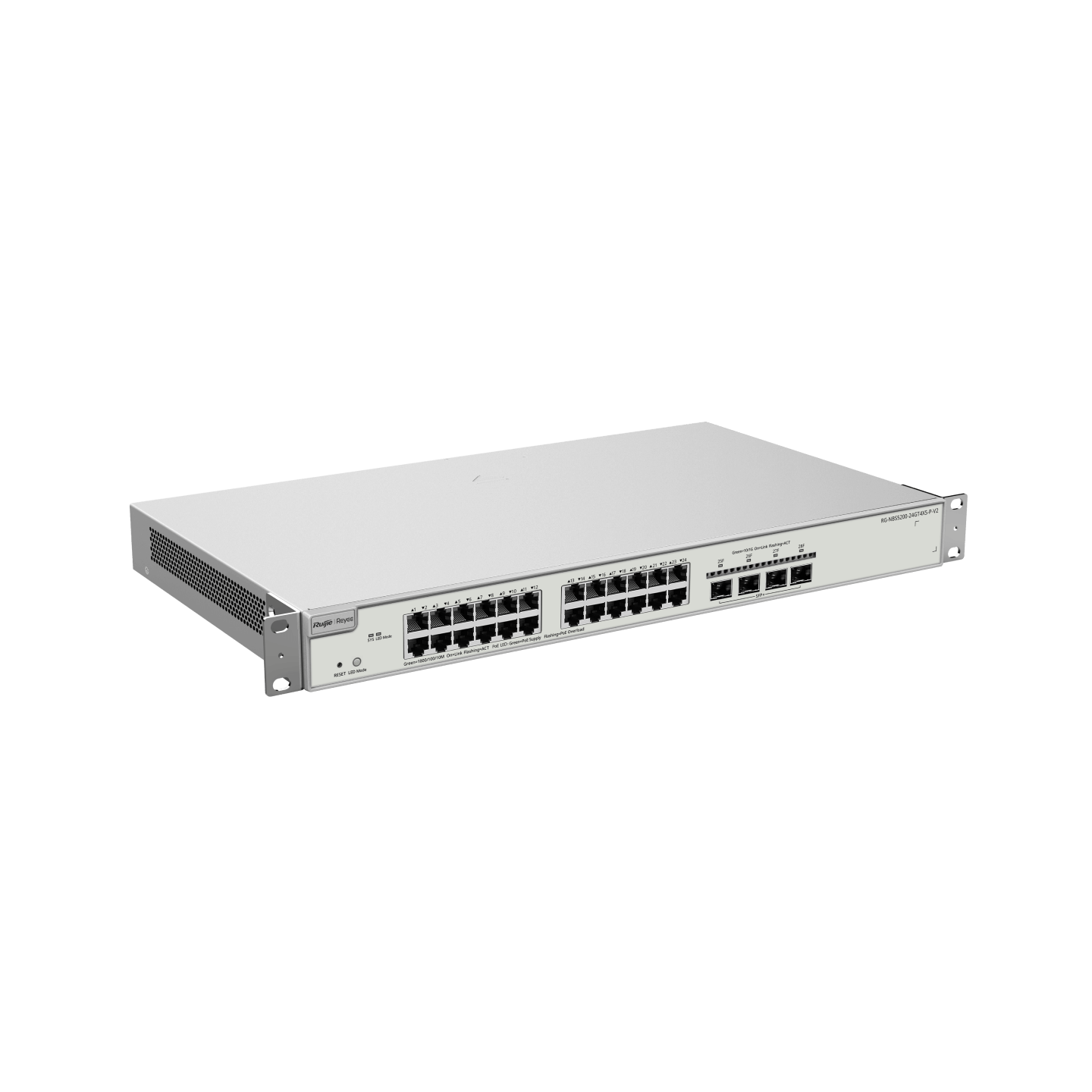

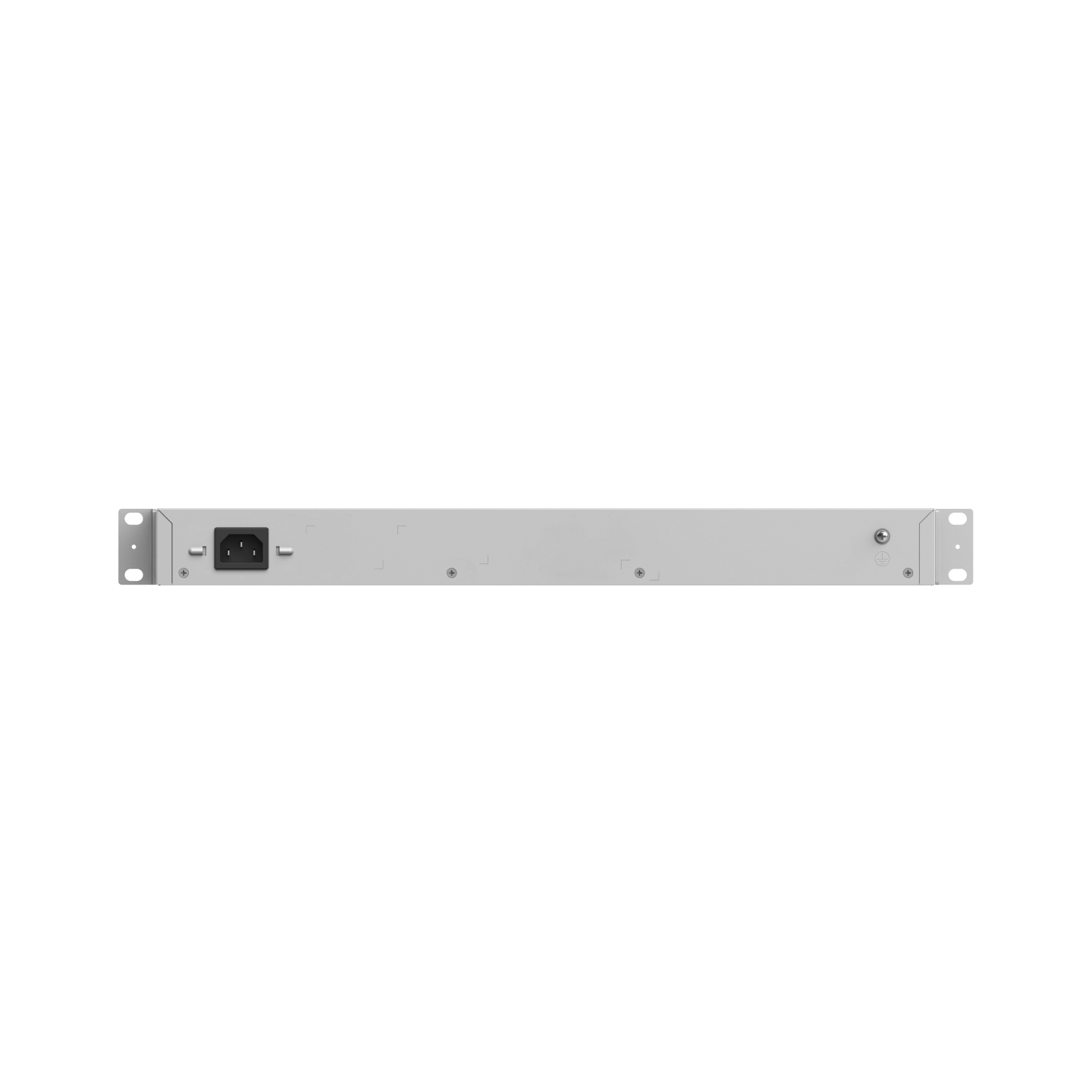

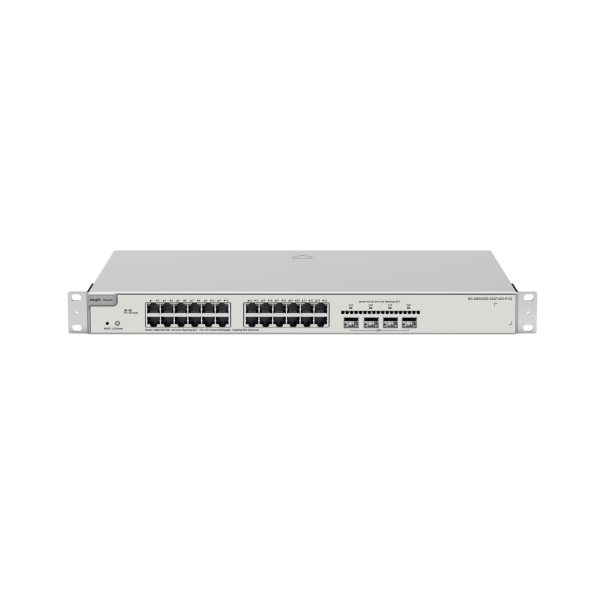

24‑Port PoE+ Layer 3 Switch – 4×10G SFP+, 370 W, Cloud-Managed
High-efficiency Layer 3 switch with 24 Gigabit PoE+ ports (370 W budget), 4×10 Gbps uplinks, and 128 Gbps switching capacity. Supports routing and security protocols, hot-swappable design, digital power meters, and zero-touch cloud/web/SNMP management—ideal for VoIP, CCTV, and smart office deployments.
Technical Specifications
| Feature | Specification |
|---|---|
| Ports | 24×1 Gb RJ45 PoE+ (802.3af/at), 4×10 Gb SFP+ |
| Total PoE Budget | 370 W (up to 30 W/port) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Table Size | 16,000 entries |
| VLAN Support | Up to 4,094 VLANs |
| Routing | Static, RIP, OSPF |
| Packet Buffer | 12 Mbit |
| Surge Protection | 6 kV per PoE port |
| Power Consumption | ≤ 432 W max |
| Fan Cooling | PWM fan for quieter operation |
| Dimensions | 440×357.6×43.6 mm, 4.5 kg |
| Operating Temperature | 0–50 °C |
| Warranty & Reliability | MTBF >200,000 h, 5 years |
