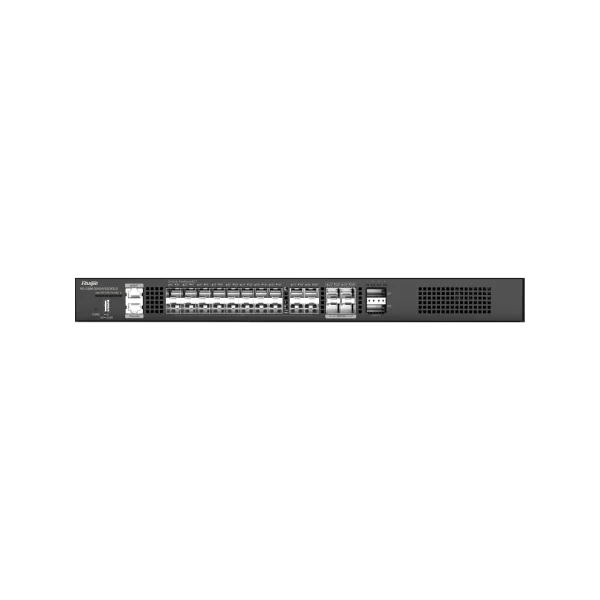

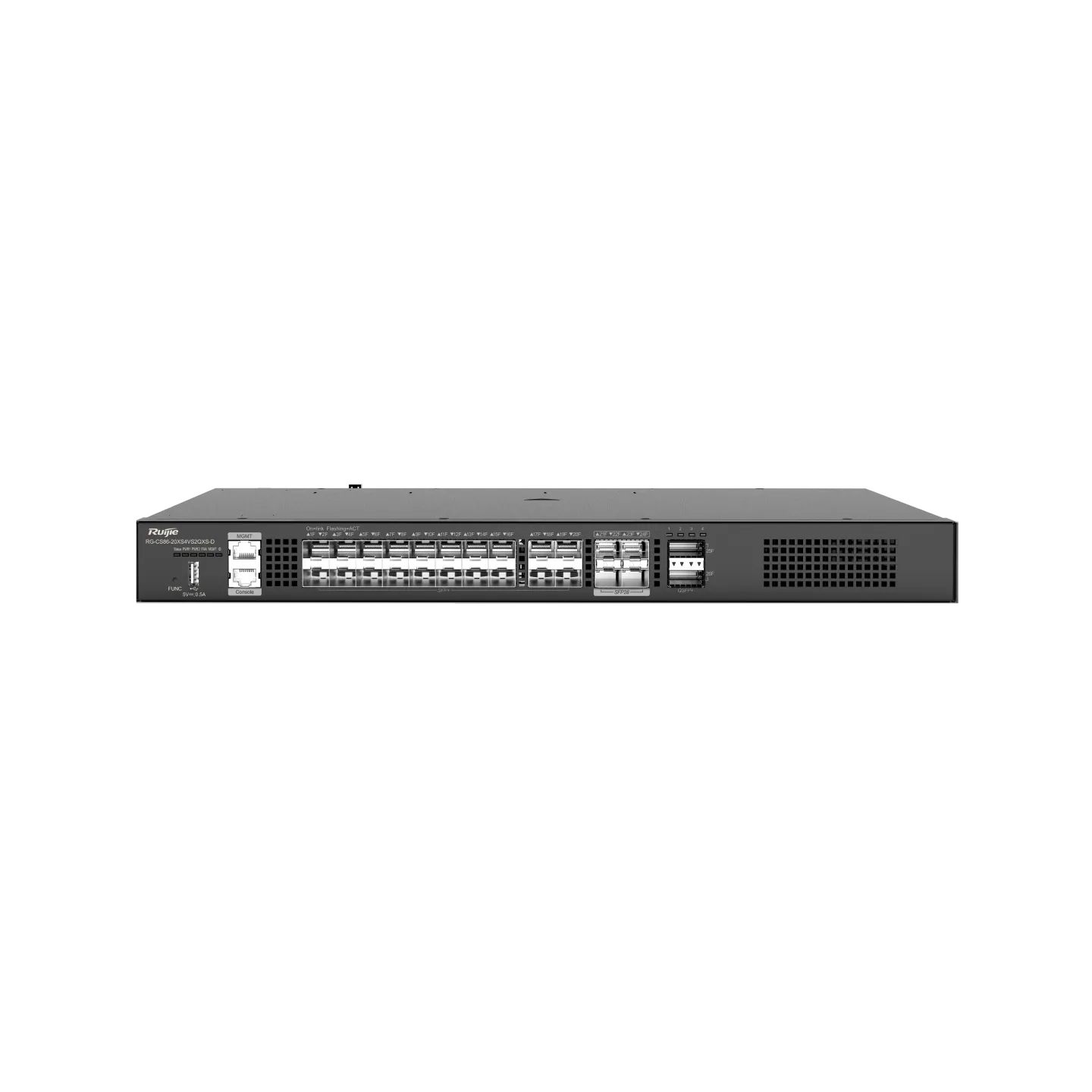

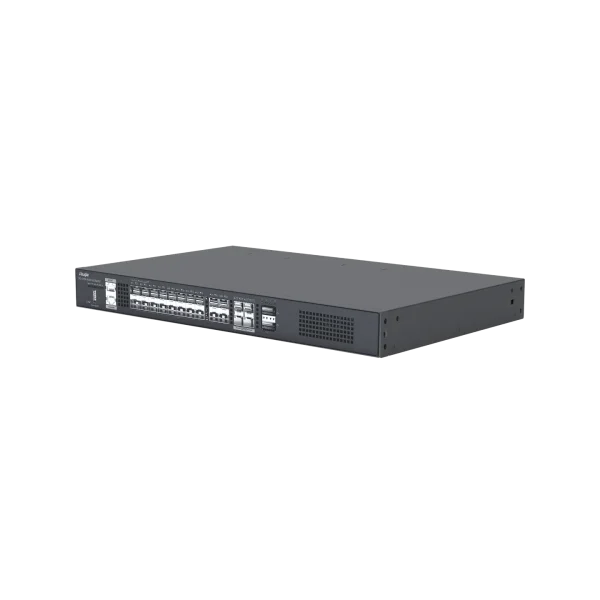

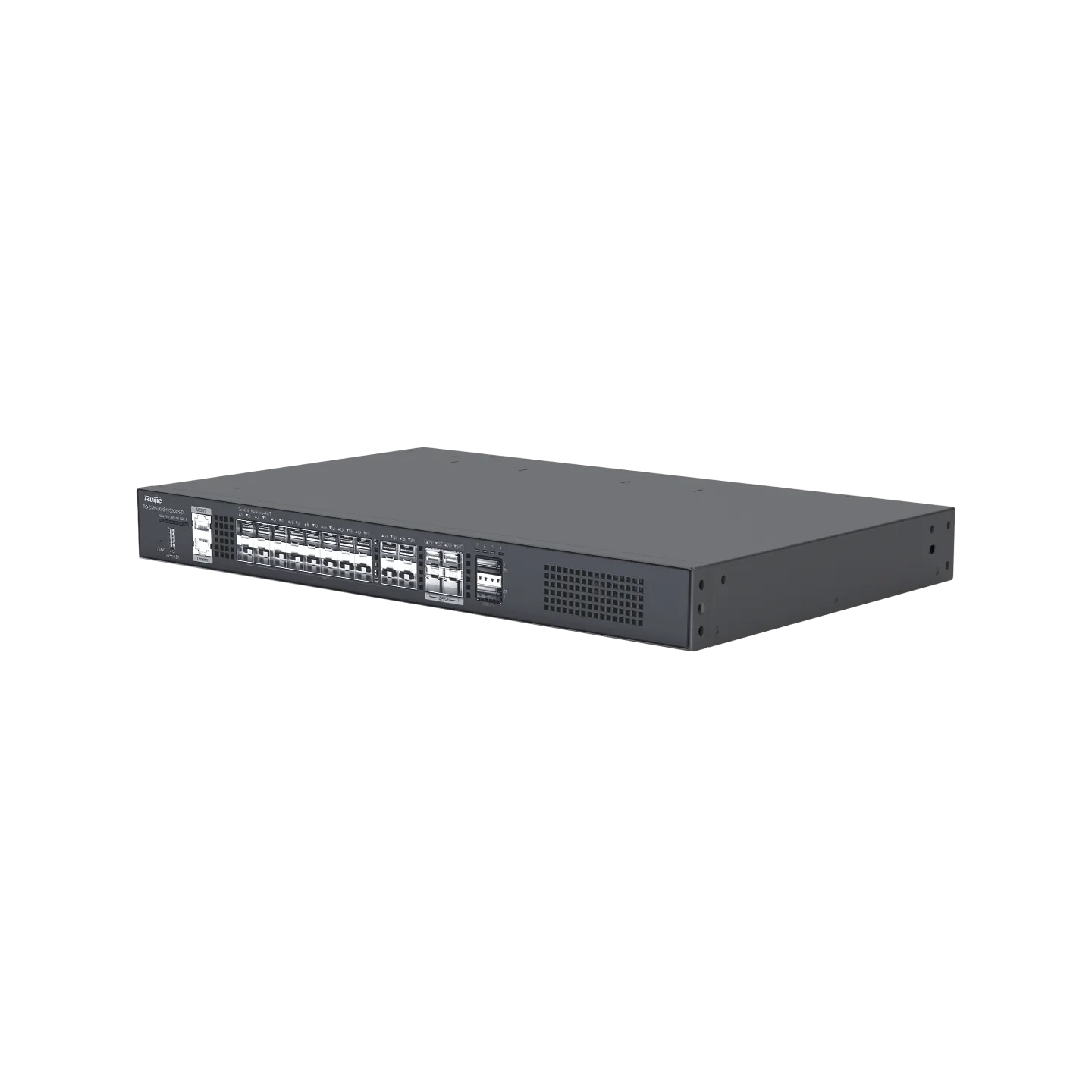

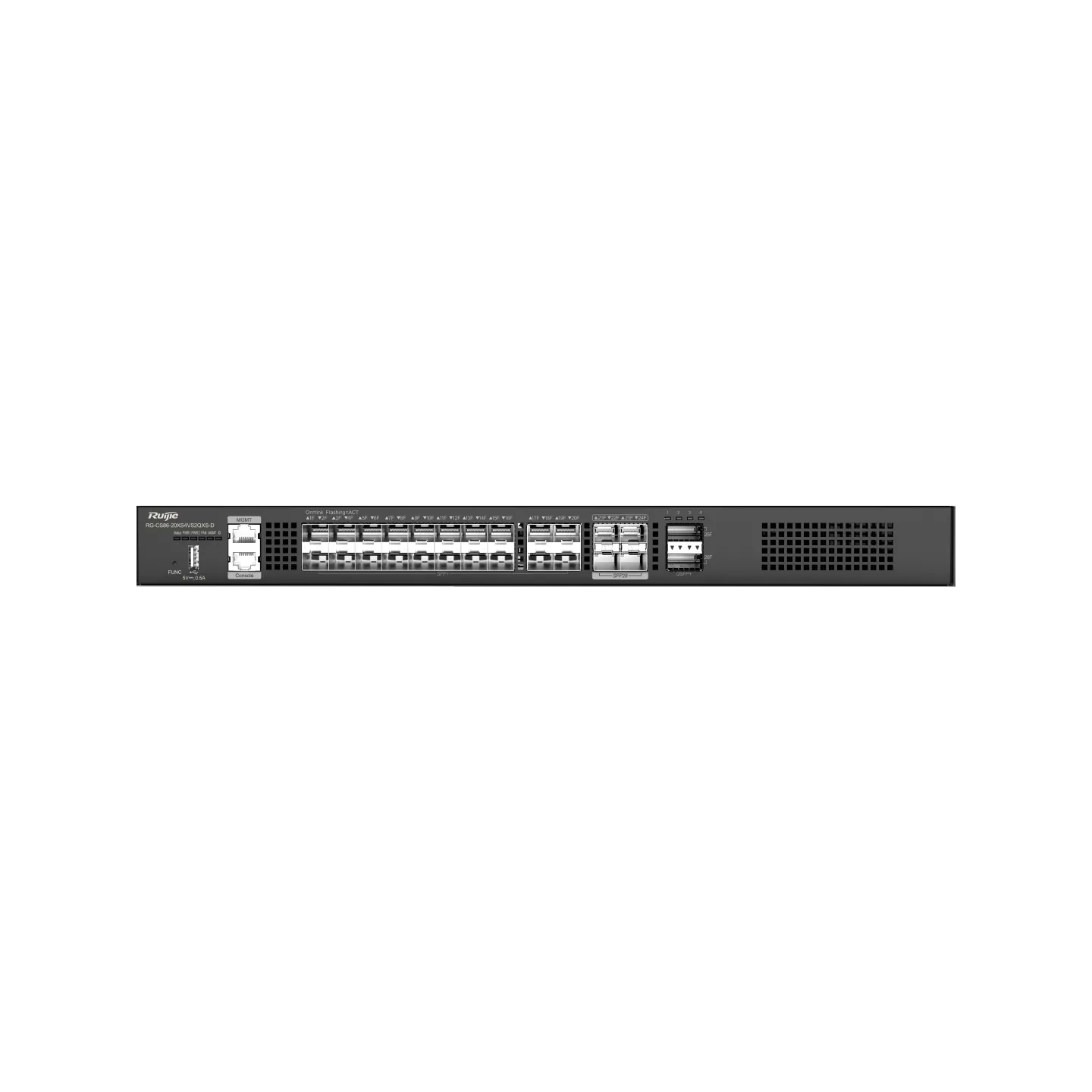

20×10GE + 4×25GE + 2×40GE Layer 3 Campus Switch – 760 Gbps, VSU, Redundant
20×10GE + 4×25GE + 2×40GE Layer 3 Campus Switch – 760 Gbps, VSU, Redundant - Image 2
20×10GE + 4×25GE + 2×40GE Layer 3 Campus Switch – 760 Gbps, VSU, Redundant - Image 3
20×10GE + 4×25GE + 2×40GE Layer 3 Campus Switch – 760 Gbps, VSU, Redundant - Image 4
,

20×10GE + 4×25GE + 2×40GE Layer 3 Campus Switch – 760 Gbps, VSU, Redundant

Compact 1U Layer 3 switch delivering 20×10/2.5/10GE, 4×25GE, and 2×40GE uplinks with 760 Gbps switching capacity and 570 Mpps throughput. Features VSU clustering, rich IPv4/IPv6 routing, Zero‑touch deployment, and multi-layer security in a redundant-power, modular-fan design.

Add to quote

High-Density Multi-Rate Ports
Equipped with 20 10GE SFP+ ports (also compatible with 2.5GE), 4 25GE SFP28, and 2 40GE QSFP+ uplinks for flexible campus or aggregation topologies.

VSU Virtualization & Fast Failover
Combines multiple physical switches into a single logical unit via high-speed links. Millisecond-level failover and auto-scaling simplify management while boosting reliability.

Carrier-Grade Routing & Protocols
Supports IPv4/IPv6 dual-stack, static routing, RIP, OSPF, IS-IS, and BGP (including IPv6 variants). Offers ECMP, VRF, ACL, QoS, VXLAN, multicast, and advanced congestion management.

Security & Telemetry
Includes DHCP snooping, IP/MAC binding, ARP protection, CPU shielding, NFPP, SSHv2, SNMPv3, and encrypted management protocols. Real-time telemetry supports proactive monitoring.

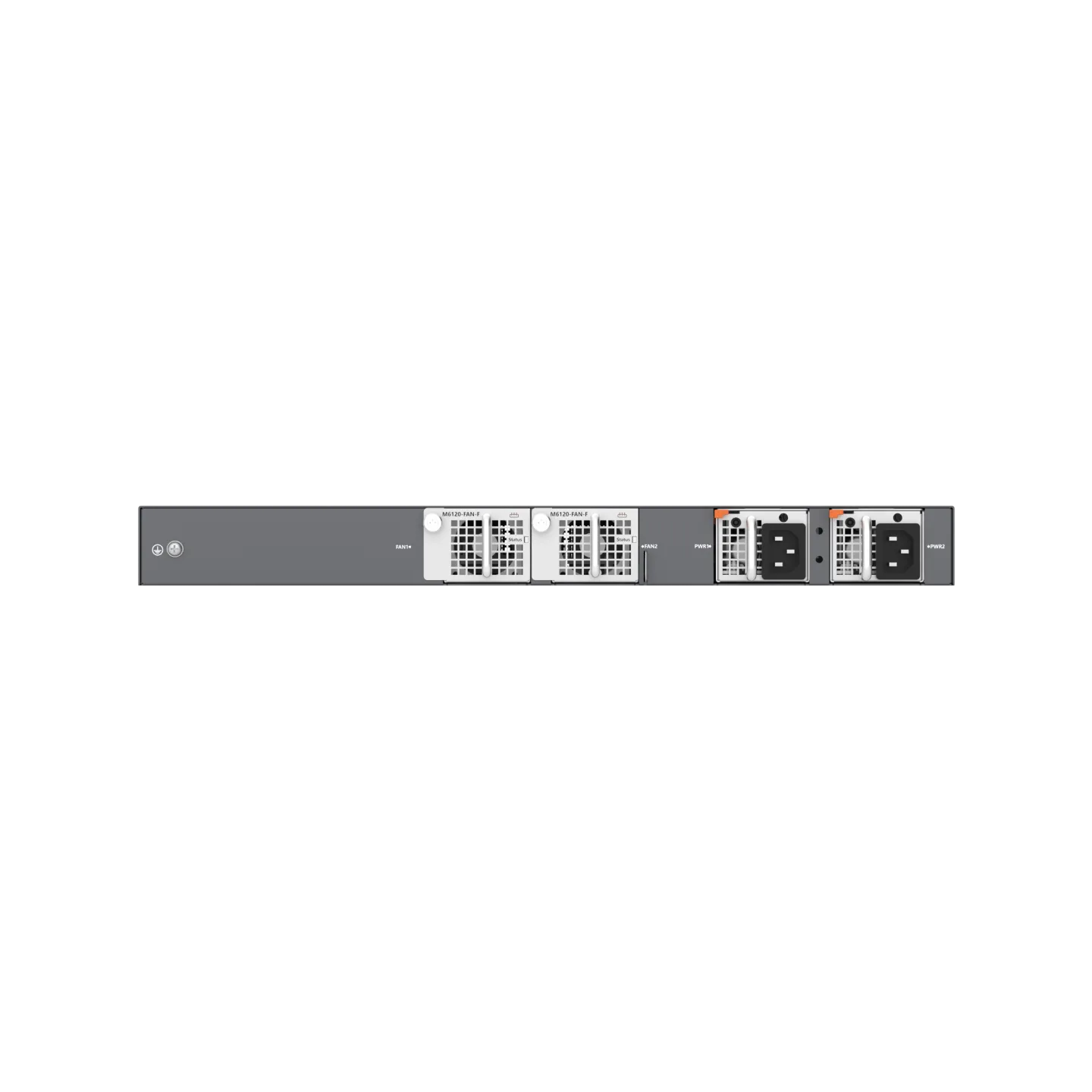

Hot-Swappable & High Availability
Redundant 1+1 hot-swappable power modules and 5+1 fan trays with airflow alarms ensure non-stop operation. Supports ERPS, VRRP, RLDP, and BFD.

Enterprise VLAN & QoS Controls
Supports 4,094 VLANs, private/Super/Basic QinQ, voice VLAN, MSTP, LACP, ERPS, IGMP snooping, and per-port policing for traffic segmentation and QoS.

Cloud & Modular Management
Manage locally via Web UI, CLI, SNMP, or remotely via Ruijie Cloud/mobile app. Plug-and-play deployment, auto-discovery, syslog, RMON, sFlow, NTP/TR-069, NETCONF, gRPC.

Categories: , Brand:

Technical Specifications

Feature Specification
Ports 20×10GE SFP+ (also 2.5GE), 4×25GE SFP28, 2×40GE QSFP+
Switching Capacity 760 Gbps
Forwarding Rate 570 Mpps
VSU Members Up to 2
MAC Table 32,768 entries
IPv4/IPV6 Routes 16K / 2K unicast, 4K / 16K multicast
ACL Entries (In/Out) 2,500 / 1,000
Fan / Power Redundancy 2 fans, 2 power slots, modular, hot-swappable
Dimensions / Weight 440×330×43.6 mm, 4.6 kg
Buffer / Memory 4 MB packet buffer, 1 GB SDRAM, 1 GB Flash
Surge Protection 6kV power, 10kV service, 4kV management ports
Operating Conditions 0–50 °C, 10–90% RH, -40 to 70°C storage
Certifications IEC 62368-1, CE, FCC, RoHS, IP40
