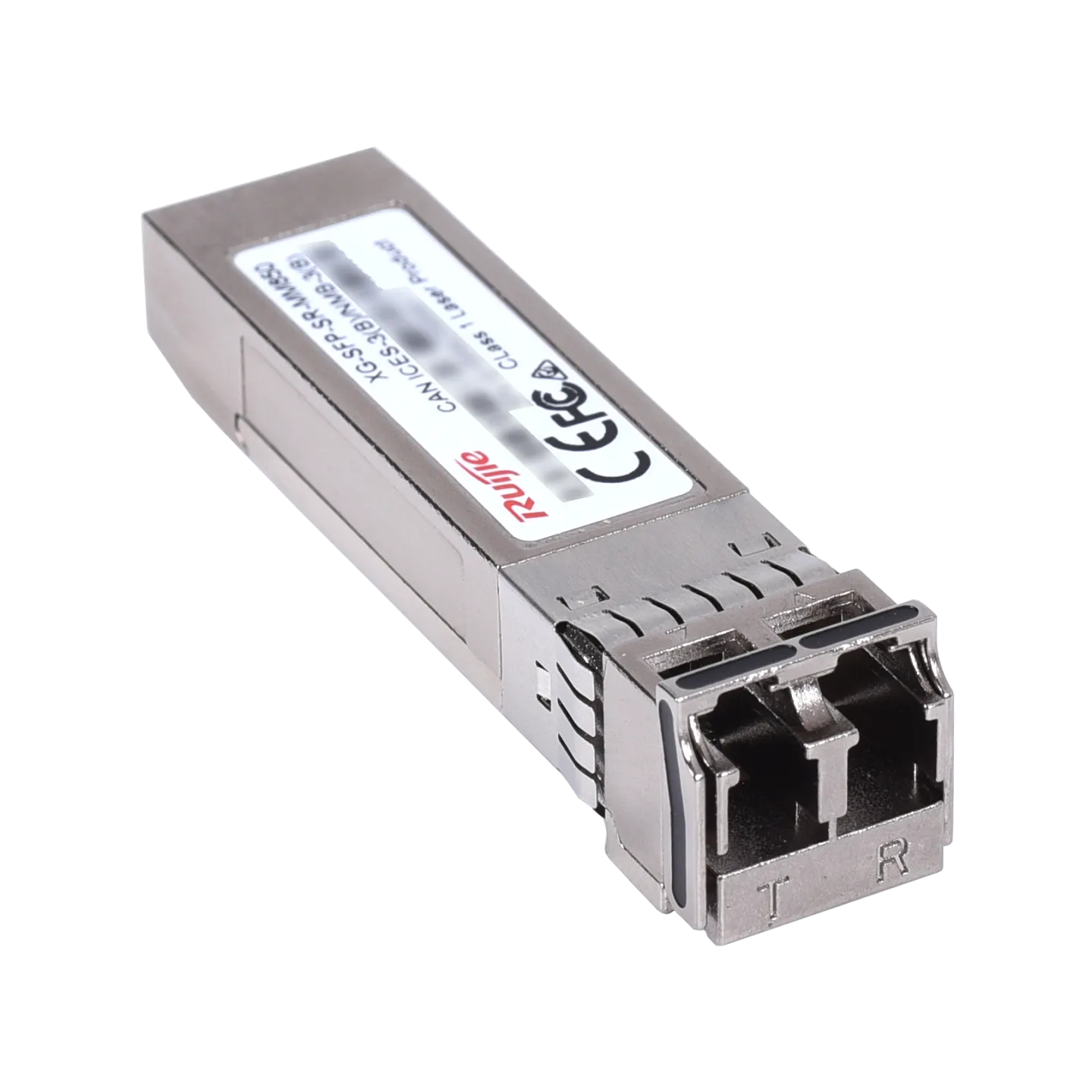

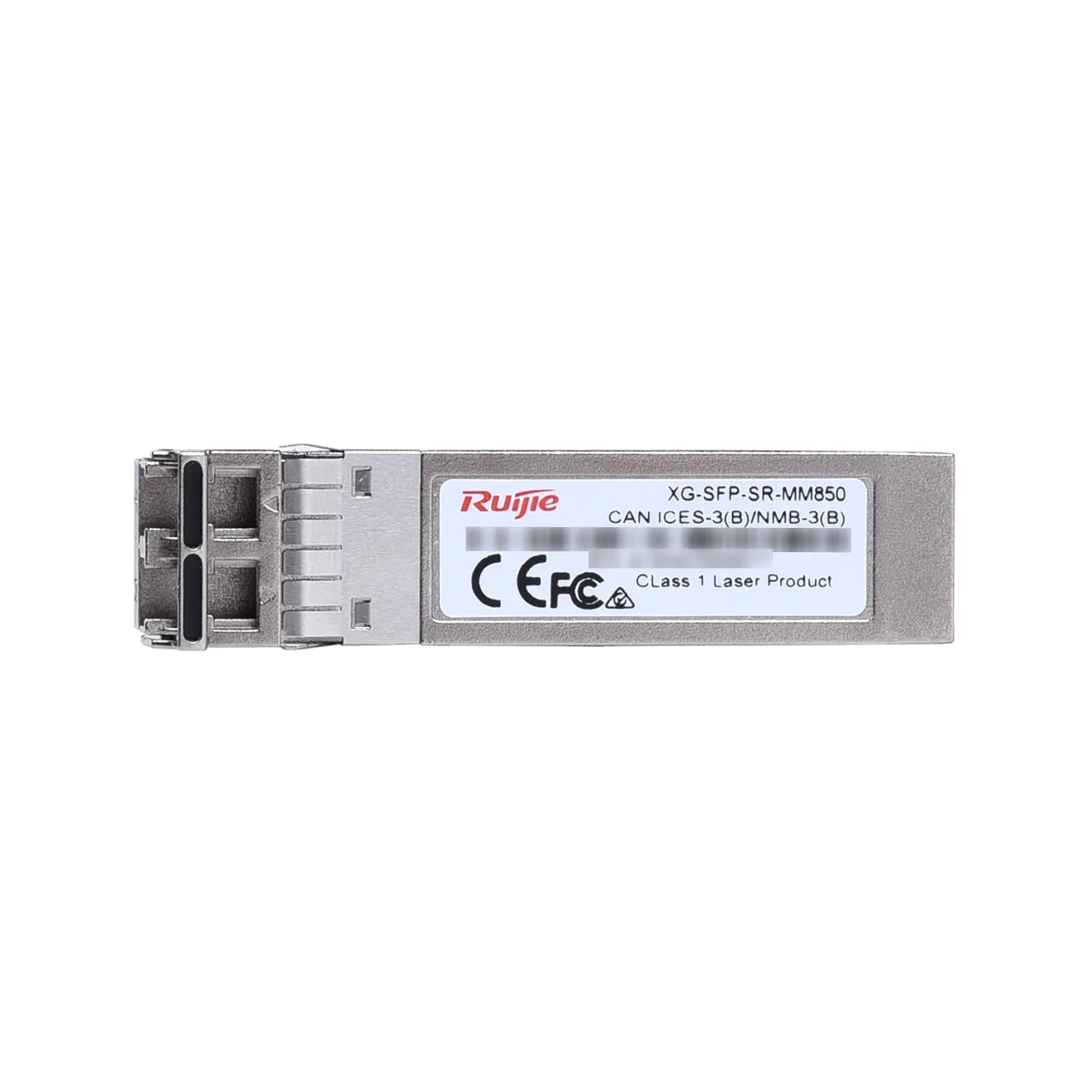

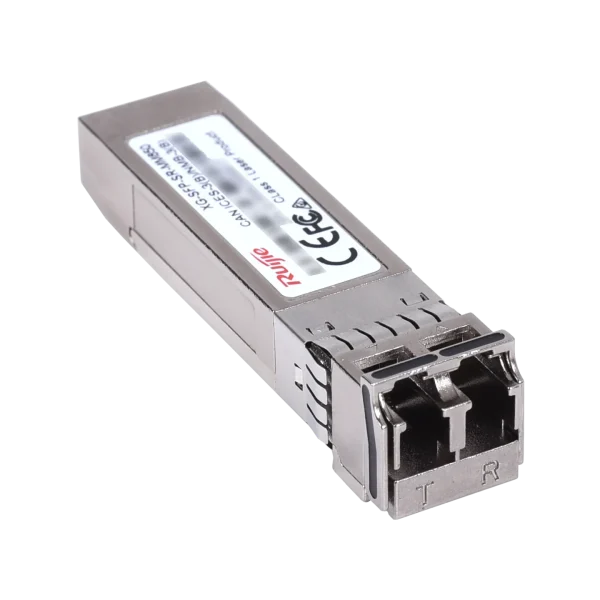

10 G SFP+ MMF Transceiver – 850 nm, 300 m (OM3) / 400 m (OM4), DOM Support

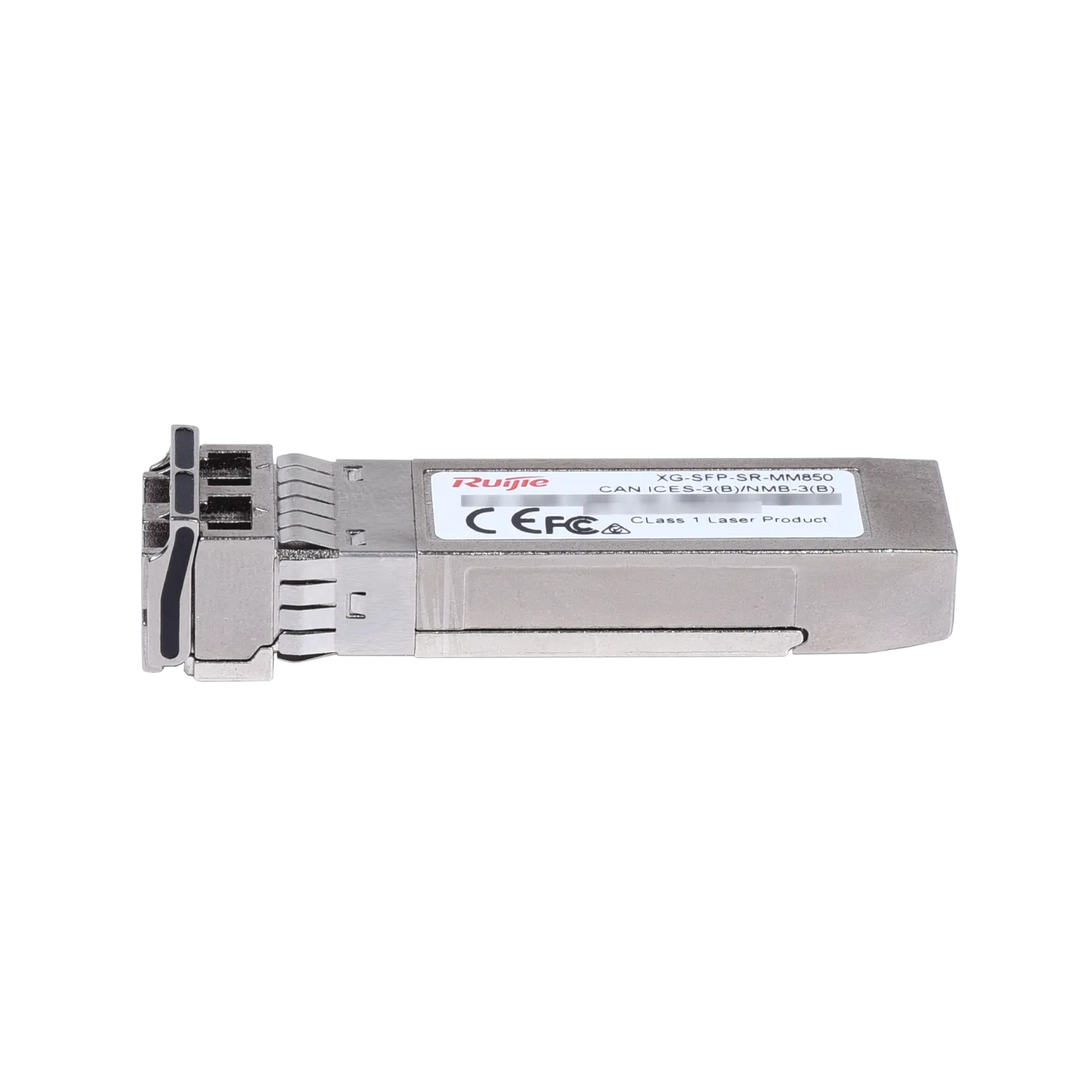

10 G SFP+ MMF Transceiver – 850 nm, 300 m (OM3) / 400 m (OM4), DOM Support - Image 2

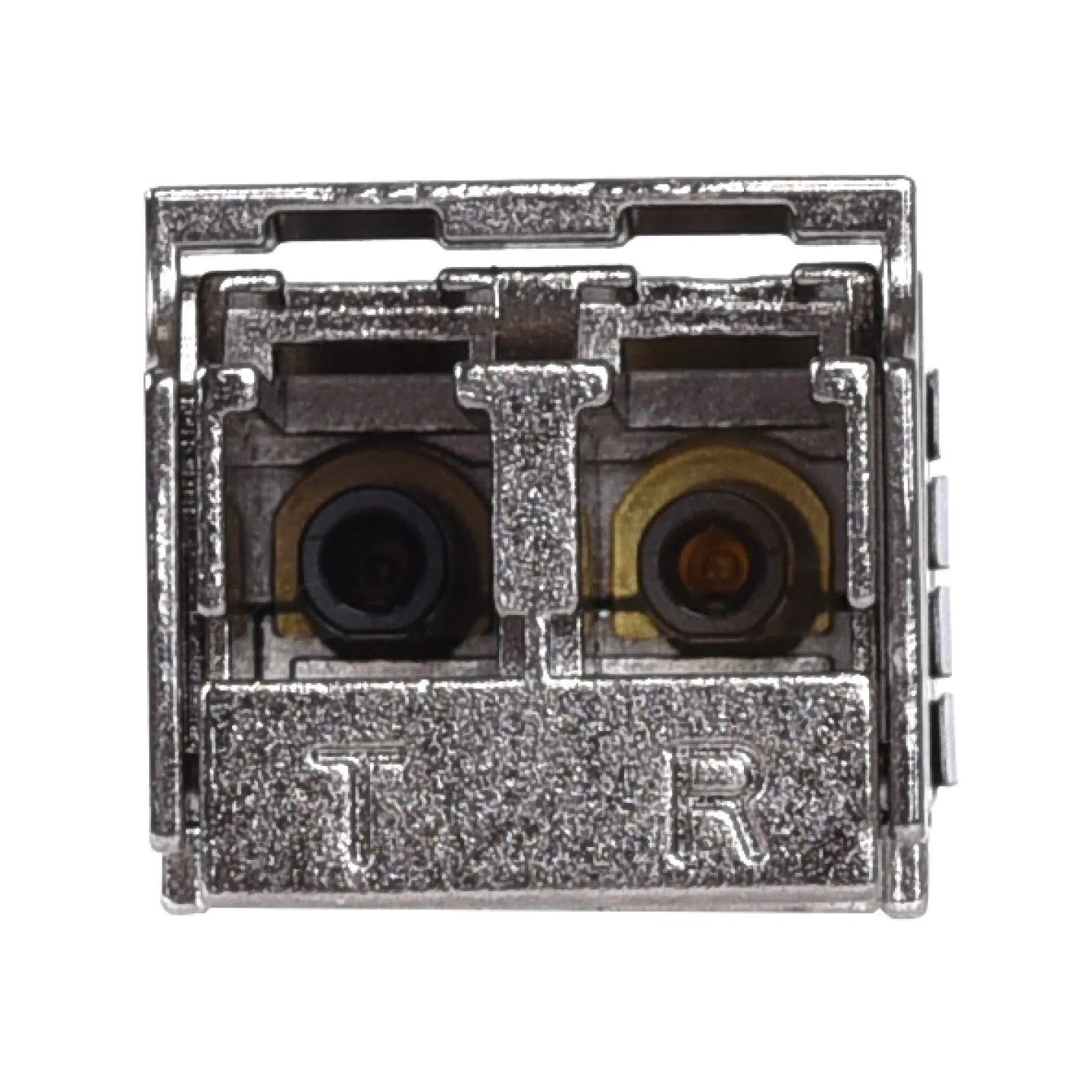

10 G SFP+ MMF Transceiver – 850 nm, 300 m (OM3) / 400 m (OM4), DOM Support - Image 3

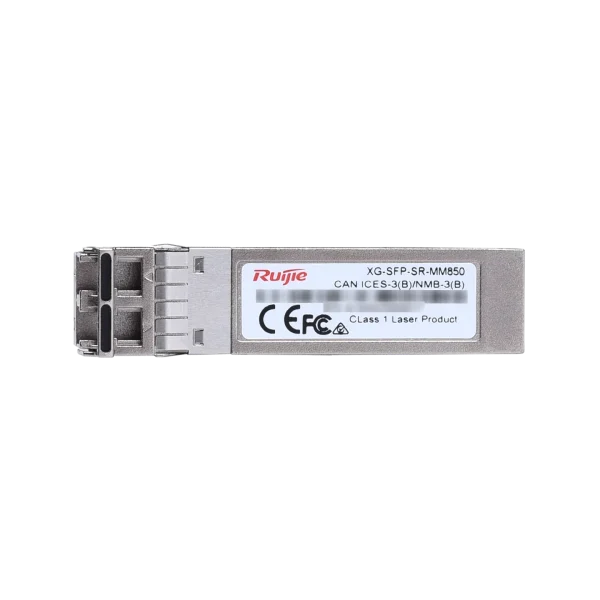

10 G SFP+ MMF Transceiver – 850 nm, 300 m (OM3) / 400 m (OM4), DOM Support - Image 4
,

10 G SFP+ MMF Transceiver – 850 nm, 300 m (OM3) / 400 m (OM4), DOM Support

Reliable 10 G SFP+ module with a duplex LC connector, operating at 850 nm for up to 300 m (OM3) or 400 m (OM4) range. Features low power use, digital optical monitoring, and ensures smooth integration in cloud‑managed and enterprise environments.

Add to quote

  • Optimized for Short-Range Fiber Links
    Operates at 850 nm wavelength, perfectly suited for multimode fiber networks. Delivers dependable 10.3125 Gbps throughput over OM3/OM4 cables for up to 400 m.

  • Plug-and-Play SFP+ Design
    Scalable SFP+ form factor features hot-swappable technology, drawing under 1.5 W of power—ideal for dynamic installations.

  • Digital Optical Monitoring (DOM)
    Offers real-time diagnostics for optical power, temperature, and voltage—helping you proactively identify connectivity issues.

  • Industry-standard Compliance
    Meets IEEE 802.3ae and SFF-8431 standards, and adheres to SFP+ MSA and RoHS compliance, delivering broad compatibility and regulatory assurance.

  • Durable and Environmentally Resilient
    Compact unit weighs ~35 g, tolerates 0–70 °C operating range, and includes Class 1 laser safety—built for reliable performance.

Categories: , Brand:

Technical Specifications

Specification Details
Form Factor SFP+
Data Rate 10.3125 Gbps
Wavelength 850 nm
Max Reach (OM3/OM4) 300 m / 400 m
Connector Duplex LC
Fiber Type Multimode (MMF)
Transmit Power (Avg) –7.3 dBm to –1 dBm
Receiver Sensitivity < –11.1 dBm
Power Consumption ≤ 1.5 W
DOM Supported
Compliance IEEE 802.3ae, SFF-8431, SFP+ MSA, RoHS, Class 1 Laser
Weight ≈ 35 g
Operating Temp 0 °C to 70 °C
Storage Temp/Humidity –40 °C to 85 °C; 10–90 % RH
